500x500mm Scrap Tire Rubber Floor Tile Machine Production Line

500x500mm Scrap Tire Rubber Floor Tile Machine Production Line photo-1
500x500mm Scrap Tire Rubber Floor Tile Machine Production Line photo-2
500x500mm Scrap Tire Rubber Floor Tile Machine Production Line photo-3
500x500mm Scrap Tire Rubber Floor Tile Machine Production Line photo-4

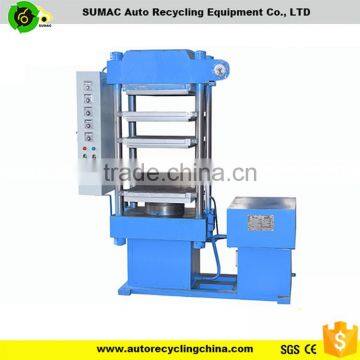

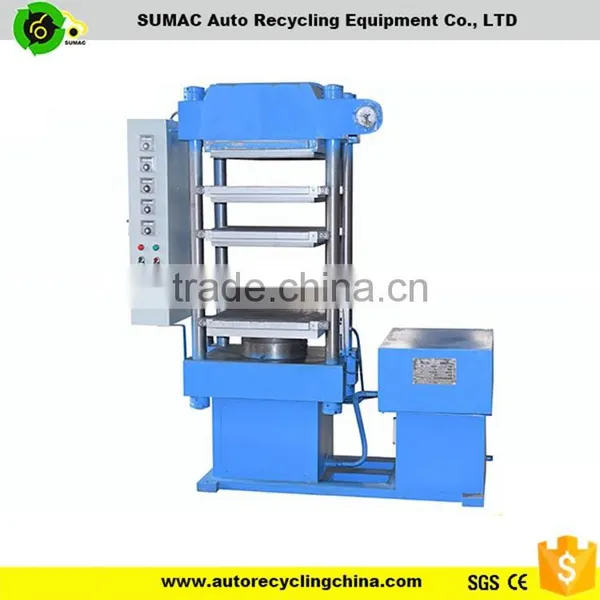

500x500mm Scrap Tire Rubber Floor Tile Machine Production Line photo-5

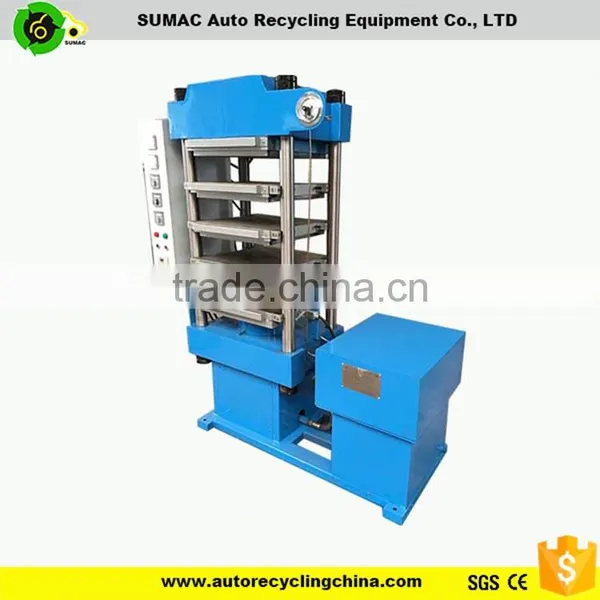

500x500mm Scrap Tire Rubber Floor Tile Machine Production Line photo-6
US$ 3,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SUMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name SUMAC
Model Number XLB-D 550X550
Voltage Request
Power(W) 23KW
Dimension(L*W*H) 1700X700x2100mm
Weight 2000kg
Certification ISO9001 CE
Warranty 13Month
After-sales Service Provided Engineers available to service machinery overseas

 500x500mm scrap tire rubber floor tile machine production line



Introduction

Rubber tile press machine is used to make various types of floor tiles with different dimension and shape as you required.With one set vulcanizing machine,we can make many types tiles only by changing the moulds.

Parameter

ModelXLB-D 550×550
Max pressure50 Ton
Heating plate550×550 mm
Product size500×500 mm
layer distance150~180 mm
Working layer4 layers
Dia plungerΦ200 mm
Plinger stroke450 mm
Total power23 kw
Plate temperature≤200℃



Flow chart of rubber floor tile making machine


Mixing:

Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive, then begin stiring. It will take 4-6 mins to be done.

500x500mm scrap tire rubber floor tile machine production line


Weighing:

weigh the stirred rubber powder according to the floor tiles thickness you want to make.


Paving and Pressing:

pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can be with some coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.


Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3~8 mins to make the tiles,time difference based on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.


Inspecting:

Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.



Product

500x500mm scrap tire rubber floor tile machine production line

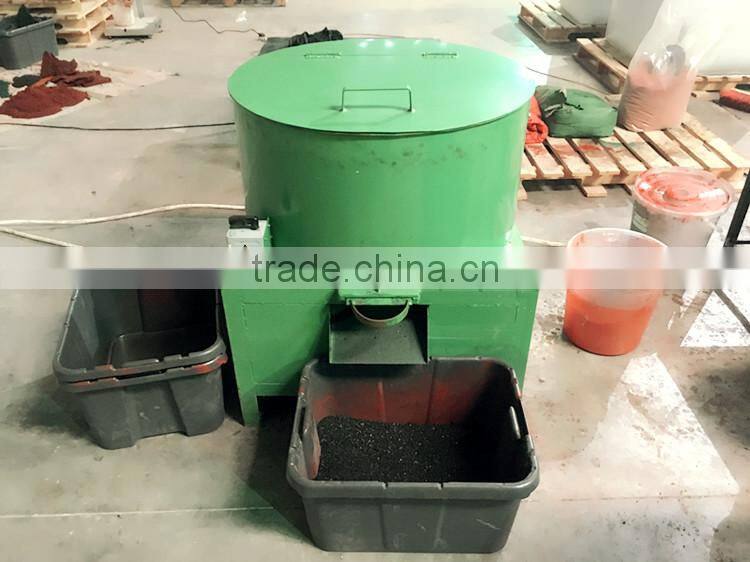

Materials mix

Rubber granules, color, and glue materials mixed by following machines

 500x500mm scrap tire rubber floor tile machine production line
