Rubber Gym Tiles making machine for sale
Introduction

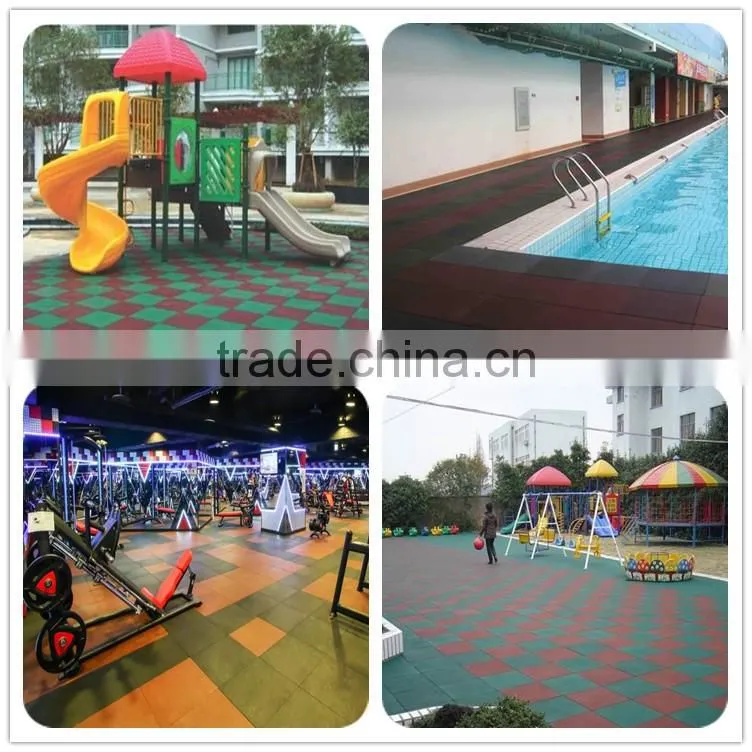

Rubber tile press machine is used to make various types of floor tiles with different dimension and shape as you required.With one set vulcanizing machine,we can make many types tiles only by changing the moulds.
Parameter
| Model | XLB-D 550×550 |
| Max pressure | 50 Ton |
| Heating plate | 550×550 mm |
| Product size | 500×500 mm |
| layer distance | 150~180 mm |
| Working layer | 4 layers |
| Dia plunger | Φ200 mm |
| Plinger stroke | 450 mm |
| Total power | 23 kw |
| Plate temperature | ≤200℃ |
Flow chart of rubber floor tile making machine:
Mixing:
Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive, then begin stiring. It will take 4-6 mins to be done.
Weighing:
weigh the stirred rubber powder according to the floor tiles thickness you want to make.
Paving and Pressing:
pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can be with some coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.
Vulcanization Moulding:
Put the mould on the vulcanizer layer, generally , it take 3~8 mins to make the tiles,time difference based on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.
Inspecting:
Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.
XLB-D 550x550 rubber tile making machine in Saudi Arabian customer's factory:
Product:
Moulds:
Mixer machine:
Rubber granules, color, and glue materials mixed by following machines.
