Rubber tiles and mats manufacturing machine with waste tire recycled rubber
Introduction

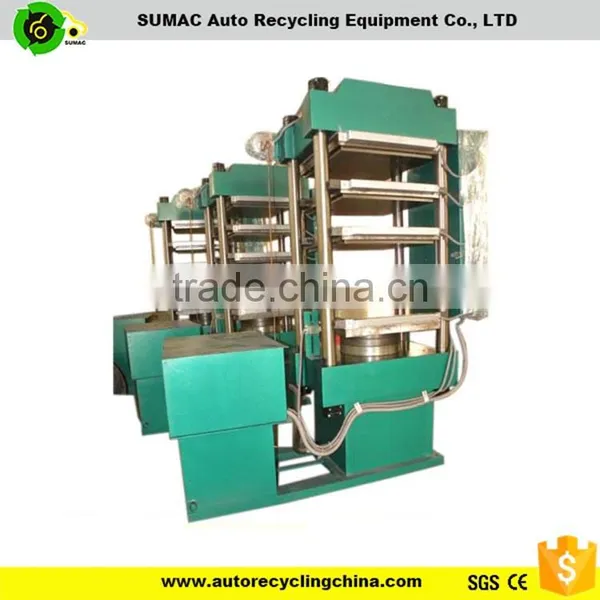

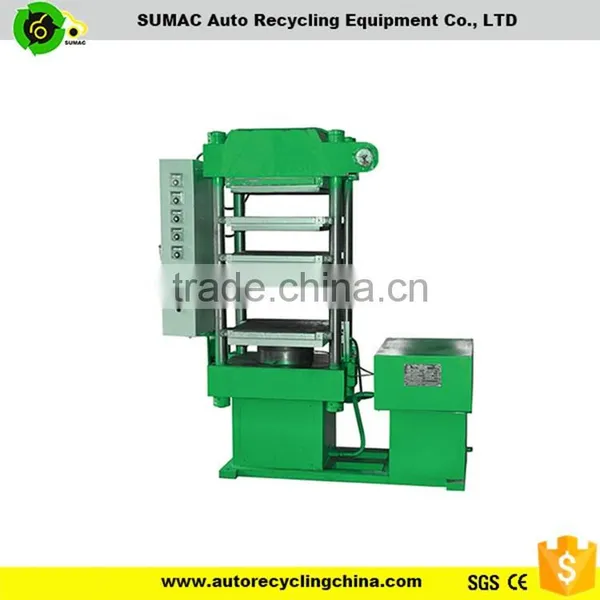

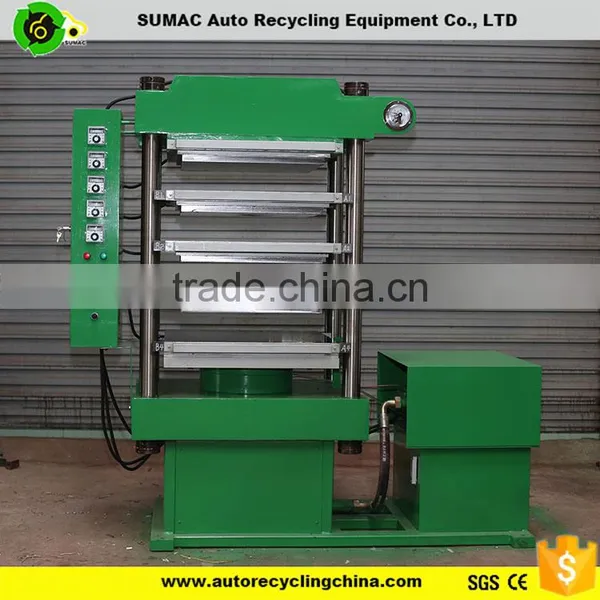

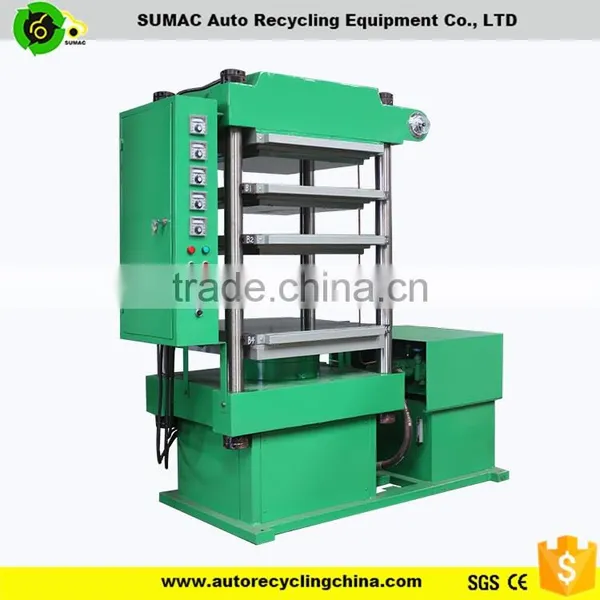

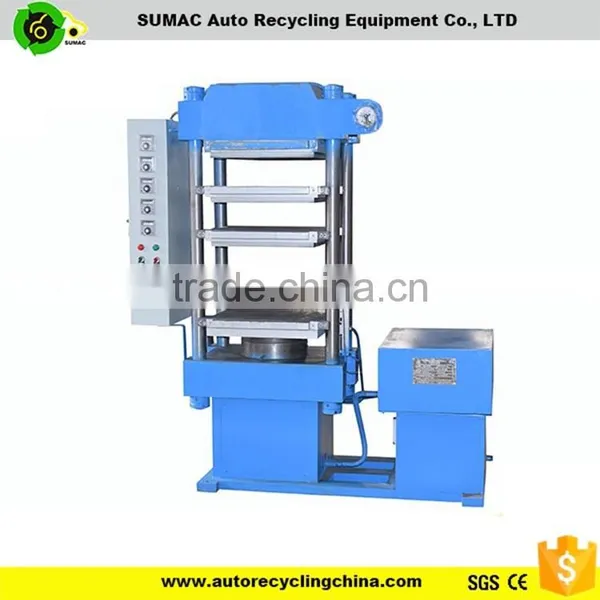

Rubber tile press machine is used to make various types of floor tiles with different dimension and shape as you required.With one set vulcanizing machine,we can make many types tiles only by changing the moulds.
Parameter
| Model | XLB-D 550×550 |
| Max pressure | 50 Ton |
| Heating plate | 550×550 mm |
| Product size | 500×500 mm |
| layer distance | 150~180 mm |
| Working layer | 4 layers |
| Dia plunger | Φ200 mm |
| Plinger stroke | 450 mm |
| Total power | 23 kw |
| Plate temperature | ≤200℃ |
Flow chart of rubber floor tile making machine
Mixing:
Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive, then begin stiring. It will take 4-6 mins to be done.
Weighing:
weigh the stirred rubber powder according to the floor tiles thickness you want to make.
Paving and Pressing:
pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can be with some coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.
Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3~8 mins to make the tiles,time difference based on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.
Inspecting:
Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.
Product

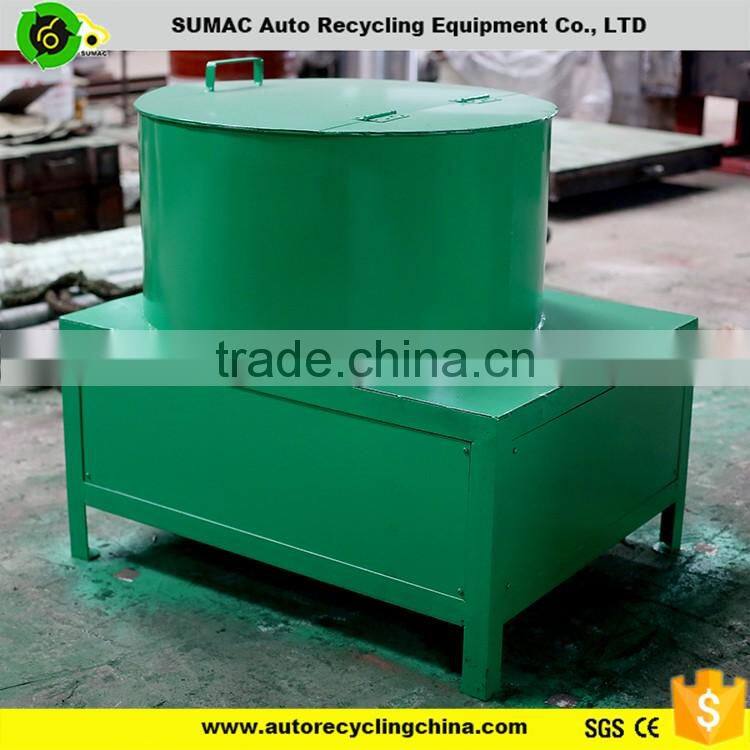

Materials mix
Rubber granules, color, and glue materials mixed by following machines.
TO MAKE SURE BETTER QUALITY
1) We use motor from Siemens,ABB/WEG is ok for your requirement
2) We adopts electrical control parts from CHNT/Schneider/Delixi
3) We use bearings from SKF
Our Service
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
*Training your worker how to operate the machinery
