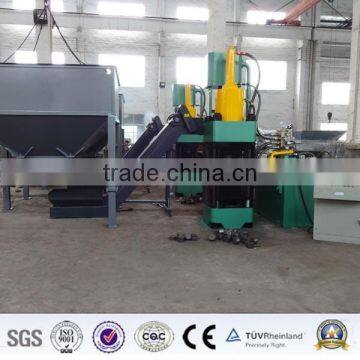

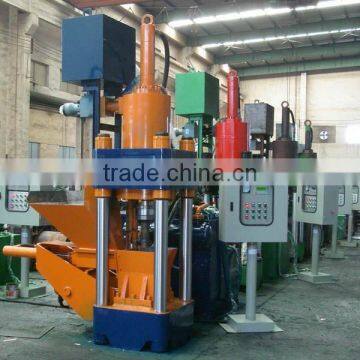

SBJ-5000 Automatic brass chips briquette press machine
This mechine is used for cold pressing of other metal scraps including powdery grainy cast iron scrap, high grade ductile cast iron scrap, alloy scrap, steel scrap, copper scrap etc. to columniform caky block with the density >=5.5-6.2T/m3(without any bond). The output of the shit is 8-20 tons.
This machine is designed with vertical sturcture, upper & nether beams of cast steel, firmly and trmtly with PLC controlling, auto charging, auto pressing, auto discharging the machine goes on in full automactically it is very easy to operate.
This machine has been granted two national patents and been only produced by our factory in China. And we have had approximate thousand clients both here and abroad.
Technical data:
Sr.no | Type name | unit | Model or data | ||||
Main cylinder | Speed up cylinder | Side push cylinder | Materical cylinder | ||||
1 | Nominal pressure | KN | 3974 | 306 | 502 | 785 | |
2 | Inner diameter of cylinder | mm | Φ450 | Φ125 | Φ160 | Φ80 | |
3 | Piston diameter | mm | Φ220 | Φ70 | Φ70 | Φ50 | |
4 | stroke | mm | 400 | 410 | 160 | 360 | |
5 | ure | Mpa | 25 | 25 | 15 | 15 | |
6 | Head/bottom girder and cylinder | Cast steeling | |||||
7 | Electrical motor | 1pc | Y250-6 37KW | ||||
8 | pump | 1pc | 160MCY14-1B | ||||
9 | efficiency | 4.5pcs/minute(each pc weight3~4kgs) | |||||
10 | Briquette density | ≥5.5kg/M3(cast iron powder) | |||||
11 | Working efficiency | 1.3-1.6ton /hour(cast iron powder) | |||||
12 | System controller | SIEMENS PLC ,ADJUSTABLE DISPLAY;INTERGRATION VALVE | |||||
13 | COOL BY | WATER COOLING | |||||
14 | WEIGHT | 10000Kg | |||||
15 | OPERATED BY | MANUAL/PLC | |||||
17 | Payment term | 30% advance t/t ,balance before shipment. | |||||
18 | MACHINE SIZE | BODY:2500×1000×3200mm OIL BOX:1500×1600×1900mm | |||||
- Free product documents translation into your language, worry-free to operate and maintain
- 7x24 technical phone service
- Engineers available to service machinery overseas
- Customer database with all customers’ records in it.
- 10 years overseas sales experience
