Specifications
Bender is Ideal for bending metal sheetPress length:900mm
Bending angle 120 degrees
Bending thickness:2mm
Press volume:20m

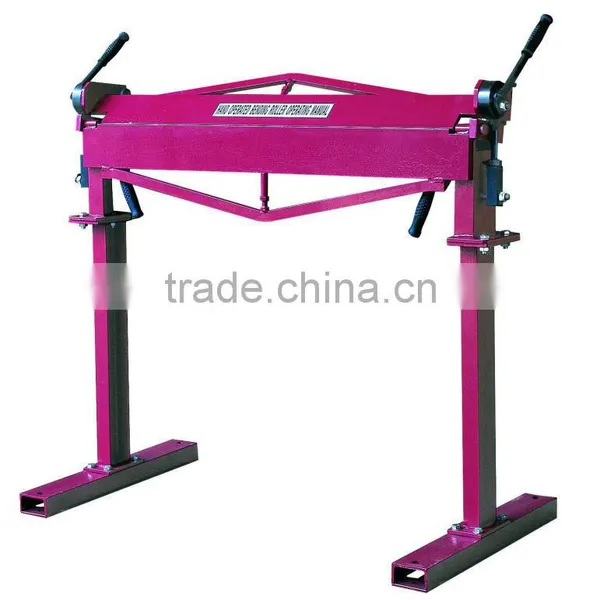

900mm Hand Operated Metal Plate Bending Roller Machine
Model:LD-A01015
Gauge Capacity: 2mm
N.W.: 1# 52kgs , 2# 17kgs
G.W.:1#55kgs, 2# 19kgs
Package size: 1#120*38*20cm, 2# 70*63*15cm
This machine is portable shaping equipment which use for low-carbon steel bending
The constuction is compact,easy to adjust and work safely
Specification
Bending angle:120 degrees
Bending thickness:2mm
Press volume:20mm
Press length: 900mm
Constructions:
Base, body , press plate,bending plate left and right rolling handing ,
adjusting construction, eccentric device, slide slot
Operating instruction
Put the workpiece on the body. Adjust the press plate and body to the required position.
Wheen eccentric handle roll up o the stop point, the workpiece is press well.
Then pull the bending plate to finish.
