Handheld Grounding Rod Earth Wire /China Security Earth Wire With Clamp

Bazhou Yu Tong Wire-Laying Machines Manufacturing Co., Ltd.

US$ 60 - 60 MOQ: 10 Sets

Key Specifications

Place of Origin:

Hebei, China

Model Number:

YTJDX-400

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN SHANGHAI GUANGZHOU SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Model Number YTJDX-400

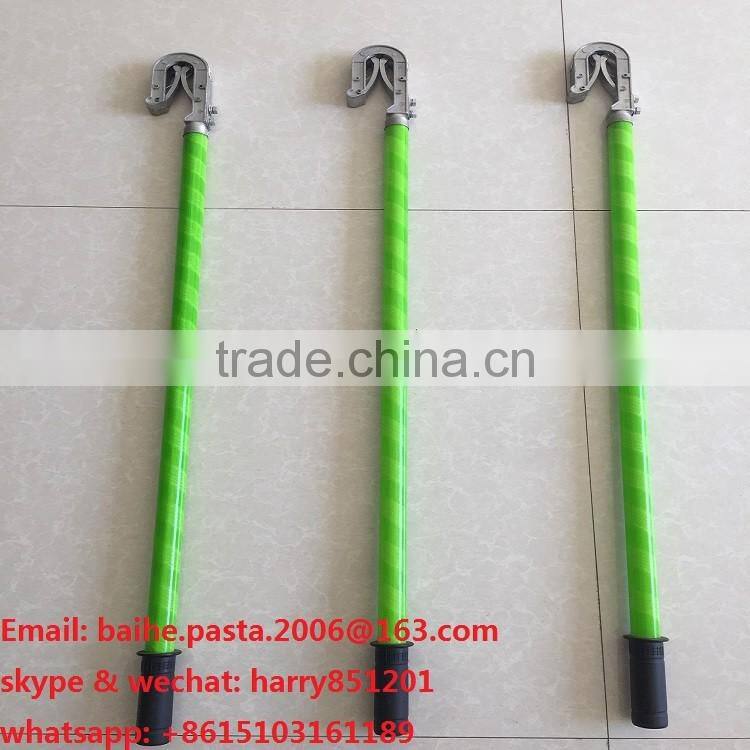

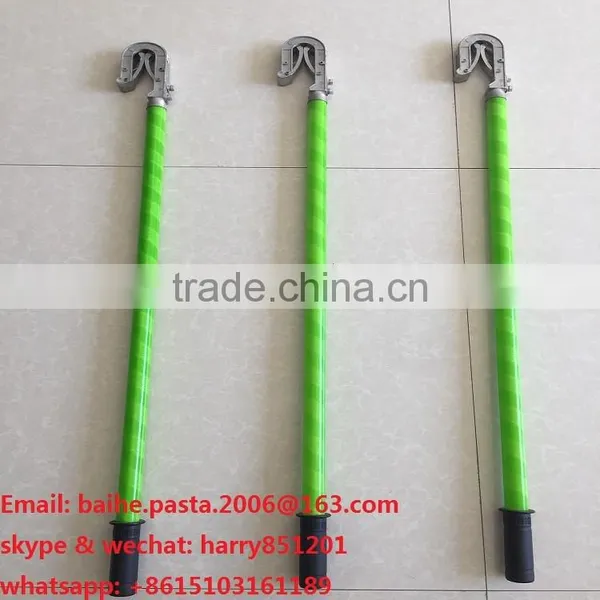

Named: Handheld grounding rod earth wire /China security earth wire with clamp

Earth wire set part:

1. Clamp + stick + wire

2. Insulating Fiberglass body

3. Alum clamp

Details:

1.Copper wire type:25sqmm, 35sqmm, 50sqmm, 70sqmm of course could produce as customer request.

2. Product characters:

A).the hook use aluminium alloy compression casting,

B).pole use the light epoxy fiberglass manufacture,

high strength, excellent ability of electric conduction.

C).Baling wire uses electrolysis copper wire.

D).The temperature scope for protective cover :+40°C.

3. Applications:

A). Distribution lines and systems

B). Transmission lines and systems

C). Sub-station

D). Underground systems

Name	Type	Cross-Section Area	Length	configure	Usage area
Earth Wire	JDX-400V	25mm2	4x1.5+12m	1m double reed needle hook	substation
	JDX-10KV	25mm2	3x1+5m	0.5m hand busbar , ground clip	substation
	JDX-35KV	25mm2	3x2+8m	1m spiral hook ,ground clip	substation
	JDX-110KV	35mm2	3x6+6m	2m double reed hook, ground clip	substation
	JDX-220KV	35mm2	3x6+6m	3m double reed hook, ground clip	substation
	JDX-500KV	50mm2	15m/item x3item	Duckbill clamp, ground clip	Steel tower
	JDX-10KV	25mm2	3x1.5+10.5m	1m double reed hook ,ground nail	Wire route
	JDX-35KV	25mm2	3x2+18m	1m double reed hook ,ground nail	Wire route
	JDX-110KV	35mm2	15mx3item	Duckbill clamp, ground clip	Wire route
	JDX-220KV	35mm2	15mx3item	Duckbill clamp, ground clip	Wire route
	Note: length can made by your required uses electrolysis copper wire the temperature scope for protective cover :±40℃
