Cable Drum Stand 8Ton

Specifications

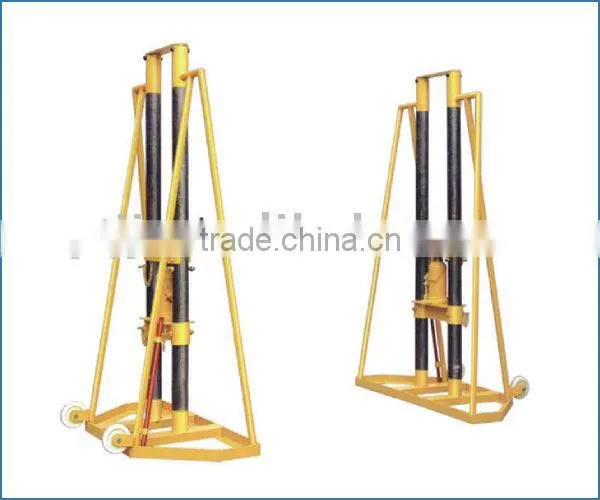

Product name: Trapezoidal and hydraulic cable drum jack
Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Product No.Rated load,Applicable drum diameter, Applicable drum width ,Axle bar diameter, Dead weight
YT011-3 3T ¦Õ700mm-¦Õ2100mm ¡Ü1500mm ¦Õ75mm 90kg
YT011-5 5T ¦Õ700mm-¦Õ2400mm ¡Ü1700mm ¦Õ90mm 130kg
YT011-10 10T ¦Õ700mm-¦Õ3200mm ¡Ü1800mm ¦Õ120mm 210kg
Product No.: YT013 Product name: Trapezoidal cable drum jack (mechanical type)
Application: applied in the supporting of cable drum when laying cable. Manual-drive and mechanical jacking equipment saves time and labor a lot. With trapezoidal structure, it can be applied in different kinds of reel specification. Trundles installed on the bottom make it easy to move.
Product No. Rated load,Applicable drum diameter, Applicable drum width,Axle bar diameter, Dead weight
YT013-3 3T ¦Õ700mm-¦Õ2100mm ¡Ü1500mm ¦Õ60mm 96kg
YT013-5 5T ¦Õ700mm-¦Õ2400mm ¡Ü1700mm ¦Õ75mm 137kg
YT013-10 10T ¦Õ700mm-¦Õ3200mm ¡Ü1800mm ¦Õ90mm 219kg
Product No.: YT012 Product name: Trapezoidal and hydraulic cable drum jack
Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Product No. Rated load, Applicable drum diameter, Applicable drum width,Axle bar diameter,Dead weight
YT012-3 3T ¦Õ700mm-¦Õ2100mm ¡Ü1500mm ¦Õ60mm 112kg
YT012-5 5T ¦Õ700mm-¦Õ2400mm ¡Ü1700mm ¦Õ75mm 151kg
YT012-10 10T ¦Õ700mm-¦Õ3200mm ¡Ü1800mm ¦Õ90mm 235kg
Product No.:CDJ-10 Product name: Hydraulic cable drum jack
Application: applied in the pay-off of outdoor underground cable, high altitude line stringing, indoor switchboard wiring, etc. With fixed seat during operation, the cable drum will not swing back and forth. Support high by oil pressure, simple operation, can be lifted quickly and easily.
Product No. Rated load, Applicable drum diameter, Applicable drum width,Axle bar diameter,Dead weight
CDJ-10 10T ¦Õ1800mm-¦Õ2800mm ¡Ü1800mm ¦Õ120mm 210kg
CDJ-15 15T ¦Õ1800mm-¦Õ3200mm ¡Ü2200mm ¦Õ120mm 260kg
CDJ-20 20T ¦Õ1800mm-¦Õ3600mm ¡Ü2400mm ¦Õ140mm 380kg
Product No.: YT014 Product name: Hydraulic cable drum jack
Product No. Rated load, Applicable drum diameter, Applicable drum width,Axle bar diameter,Dead weight
YT014-5 5T ¦Õ600mm-¦Õ2400mm ¡Ü1600mm ¦Õ75mm 126kg
YT014-10 10T ¦Õ600mm-¦Õ2800mm ¡Ü1800mm ¦Õ120mm 190kg
YT014-15 15T ¦Õ600mm-¦Õ3200mm ¡Ü2000mm ¦Õ140mm 246kg
Product No.: YT018 Product name: Mechanical cable drum jack
Application: applied in the supporting of reel when laying guiding cable during line construction.
Product No. Rated load, Applicable drum diameter, Applicable drum width,Axle bar diameter,Dead weight
YT018-1 1T ¦Õ1160mm-¦Õ1700m ¡Ü1000mm ¦Õ60mm 30kg
YT018-3 3T ¦Õ1400mm-¦Õ2100mm ¡Ü1400mm ¦Õ75mm 40kg
YT018-5 5T ¦Õ1600mm-¦Õ2400mm ¡Ü1600mm ¦Õ75mm 40kg
