Toyota 4Y Engine(2Y/3Y/4Y/4YEFI/2L/3L/5L/2RZ/22R)

Name: Toyota 4Y Engine(2Y/3Y/4Y/4YEFI/2L/3L/5L/2RZ/22R)
Brand: Toyota
SKU: 143529618
Availability: InStock

US$ 1,000 - 1,001 MOQ: 1 Unit

Key Specifications

Place of Origin:

Heilongjiang, China

Brand Name:

Toyota

Model Number:

Shanghai Stone Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Heilongjiang, China

Brand Name Toyota

Model Number 4Y

Warranty 1 year

Specifications

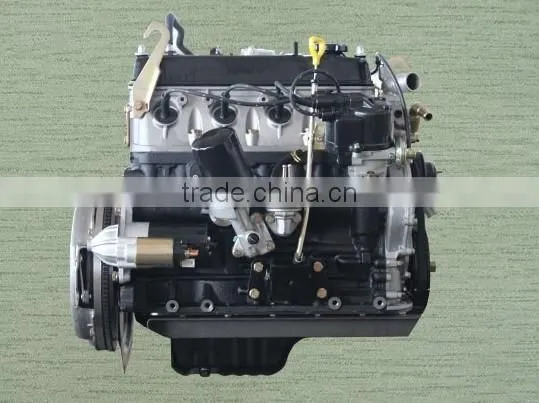

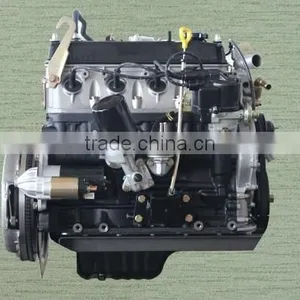

Toyota 4Y engine
1. OEM quality and good service
2. Competitive price and fast shipment
3. Professional company

Specifications and Description:

Line	Item	Specifications and Description
1	Model	Toyota 4Y
2	Type	4 stroke, water cooling, inline, wedge shape combustion chamber
3	Cylinders	4
4	Bore	91 mm
5	Stroke	86 mm
6	Displacement	2.237 L
7	Power / RPM	68 kw / 4,200-4,600 rpm
8	Idle speed	750 ± 50 rpm
9	Max. torque/RPM	177N.m / 2,800-3,200 rpm
10	Fuel supply	Carburetor
11	Fuel	RON 90 (GB484)
12	Min. fuel consumption	≤ 285 g / kw.h
13	Oil	SE 10 W-30 or SE 15 W-40 (GB11121)
14	Oil consumption	≤ 0.8 %
15	Piston average speed	13.19 m / s
16	Crankshaft rotation (facing to flywheel)	anticlockwise
17	Compression ratio	8.8
18	Weight vs. power	2.25 kg / kw
19	Average efficient pressure	793 kPa
20	Power vs. displacement	30.4 kw / l
21	Ignition order	1-3-4 -2
22	Distributing
	Intake in advance	12 °
	Intake in lag	48 °
	Exhaust in advance	54 °
	Exhaust in lag	10 °
23	Cooling	Centrifugal water pumped cycling
24	Lubricating	Pressed and splashed
25	Starting	Electric starter
