Help Center1000mm Mechanical Diaphragm Wall Grabs 2800mm Width for Diaphragm Wall Piles Used on Liebherr Hs855hd Crane
Product Spotlights
The material of edge of jaws is NM450
Jaws of angular or round shape are available.
Jaws may be rectangular or round shape.
Related Products
-
Sell 600mm Diaphragm Wall Water Stop End Elements B600mm Wide Used for Diaphragm Wall ConstructionUS$ 1000 - 3000MOQ: 1 Piece -
Shock Absorber for DTH Hammer Drill Rig 8US$ 1000 - 3000MOQ: 1 Piece
-
Sell 510mm FDP AUGER WITH 368MM CFA CONNECTOR USED FOR FULL DISPLACEMENT PILE MATCH BAUER Bg20h , BAUER Bg24, BAUER Bg28 , BAUER Bg33 Drilling RigUS$ 10000 - 30000MOQ: 1 Piece
-
DTH Hammer 18inch Shock Absorber With 120H Hexagonal Joints for Dth Hammer for Pile Foundation WorkUS$ 1000 - 3000MOQ: 1 Piece
-
Mining Blasthole Drilling Drilling Bit Sub 6 1/2*40” Pin*box Beco4 Match DM45US$ 100 - 1000MOQ: 1 Piece
1000mm mechanical diaphragm wall grabs 2800mm width for diaphragm wall piles used on lieb-herr hs855hd crane
1000mm mechanical grabs 2800mm width for diaphragm waall piles used on lieb-herr hs855hd crane
1000mm diaphragm wall grab width 2800mm for diaphragm wall pile construction
mechanical diaphragm wall grabs 1000mm, 2800mm width for diaphragm waall piles used on lieb-herr hs855hd crane
mechanical grabs dia 1000mm ,2800mm width for diaphragm waall piles used on lieb-herr hs855hd crane
1000mm mechanical diaphragm wall grab 2500mm width for diaphragm waall piles used on lieb-herr hs855hd crane
1000mm mechanical diaphragm wall grab 3200mm width for diaphragm waall piles used on lieb-herr hs855hd crane
1000mm mechanical diaphragm wall grab 3400mm width for diaphragm waall piles used on lieb-herr hs855hd crane
1000mm slurry wall grabs 2800mm opening for diaphragm waall piles used on lieb-herr hs855hd crane
1000mm clam shell grabs 2800mm opening for diaphragm waall piles used on lieb-herr hs855hd crane
Sell 800*2800mm mechanical diaphragm wall grabs for diaphragm wall piles used on lieb-herr hs855hd crane
Our grab opening from 2500mm-3800mm, 2500mm , 2800mm 3200mm,3800mm
Mechanical diaphragm wall grab 800*2500mm,800*2800mm,800*3200mm,800*3800mm
SPECIFICATION |
L mm |
L1 mm |
T mm |
T1 mm |
T2 mm |
kg |
QUANTITY OF PULLY |
800 |
8700 |
9600 |
800 |
2800 |
2200 |
15500KGS |
5 |
1000 |
8700 |
9600 |
1000 |
2800 |
2200 |
17000kgs |
5 |
1200mm |
8700 |
9600 |
1200 |
2800 |
2200 |
18500kgs |
5 |

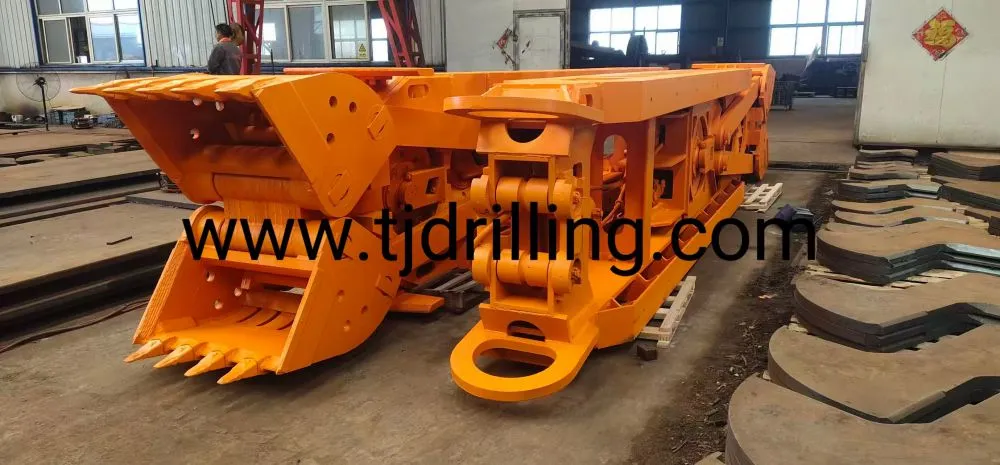

Mechanical Diaphragm Wall Grabs
Tianjin huachang xingye technology co ltd fabricate mechanical Diaphragm Wall Grabs are the best solution to excavate diaphragm walls in all soil conditions up to a soil hardness of 70 mPA as light chiselling work is possible. The Diaphragm wall grab is available with grab extensions for a total length of 4 to 16 m and also with extra ballast to reach a total weight of up to 35 ton for even the most demanding projects.
The cutting edges of the grab jaws are made of steel 450 and were especially hardened. Easy mounting of the grab jaws for excavation widths 800 /1000 /1200 mm. All the grab teeth as well as all the wire rope pulleys are quickly exchangeable due to their construction as ready to use components
The pulleys are equipped with oil-filled maintenance-free life time bearings.
The material of edge of jaws is NM450
Jaws of angular or round shape are available.
Jaws may be rectangular or round shape. Jaws, ropes, pulleys and different teeth can be quickly replaced on site without any problems. All rope and guide pulleys have adequately dimensioned, maintenance-free bearings filled with grease.
