Specifications
epdm foam rubber sheets1) waterproof
2).fireproof
3).RoSH,SGS passed
4).fast delivery

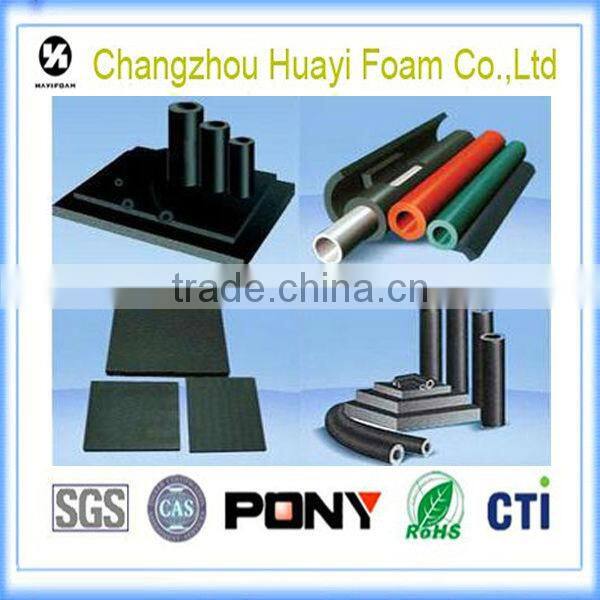

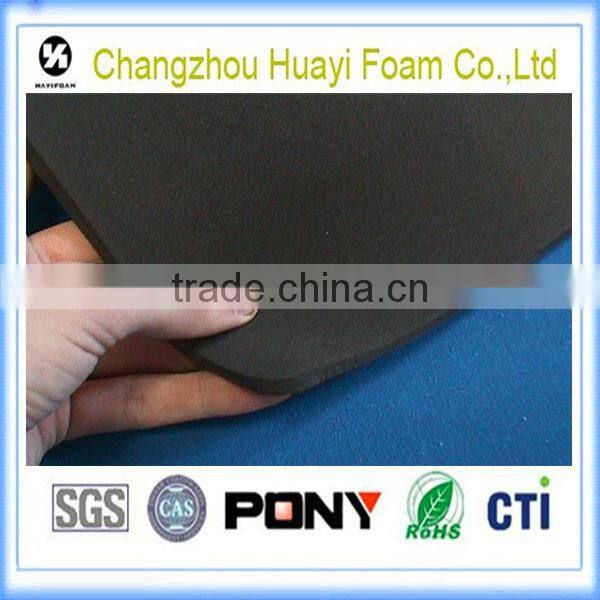

Adiabatic NBR/PVC/EPDM plastic rubber foam sheet
epdm foam rubber sheets
| high quality flexible insulation product designed for insulating in the field ot heating,ventilating,air-conditioning and refrigerating on the basis of the elastomeric foam with closed-cell structure .Kingwell provides efficient method of preventing undersirable heat gain or loss in chilled water systeml,cold and hot water plumbing,refrigerated pipes,air-conditioning ductwork and equipment. | ||||
| Characteristics: | ||||
| 1. CFC/HCFC free. | ||||
| 2. Low Heating Conductivity. | ||||
| 3. Low Water Absorption Rate. | ||||
| 4. Good Fireproof and Soundproof Performance. | ||||
| 5. Good Aging Resistance Performance. | ||||
| 6. Easy Installation. | ||||
| PRODUCT DATA | ||||
| Property | Unit | Value | Test Method | |
| Temperature range | °F (°C) | -297~220 (-183~105) | - | |
| Density range | lbs./ft³(kg/m³) | 3.0~6.0 (48~96) | ASTM D1622 or D1667 | |
| Thermal conductivity | 75°F mean T (24°C) | Btu·in./h·ft²·°F (W/mK) | 0.27 (0.039) | ASTM C177 or C518 |
| 90°F mean T (32°C) | Btu·in./h·ft²·°F (W/mK) | 0.276 (0.040) | ||
| Water vapor permeability | perm-in (kg/m·s·pa) | 0.08 (1.16×10-13) | ASTM E96 Procedure A DIN 52615 | |
| Flame spread and smoke developed index | - | 25/50 | ASTM E84, CAN/ULC S 102 | |
| V0 | UL94 | |||
| Water absorption, by volume | % | 0.2 | ASTM C209 | |
| Mold growth | - | meet requirement | UL181 | |
| Bacterial resistance | meet requirement | ASTM G22 | ||
| Fungi resistance | meet requirement | ASTM G21/C1338 | ||
| Resistance to agent chemical | - | stable performance to agent chemical | - | |
| Ozone resistance | - | good | ASTM D1149 | |
| Aging resistance | - | 150 hours, slight wrinkles, no cracks, holes or distortion | - | |
| Wall thickness (normal) Sheet/Roll | in (mm) | 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/4", 1-1/2", 2" (3, 6, 9, 13, 16, 19, 25, 32 , 40, 50) | - | |
| Width, sheet/roll | in (m) | 40", 48" (1, 1.22) | - | |
| Length, sheet | ft (m) | 36" (0.915) | - | |
| Length, roll | ft (m) | 98, 49, 33, 26, 23, 20, 13, 10, 10, 8 (30, 15, 10, 8, 7, 6, 4, 3, 3, 2.5) | - | |
| Packaging: | ||||
| In plastic bag per roll, standard size as below(Thickness×Width×Length) | ||||
| 1/4 Inch ×1M ×30M | ||||
| 3/8 Inch ×1M ×20M | ||||
| 1/2 Inch ×1M ×14M | ||||
| 5/8 Inch ×1M ×12M | ||||
| 3/4 Inch ×1M ×10M | ||||
| 1 Inch ×1M ×8M | ||||
| 1 1/4 Inch ×1M ×6M | ||||
| 1 5/8 Inch ×1M ×4M | ||||
| 1 7/8 Inch×1M ×3M | ||||
| The width of 1M to 1.4M is available to provide | ||||
A. Product Description :
This is the 21st Century insulation material. It is a flexible & light weight elastomeric nitrile foam material designed for thermal insulation. Black in colour, it is available either in tubing or sheet form. The extruded flexible tubing is specially designed to fit the standard diameters of steel and copper pipings. Sheets are available in standard precut sizes or in rolls.
B. Specifications :
This material is available in various makes like Armaflex, Accoflex, Superlon & many more.
It is available in the form of Sheets/ Rolls of thickness 6mm to 50mm or in tubings of 6ft length of different thickness & inner diameters designed to fit all standard steel & copper pipings.
C. Features of products:
1. Closed-cell Structure.
2. Low Heating Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.
D. Applications :
The expanded closed cell structure provided as efficient vapour barrier for the prevention of condensation or frost formation on COOLING SYSTEMS, CHILLED WATER and REFRIGERATION LINES.
It also retards heat loss for hot water plumbing and heating, dual temperature piping and SOLAR SYSTEMS. It protects pipes against corrosion and acts as a vibration damper.
Its inherent flexibility makes it ideally suited to the insulation of large surface areas such as tanks, irregularly shaped vessels, air ducts and large diameter pipes.
