Italy Standard Woodworking Combination Machine BM10310
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, combination machine
Use:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wood Combination Machine BM10311NegotiableMOQ: 1 Unit -
Wood Lathe Copy Attachment BM10816, BM10820, BM10817NegotiableMOQ: 30 Units
-
10" Woodworking Planer Thicknesser BM10401NegotiableMOQ: 10 Units
-
Band Saw for Sale BM10702 & BM10703NegotiableMOQ: 20 Units
-
6 Function Combination Woodworking Machine BM10303NegotiableMOQ: 3 Units
Condition
New
Type
Other, combination machine
Use
Woodworking
Style
Horizontal
Place of Origin
Shandong, China
Brand Name
Forestwest
Model Number
BM10310
Usage
woodworking combination machine
Voltage
customized
Power(W)
3kw

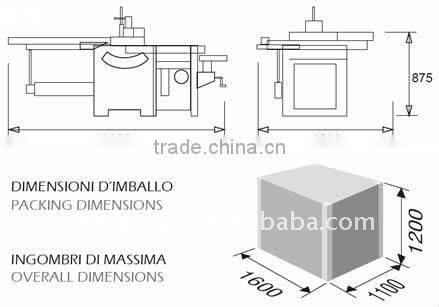

Dimension(L*W*H)
160x110x120cm
Weight
485kgs
Certification
CE

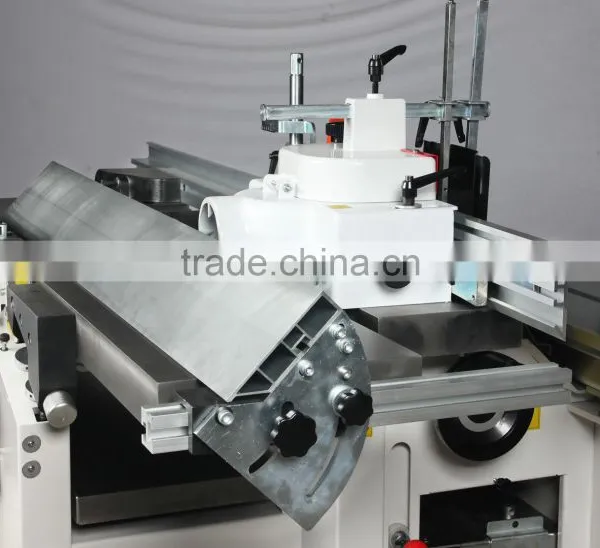

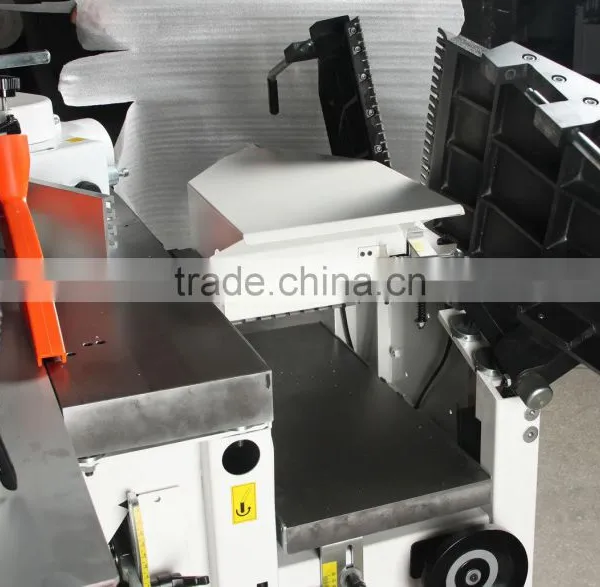

Combination Machine
Model: BM10310

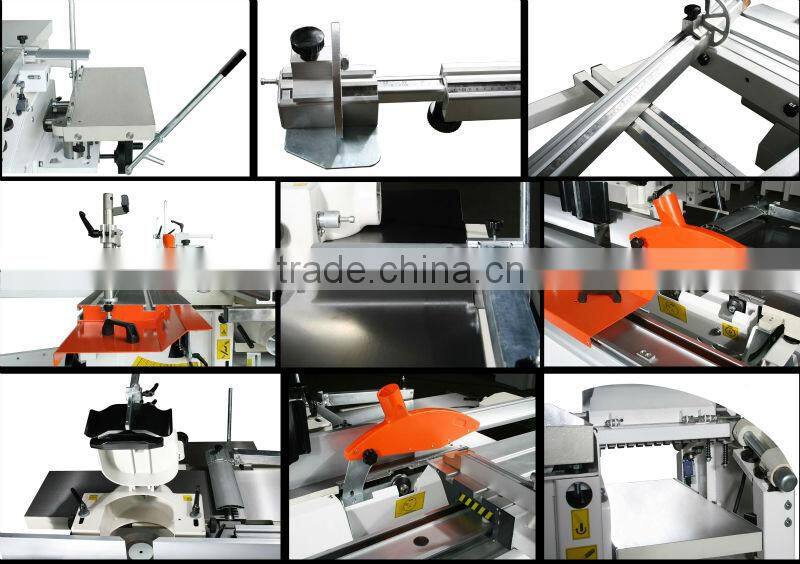

Surface planer, thichness machine, spindle moulder, mortiser, circular saw, tenoning carriage, Sharpener
Features:
1. All the metal sheet is using laser cut, so the whole machine looks fantastic and with very good precision. The shell has with no visible welding, and powder coated.
2. Our engineer comes from Italy. He stays in our Qingdao factory and is in charge of the machine’s design and quality.
3. The net weight of our machine is heavier than many other similar types from other factories.
4. Our machine, including the motor, has CE certificate, and our motor power is 3kw.
5. The brand of our bearing is SKF or NSK, which has very good quality.
Specifications:

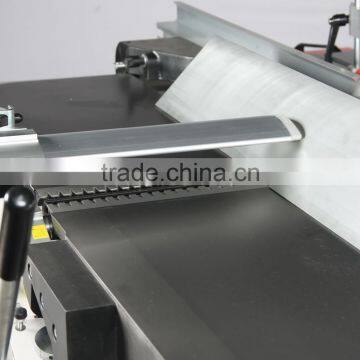

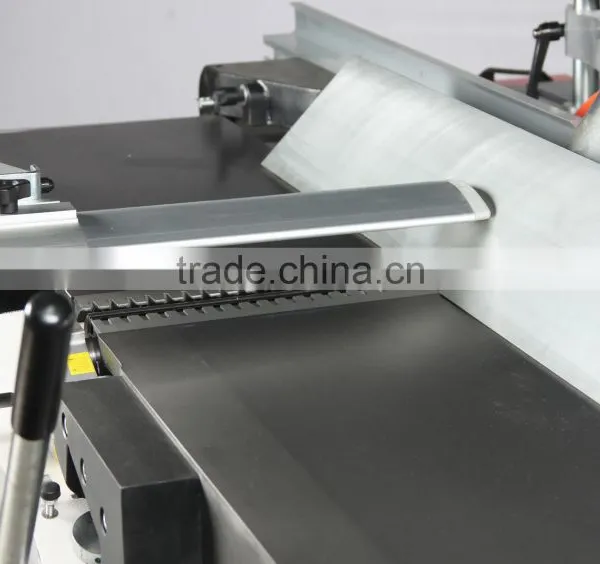

| Planer | BM10310 | |
| Working tables | mm | 300x1500 |
| Cutterblock diameter | mm | 70 |
| Cutterblock rotation speed | r.p.m | 5700 |
| N. of knifes | No. | 3 |
| Knifes dimensions | mm | 300x20x3 |
| Max table adjustement | mm | 4 |
| Thicknesser | BM10310 | |
| Working table | mm | 300x660 |
| Feed speed | m/1' | 7 |
| Max. working height | mm | 220 |
| Min. working height | mm | 4 |
| Cutterblock rotation speed | r.p.m. | 5700 |
| Max. cutting depth | mm | 5,5 |
| Circular saw | BM10310 | |
| Working table | mm | 220x1000 |
| Shaft rotation speed | r.p.m. | 4500 |
| Blade diameter | mm | 250 |
| Blade bora diameter | mm | 30 |
| Cutting height 90° | mm | 80 |
| Max. distance between blade and fence | mm | 500 |
| Blade inclination | 0° | 45° |
| Max cutting height 45° | mm | 50 |
| Shaft rotation speed engraver | r.p.m. | 7000 |
| Engraver blade diameter | mm | 90 |
| Engraver blade bora diameter | mm | 22 |
| Mortiser | BM10310 | |
| Working table | mm | 410x170 |
| Longitudinal stroke | mm | 160 |
| Trasversal stroke | mm | 100 |
| Vertical stroke | mm | 90 |
| Churck | mm | 16 |
| Churck rotation speed | r.p.m. | 5700 |
| Shaper | BM10310 | |
| Working tables | mm | 220x1000 |
| Shaft rotation speeds | r.p.m. | 2000/3100/4400/7000 |
| Standard shaft diameter | mm | 30 |
| Spindle length | mm | 105 |
| Shaft vertical stroke | mm | 115 |
| Max. tool diameter | mm | 160 |
| Max. tenoning depth | mm | 55 |
| Tenoning carriage | BM10310 | |
| Carriage dimensions | mm | 1250x315 |
| Carriage stroke | mm | 1600 |
| Standard accessories | BM10310 | |
| N°1 screw-type clamp | * | |
| Sharper fence | * | |
| Service wrenches | * | |
| Mortiser chuck | * | |
| Table extensions with swinging arms | mm | 800x600 |
| Guards on mortiseur chuck | * | |
| 3 pcs. planing knives | * | |
| Planer guide | ||
| Saw guid | ||
| Bridge sefety hood on planer | * | |
| 3-phase motor power | HP - KW | 3,0 - 2,2 |
| Weight | kg | 485 |
| Optiona accessories | BM10310 | |
| Single-phase motor | HP - KW | 2,7 - 2,0 |
| Increasing 3-phase motor | HP - KW | 4,0 - 3,0 |
| Extraction unit | HP - KW | 0,5 - 0,36 |
| Set of wheels with feeding steering bar | * | |
| Contouring fence | ||
| Regulating to copy |
