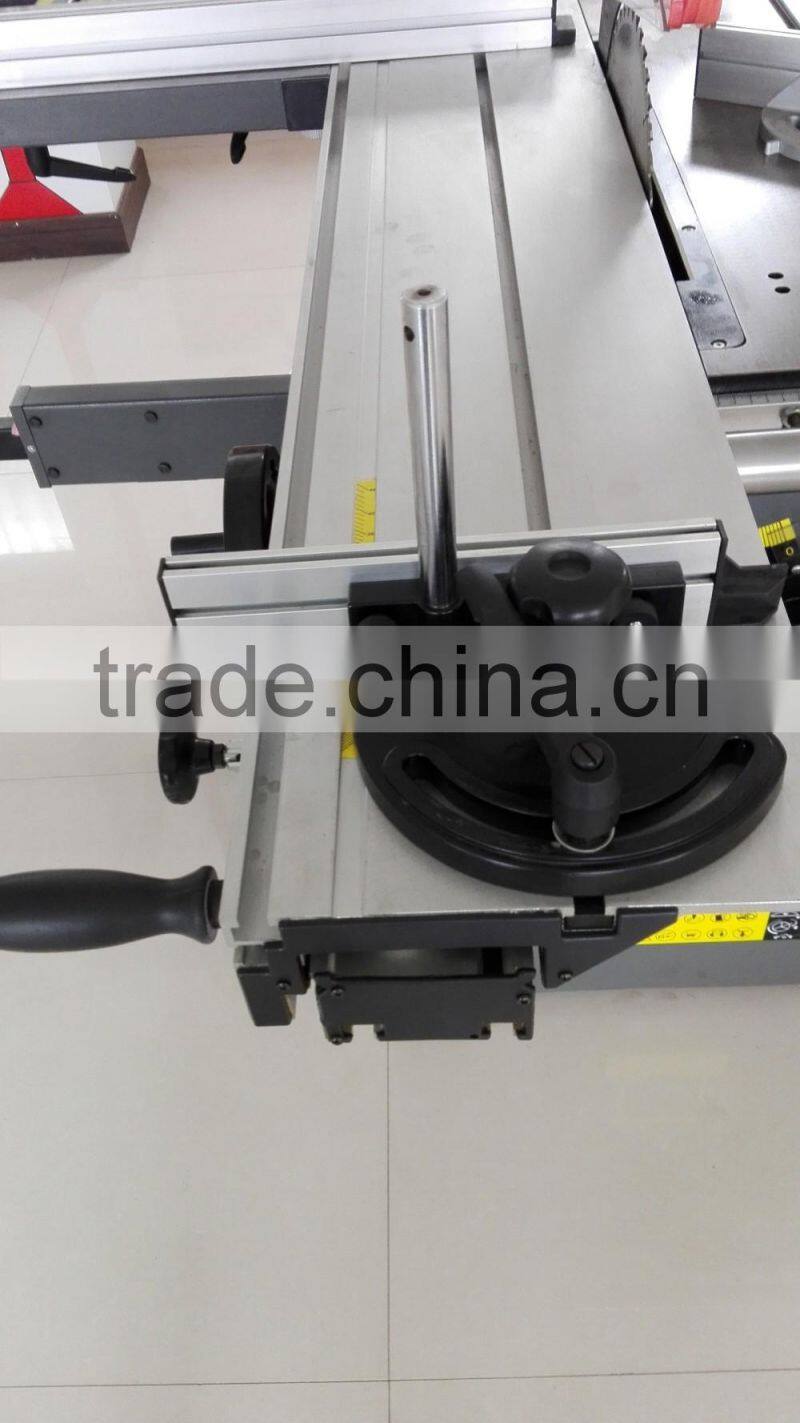

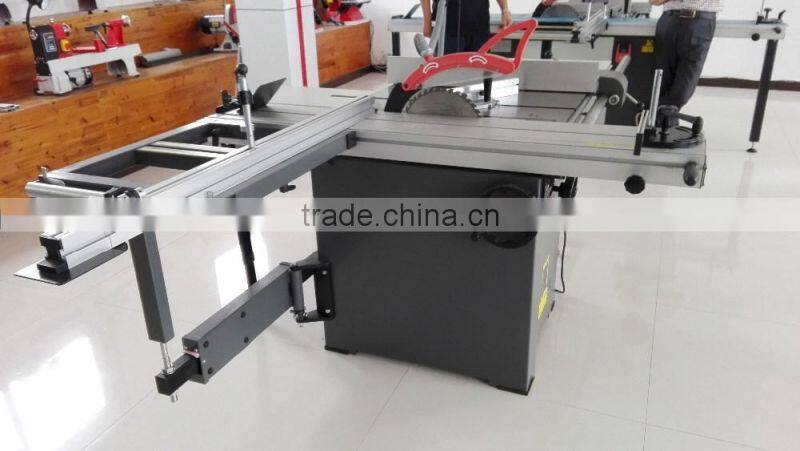

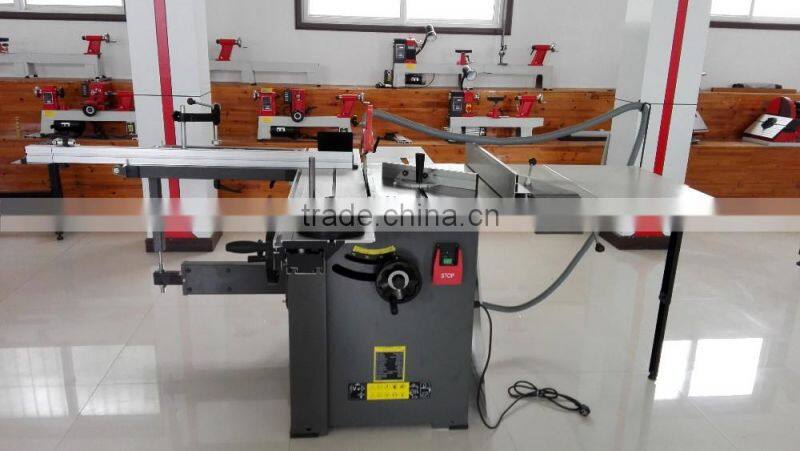

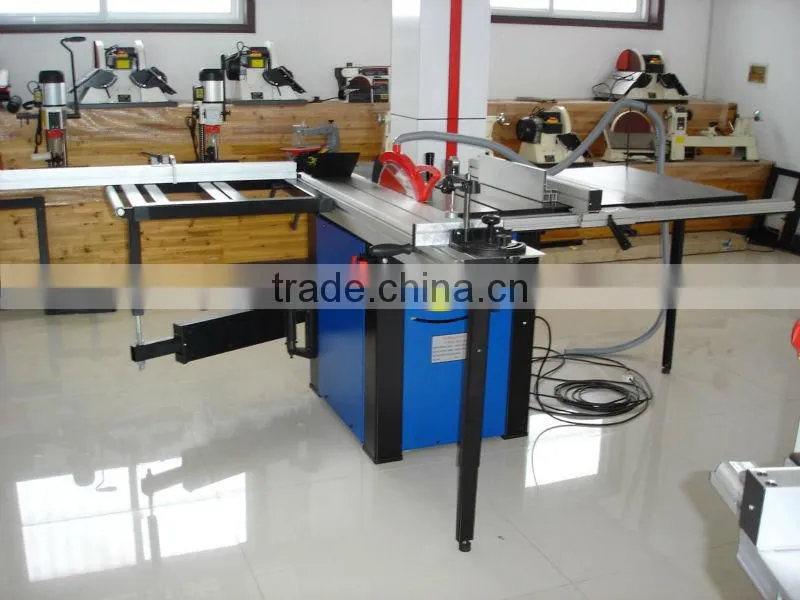

12" Panel Saw Sliding Table Saw BM10222-10227

Qingdao Bright Machinery Co., Ltd.
12" Panel Saw Sliding Table Saw BM10222-10227 thumbnail-1
12" Panel Saw Sliding Table Saw BM10222-10227 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Table Panel Saw
Use:
Woodworking
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Table Panel Saw
Use Woodworking
Style Horizontal
Place of Origin Shandong, China
Brand Name Forestwest
Model Number BM10222-10227
Usage woodworking panel saw
Voltage 230V/400V
Power(W) 3000W/4000W

12" Panel Saw Sliding Table Saw

Model: BM10222-10227



ModelBM10222BM10223BM10224BM10225BM10226BM10227
Motor power230V~,50HZ,3000W230V~,50HZ,3000W230V~,50HZ,3000W230V~,50HZ,3000W230V~,50HZ,3000W230V~,50HZ,3000W
400V,3~,50HZ,4000W400V,3~,50HZ,4000W400V,3~,50HZ,4000W400V,3~,50HZ,4000W400V,3~,50HZ,4000W400V,3~,50HZ,4000W
Major table size 385×800mm385×800mm385×800mm385×800mm385×800mm385×800mm
Extension table (Cast iron)440×800mm440×800mm440×800mm440×800mm440×800mm440×800mm
Extension table (Steel plate)440×800mm440×800mm440×800mm440×800mm440×800mm440×800mm
Rear extension table310×500mm310×500mm310×500mm310×500mm310×500mm310×500mm
Sliding panel size1600×270mm1800×270mm2000×270mm2600×270mm2800×270mm3200×270mm
Cross cut table size680×580mm680×580mm680×580mm680×580mm680×580mm680×580mm
Cross cut fence1200-2200mm1200-2200mm1200-2200mm1200-2200mm1200-2200mm1200-2200mm
Main blade size315×30×3mm315×30×3mm315×30×3mm315×30×3mm315×30×3mm315×30×3mm
Main blade speed4500rpm4500rpm4500rpm4500rpm4500rpm4500rpm
Scoringblade size90x20x3 mm90x20x3mm90x20x3mm90x20x3mm90x20x3mm90x20x3mm
Scoringblade speed8500rpm8500rpm8500rpm8500rpm8500rpm8500rpm
Max cut depth100 mm @ 90°(315)75 mm @ 90°(254)
80 mm @ 45° (315) 60 mm @ 45°(254)
Max distance-blade to rip fence1220mm1220mm1220mm1220mm1220mm1220mm
Max cross cut length1600mm1800mm2000mm2600mm2800mm3200mm
Max cross cut width1350mm1350mm1350mm1350mm1350mm1350mm
Packing size936×756×1040mm940×765×1000 mm936×756×1040mm1580×756×1009mm1580×756×1009mm1580×756×1009mm
1640×240×310mm1860×250×320 mm2040×240×310mm2650×246×325mm2850×246×325mm3250×246×325mm
Weight(N.W./G.W.)265/305kg270/310KG275/315kg295/335kg305/345kg335/375kg
Noise level (Unload)85 dB(A)85 dB(A)85 dB(A)85 dB(A)85 dB(A)85 dB(A)

 12" Panel Saw Sliding Table Saw BM10222-1022712" Panel Saw Sliding Table Saw BM10222-1022712" Panel Saw Sliding Table Saw BM10222-10227

12" Panel Saw Sliding Table Saw BM10222-10227
