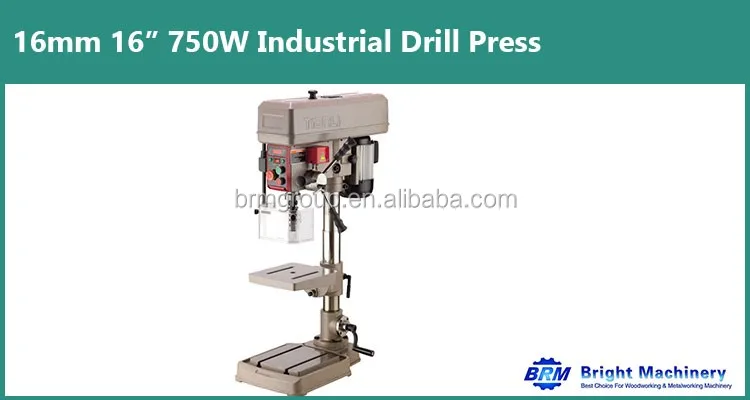

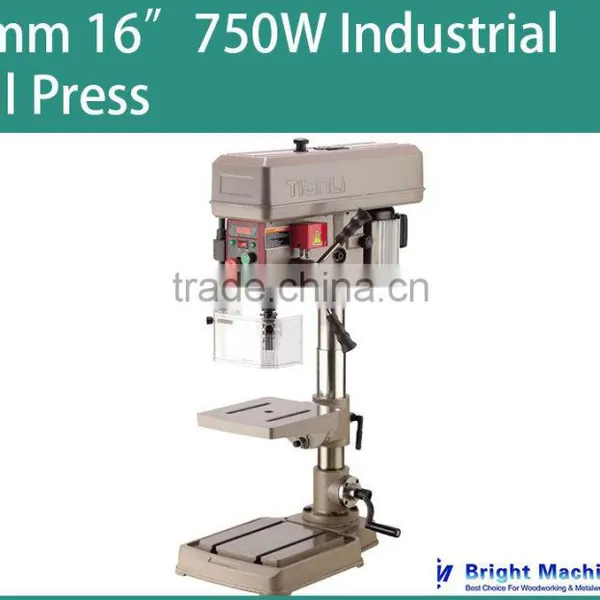

750W 16" Industrial Bench Drill Press 3-16mm Chuck 5 Speed BM20164

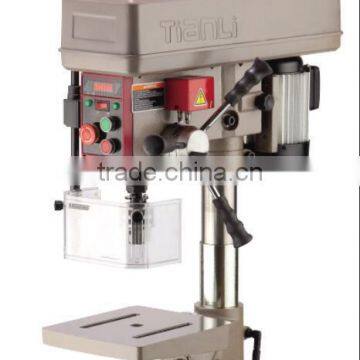

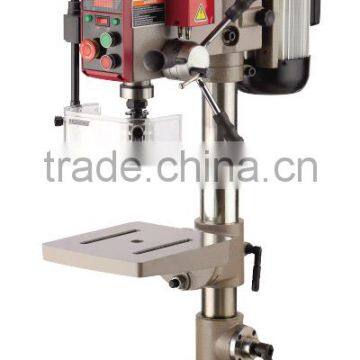

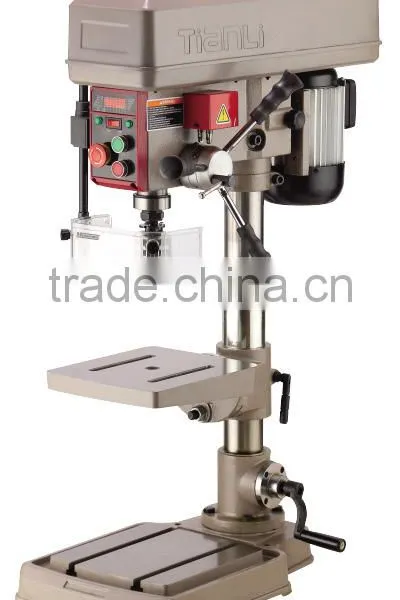

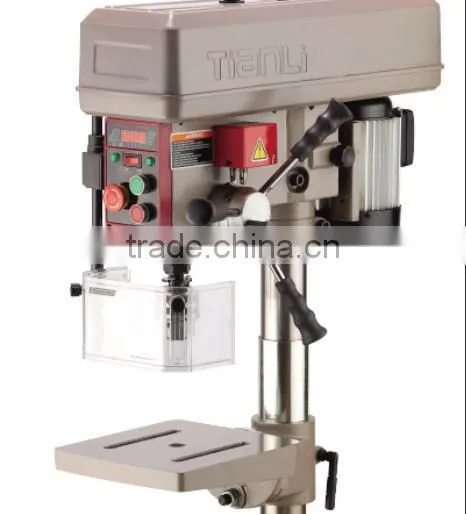

750W 16" Industrial Bench Drill Press 3-16mm Chuck 5 Speed BM20164 photo-1
750W 16" Industrial Bench Drill Press 3-16mm Chuck 5 Speed BM20164 photo-2
750W 16" Industrial Bench Drill Press 3-16mm Chuck 5 Speed BM20164 photo-3
Negotiable MOQ: 20 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
B&M
Model Number:
BM20164
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name B&M
Model Number BM20164
Drill Type Drill Press
Application Woods, metals, plastics and stones
Frequency 50Hz
Max. Drilling Diameter 16mm
No-Load Speed 360-2700RPM
Rated Input Power 750W
Rated Torque 20N.M
Rated Voltage 380V
Weight 105Kg
Product Description
750W 16" Industrial Bench Drill Press 3-16mm Chuck 5 Speed BM20164

Featuring five speed variable 360-2700 RPM settings, a 16mm solid chuck and a powerful 750W motor, this industrial bench drill press offers the torque, components and versatility required to execute a range of drilling tasks through a whole host of materials.

It has been designed with smooth, powerful and consistent drilling in front of mind. Its 100mm spindle travel is accompanied by a sturdy height adjustable work table, accommodating the various types of objects to be drilled and the precision required. The three spoke handle works in harmony with the rack and pinion spindle feed to produce a clean and fluid press. Its length adjustable chuck guard offers user protection and is also designed to be set out of the way for exposed drilling.

We deliver market leading excellence in a whole range of workshop power equipment. The BM20164 Drill Press offers a convenient, compact and dependable drilling solution to an endless list of projects.

Features

1. 5 speed variable 360-2700 RPM settings

2. 16mm solid chuck

3. Powerful 750w motor, heavy duty machine

4. 100mm spindle travel

5. 16" 410mm swing

6. Max spindle to table 320mm, max spindle to base 575mm

7. Suitable for woods, metals, plastics and stones

8. Height adjustable work table

9. Three spoke handle

10. Convenient, compact and dependable drilling solution

Specifications
Model
BM20164
Feature
Drilling&Tapping
Drill/Tapping Capacity
16mm/M12
Chuck Capacity
3-16mm
Column Diameter
70mm
Spindle Travel
100mm
Swing
410mm
Max Distance Spindle to Table
290mm
Max Distance Spindle to Base
570mm
Spindle Taper
MT2
Speed Range
250-2200RPM
NO.of Speed
5
Table Size
283*248mm
Base Size
520*345mm
Overal Height
1040mm
Motor
380V/750W/50Hz
Weight
105Kg
Packing Size
750*430*950mm
Packing & Delivery
Size
750*430*950 mm
G.W.
 105Kg
Packaging Details
Packed in high quality carton, with extra foam for suppor and protection.
Delivery Time
40-50 days after order confirmed or contact us for more accurate time-frame.
