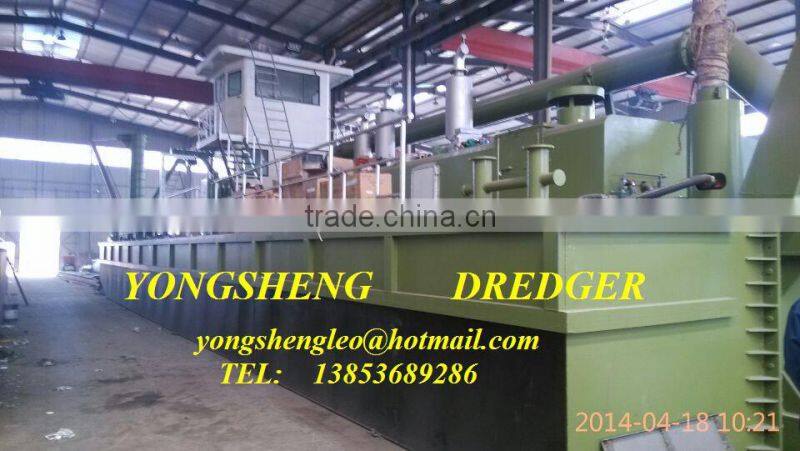

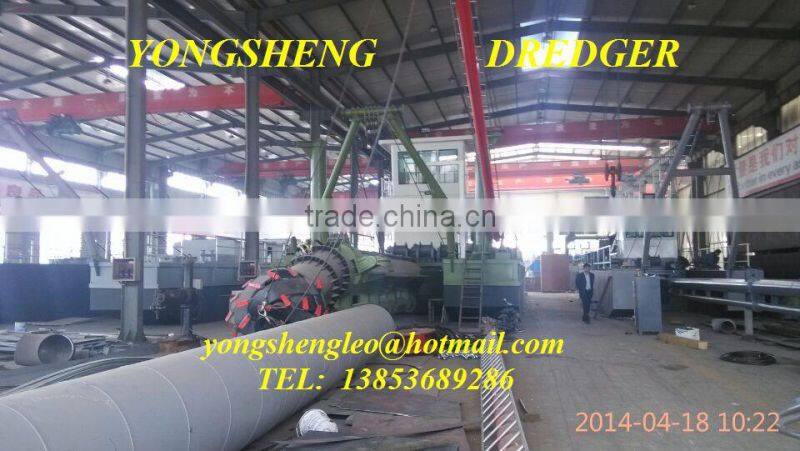

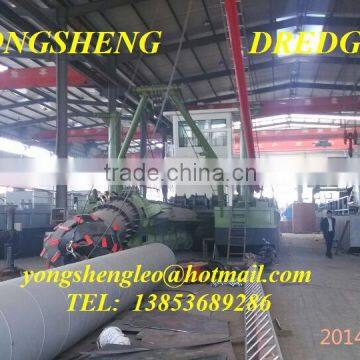

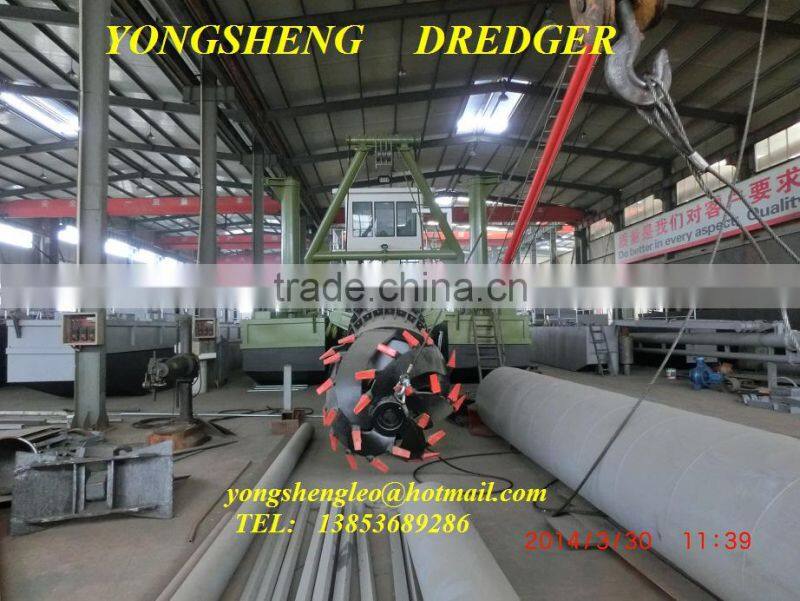

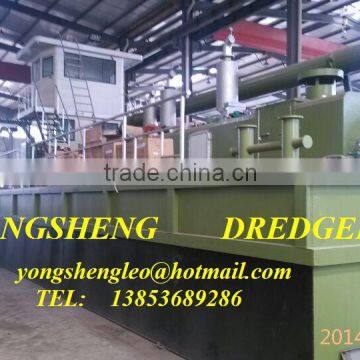

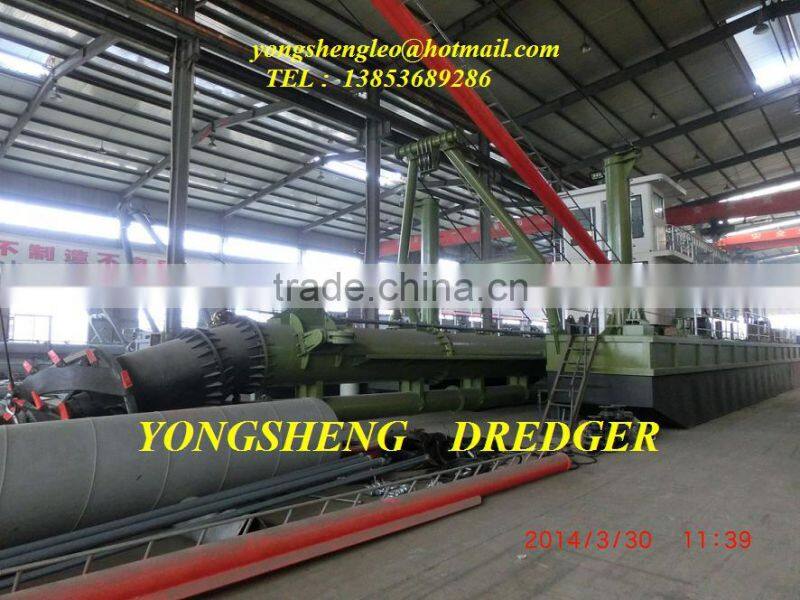

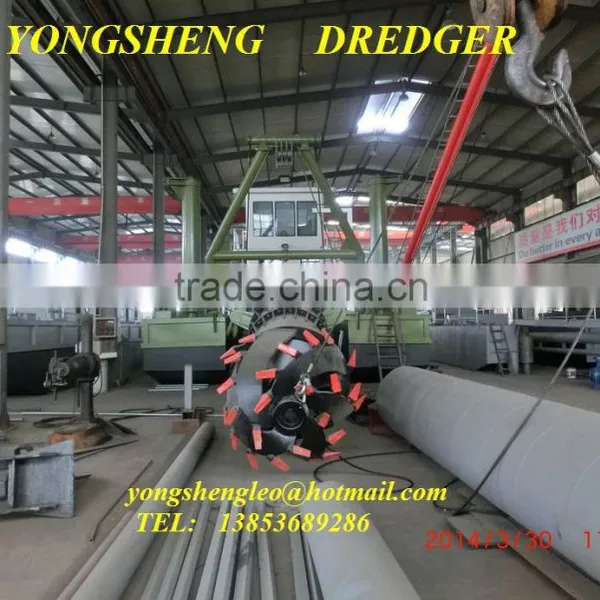

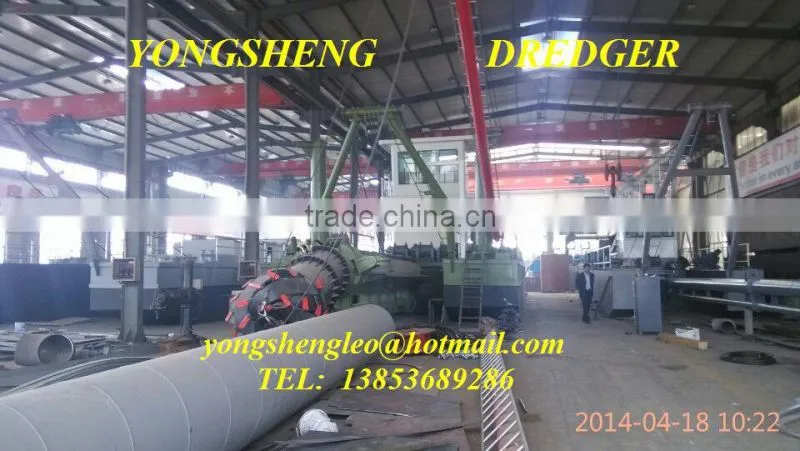

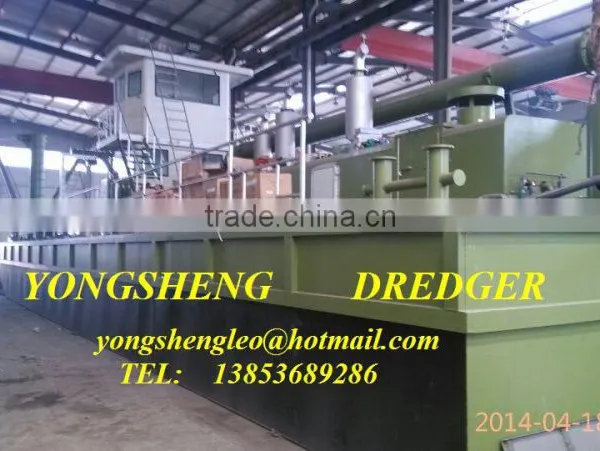

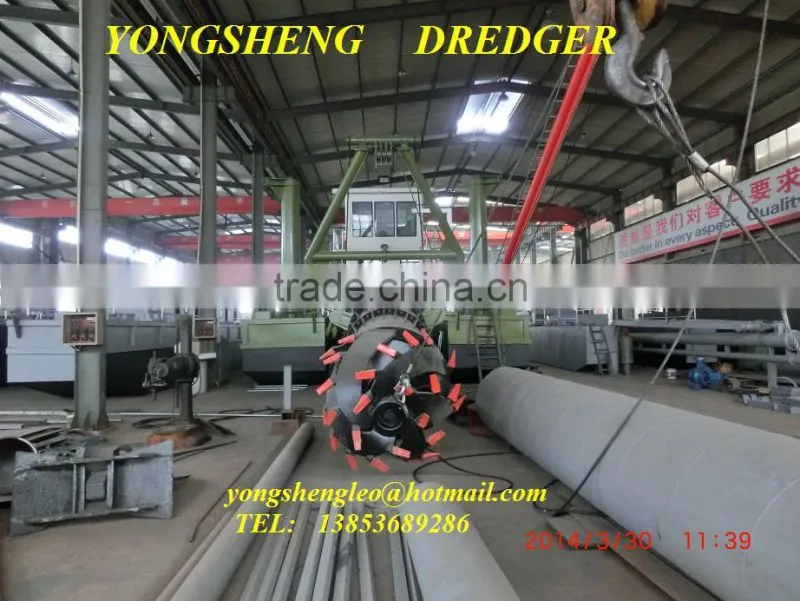

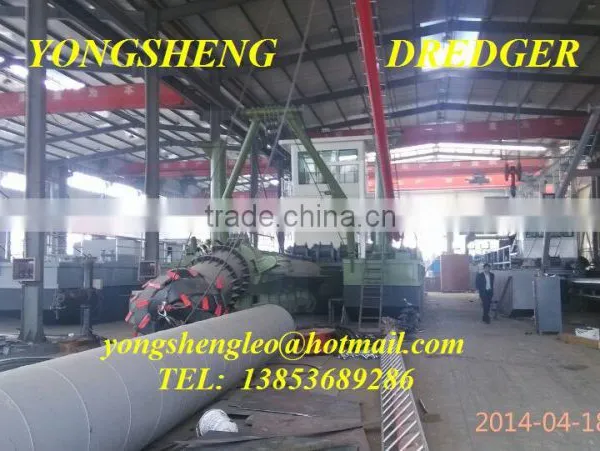

Cutter Suction Pump Dredger

Name: Cutter Suction Pump Dredger
Brand: YONGSHENG
SKU: 143489962
Availability: InStock

Qingzhou Yongsheng Dredging Equipment Co., Ltd.

US$ 648,000 - 650,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Cutter Suction Dredger

Power Type:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao or Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cutter Suction Dredger

Power Type Diesel

Dredging Depth 15 m

Draught 120 cm

Brand Name YONGSHENG

Model Number P-CSD300

Dimension(L*W*H) 30X7.0X1.8m

Certification bv/zc

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Total length: 30m
Main engine: 705KW
Pump modle: LT14/12G
Pump water flow: 2000square meter per hour
Dredging depteh: 15m

TECHNICAL SPECIFICATION YS-CSD300P
No.	Item	Description	Remark
1.	General Principle
	(1). Overall Length	36m
	(2). Side Pontoon Size	25m
	(3). Main Pontoon Size	16.0m
	(4). Breadth	6.6m
	(5). Moulded Depth	2.0m
	(6). Mean Draft	1.2m
	(7). Dredging Depth	15m
	(8). Pumping Distance	1500m
	(9). Pump Flow Capacity	2000m³/h
	(10).Suction Pipe Dia	450mm	Out Diameter
	(11) Discharge Pipe Dia	450mm	Out Diameter

2.	Main Pontoon
	(1). Dimension	16m3.0m2.0m
	(2). Bottom Plate Thick	12mm	CCSB marine plate
	(3). Side Wall Thick	8mm	CCSB marine plate
	(4). Front and Rear	16mm	CCSB marine plate

3.	Side Pontoon
	(1). Dimension	25m1.7m2.0m
	(2). Bottom Plate Thick	10mm
	(3). Side Wall Thick	6mm
	(4). Front and Rear Thick	6mm
