Home > Products > New Products > Chinese cutter suction dredger vessel with output 1200m3/h

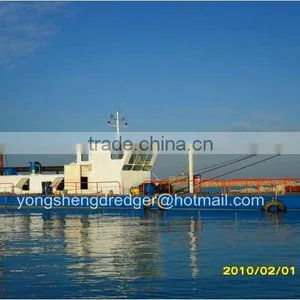

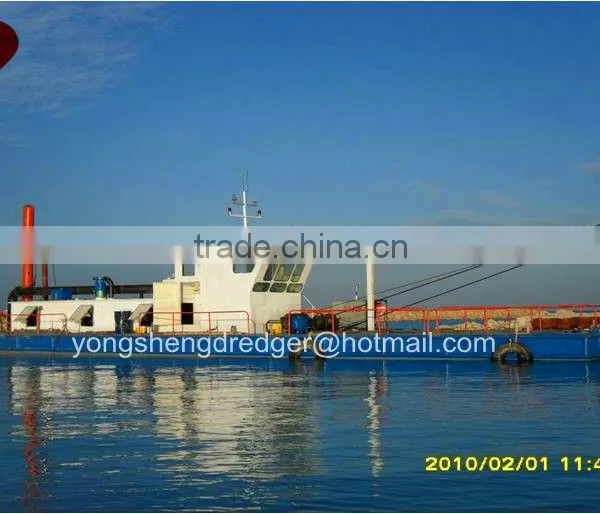

Chinese cutter suction dredger vessel with output 1200m3/h
- 20 Set / Sets per Month
- Qingdao port
You May Like
Product Details
| Condition | New | Type | Cutter Suction Dredger | |
| Power Type | Diesel | Dredging Depth | 10 m | |
| Draught | 110 cm | Place of Origin | Shandong, China | |
| Brand Name | yongsheng dredger | Model Number | CSD 250 | |
| Dimension(L*W*H) | 25*5.2*1.6 | Weight | 100ton | |
| Certification | ISO9001,ZC | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Chinese cutter suction dredger vessel with output 1200m3/hPLC & hydraulic system
name-brand manufacture of dredger
dredge
Chinese cutter suction dredger vessel with output 1200m3/h
There are some dredgers in stock and we can deliver them at any time.Low price,good quality!
- 1. FEATURES
1) Completely assembled and fully tested before delivery
2) Simple, rapid assembly and dismantling
3) Standard design, allowing early delivery and low price
4) Spare parts available from stock
5) Free for one set of spare parts
6) Can be delivered to any location where need dredging
7) Responsible for installation and training of operators in the dredging place
8) Transportable by road, rail or sea
9) Reliable engine capability , dredging pump capability and hydraulic system
10) Fresh water engine cooling system
11) Efficient fuel consumption
12) One-man operate dredger by Programmable Logic Controller ( PLC system )
13) Airconditioning – Vessel Standard equipment
14) Wide range of optional equipment available
| type | YS-250 |
| total length | 25m |
| hull length | 18m |
| hull depth | 1.6m |
| hull width | 5.2m |
| main power | 450kw |
| pump model | 12/10G-G |
| suction pump dia | 300mm |
| discharge pump dia | 250mm |
| water flow | 1200m³h |
| dredging depth | 10m |
| discharge distance | 1000m |
| working weight | 100ton |
| spuds pile | Φ377mm |
| winch | 3sets |
| delivery time | 80days |
