Place of Origin
Shandong, China
Brand Name
Yongsheng
Model Number
SDR33
Material
PE
Specification
140~1200mm
Length
in client's order
Thickness
5~70mm
Specifications

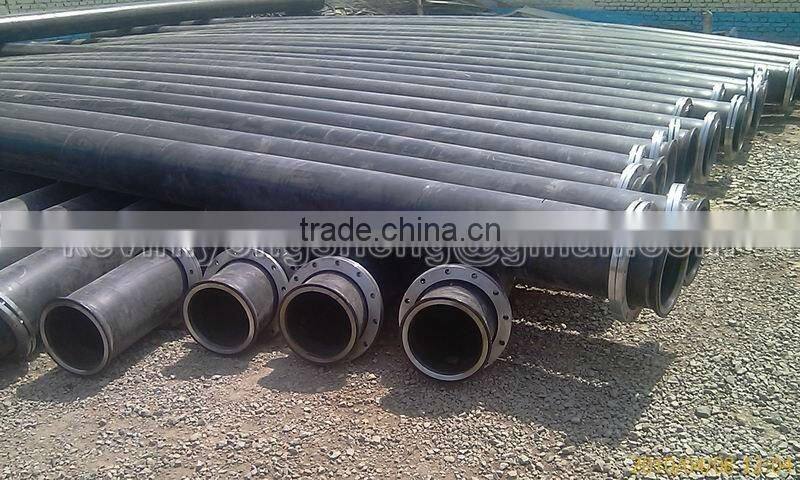

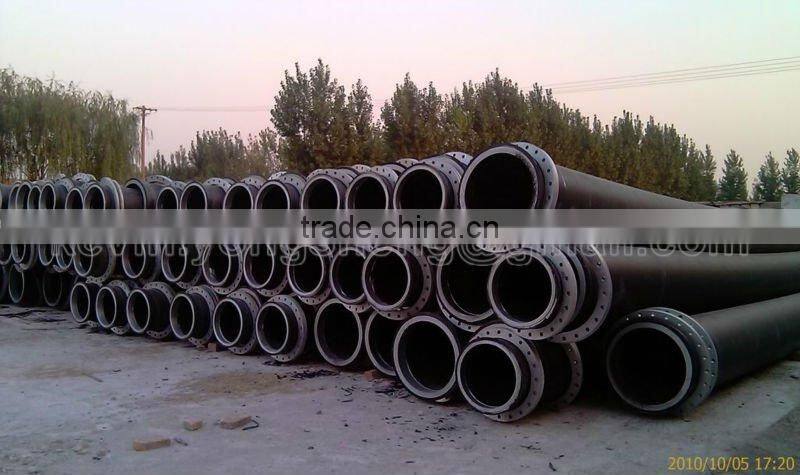

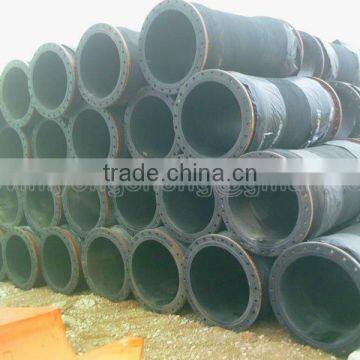

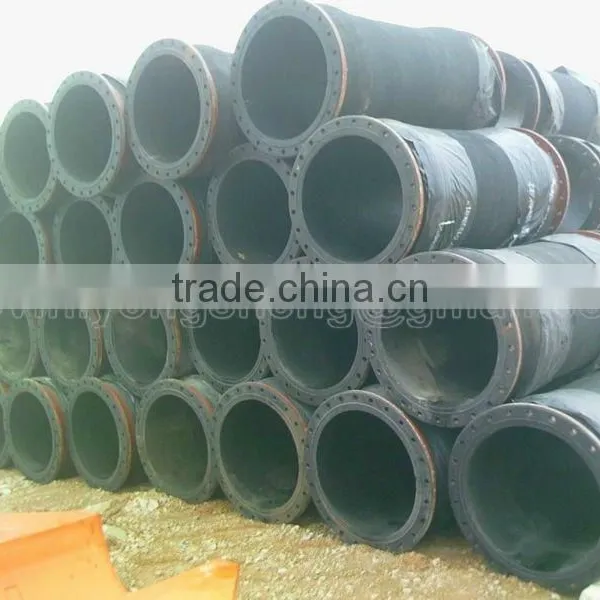

dredge pipe1. Out side dia: 140~1200mm
2. Wall thickness: 5~70mm
3. Pressure nominal: 0.4~1.6Mpa
| HDPE dredge pipe specification | ||||||
| Nominal Outside Diameter(mm) | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| Nominal pressure(Mpa) | Nominal pressure(Mpa) | Nominal pressure(Mpa) | Nominal pressure(Mpa) | Nominal pressure(Mpa) | Nominal pressure(Mpa) | |
| 0.4 | 0.6 | 0.8 | 1 | 1.25 | 1.6 | |
| Wall thickness(mm) | Wall thickness(mm) | Wall thickness(mm) | Wall thickness(mm) | Wall thickness(mm) | Wall thickness(mm) | |
| 140 | 5 | 6 | 7 | 8 | 10 | 13 |
| 160 | 7 | 7.5 | 8 | 10 | 12 | 15 |
| 180 | 7 | 7.5 | 9 | 11 | 13 | 17 |
| 200 | 7.5 | 8 | 10 | 12 | 15 | 18 |
| 225 | 7.5 | 9 | 11 | 13 | 17 | 21 |
| 250 | 8 | 10 | 12 | 15 | 18 | 23 |
| 280 | 9 | 11 | 13 | 17 | 21 | 25 |
| 315 | 10 | 12 | 15 | 19 | 23 | 29 |
| 350 | 12 | 14 | 17 | 21 | 26 | 32 |
| 400 | 12 | 15 | 19 | 24 | 29 | 36 |
| 425 | 13 | 15 | 20 | 25 | 33 | 42 |
| 450 | 14 | 17 | 21 | 27 | 34 | 45 |
| 500 | 15 | 19 | 23 | 30 | 37 | 48 |
| 560 | 17 | 21 | 26 | 33 | 41 | 51 |
| 630 | 19 | 24 | 30 | 37 | 46 | 57 |
| 710 | 21 | 27 | 33 | 42 | 52 | |
| 800 | 24 | 30 | 38 | 47 | 58 | |
| 850 | 26 | 32 | 40 | 50 | ||
| 900 | 28 | 34 | 42 | 53 | ||
| 950 | 30 | 36 | 45 | 56 | ||
| 1000 | 31 | 38 | 47 | 59 | ||
| 1050 | 32 | 40 | 49 | 61 | ||
| 1100 | 33 | 42 | 51 | 63 | ||
| 1150 | 35 | 44 | 53 | 66 | ||
| 1200 | 40 | 45 | 55 | 70 | ||
