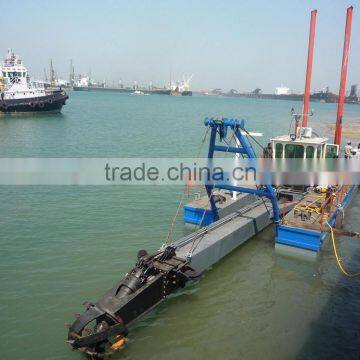

China Cutter Suction Dredger Manufacturer

Name: China Cutter Suction Dredger Manufacturer
Brand: Yongsheng
SKU: 143489754
Availability: InStock

US$ 750,000 - 800,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Cutter Suction Dredger

Place of Origin:

Shandong, China

Qingzhou Yongsheng Dredging Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cutter Suction Dredger

Place of Origin Shandong, China

Brand Name Yongsheng

Model Number CSD-350

Specifications

1. Total length: 37m
2. Main power: 1000KW diesel
3. Pump model: 16/14G-GH
4. Dredging depth: 14-16m

The CSD350 Dredger Specification

==================================================================================================

1. GENERAL

No.	Item	Specification
1	Total Length (with ladder raised) approx	35m
2	Length over pontoons	25.00m
3	Breadth	7.2m
4	Depth	1.90m
5	Main pontoon	18.00m × 3.50m × 1.90m
6	Side pontoon	25.00m × 1.850m × 1.90m
7	Mean draught with full bunkers approx	1.3m
8	Maximum standard dredging depth	15.00m
9	Dredge pump water flow capacity	3000m3/h
10	Standard discharge distance	1500m
11	Cut Width @ Maximum digging depth	35m
12	Cut Width @ Minimum digging depth	44m

2. Marine Diesel Engine to drive dredger pump

Marine Diesel Engine to drive hydraulic system

3. Dredge Pump

Item	Parameters	Note
Made	Warman Technology, Australia	SHIJIAZHUANG PUMP GROUP
Type	350G-H	Professional Dredge Pump
Capacity	3000m3/h
Head	65 m
Speed	400—550 r/min
Efficiency	74—78%
NpSHr	small than 4.5 m
Pump Suction Diameter	400 mm
Pump discharge Diameter	350 mm
Max.Diameter of Flowed Partice	201 mm
Solid Capacity	450m³/h	Count 15% solid
