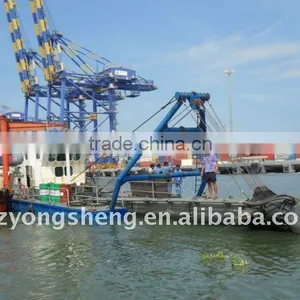

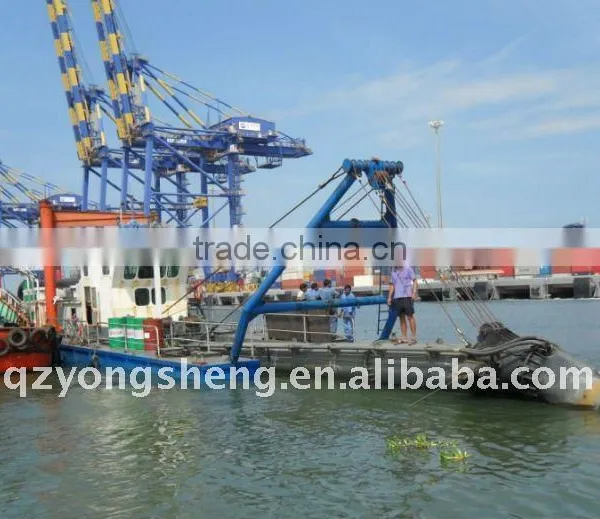

Cutter Suction Dredger

Cutter Suction Dredger

Model: YS-CSD300

Item

Specification

Remark

Total Length

35m

Ladder raised

Hull Length

25.2m

Hull depth

1.80m

Hull width

6.00m

Mean draft

1.20m

Dredging Depth

15.0m

Internal diameter of suction pipe

Φ400mm

Internal diameter of discharge pipe

Φ400mm

Discharge Distance

1500m

Main Engine

Power: 820kw/1100HP

Power Pump

WEICHAI  Diesel Engine

Type: 8200ZLC

Standby Diesel Engine Generator Set

24kw/32HP

WEICHAI POWER

Dredging Pump

Model : 300G-G

SHIJIA

ZHUANG PUMP

Warman technic of

Australia

Water flow: 2000m³/hr

Total head: 65m

Hydraulic coupling

Model: YOTZJ650

CNPC JICHAI

Variable –Speed

Hydraulic coupling

Transmission

Hydraulic Winch

Cutter ladder winch: 60KN

 1set

Swing winch: 60KN

 2sets

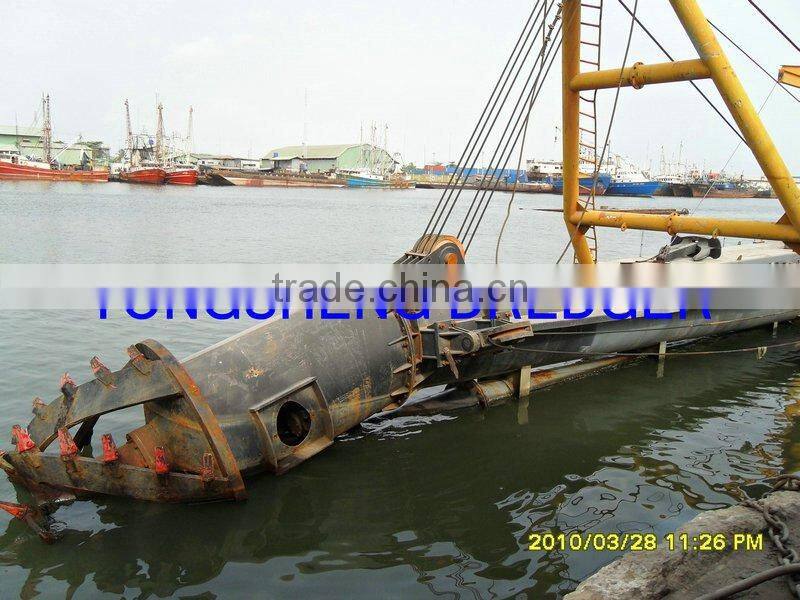

Cutter

Cutter Diameter: 1500mm

Power: 120kw/162HP

Speed: 0-30rpm

Spud hoisting hydraulic cylinder

Travel: 2.50m

2 pieces

Cylinder diameter: 160mm

Working pressure: 16Mpa

Spud

Spud Outside Diameter:

Φ450mm

2 pieces

Spud Length: 18m/piece

Deck Crane

Lifting power: 3.0 Tons

 1 piece

Hall anchor for swing wires

500 kg / piece

 2 pieces

Total max weight when working

160T

Operation System

PLC Hydraulic Operation System

Operating Cabin

With air condition,

All the operating system with English description.

A small chart table and a low sofa for two persons to sit.

Room below operating cabin

To provide toilet and shower facility.

Steel wire rope

Have safe package on each joint

Spray-paint

3 layers, Anti rust.

Zinc Anode

8 x 1.5kg Zinc Anode on dredger’s hull with one year protection guarantee.
