Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring

Wuxi Rongyi Plastic Electric Appliance Co., Ltd.
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring thumbnail-1
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring thumbnail-2
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring thumbnail-3
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring thumbnail-4
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring thumbnail-5
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring thumbnail-6
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring photo-1
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring photo-2
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring photo-3
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring photo-4
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring photo-5
Wuxi Rongyi PVC Steel Wire Hose With Spiral Spring photo-6
US$ 0.4 - 10 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ROYFLEX
Model Number:
Pvc Pipe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name ROYFLEX
Model Number Pvc Pipe
Material PVC
Specification Customized
Length 1.8m 3m 5m or customized, 5m 7.5m 10m 15m or customized
Thickness 2~8mm
Standard ISO2008, ISO2008
our company
Name
Wuxi Rongyi Plastic Electric Appliance Co., Ltd.
Established Year
1998
Yearly Capacity
15,000,000m
R&D department
6 persons
Certification
ISO9001 ;Rohs ;Reach ;PAHS
Test Equipment
high and low temperature test instrument etc
Vacuum degree reflectoscope reflector
Patent
1
Our partner
LIDL ALDI WORKZONE BOSCH EINHELL
Product Description

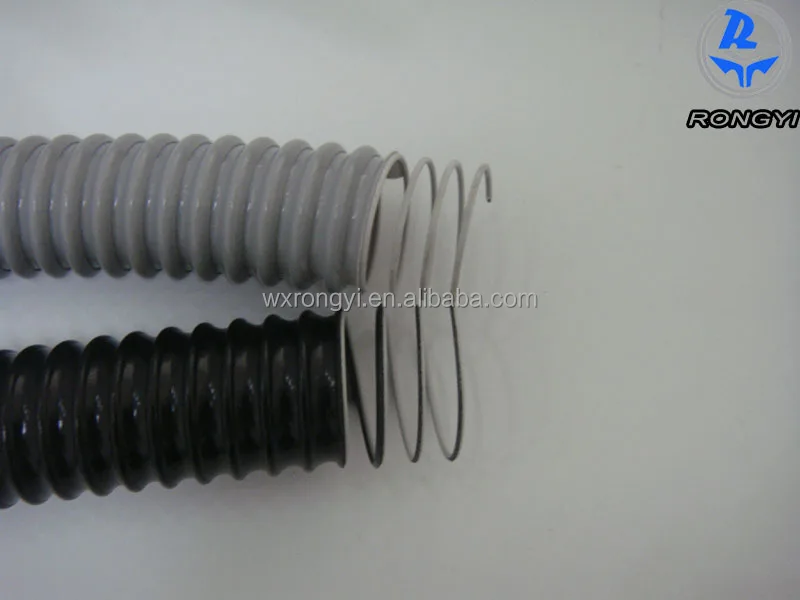

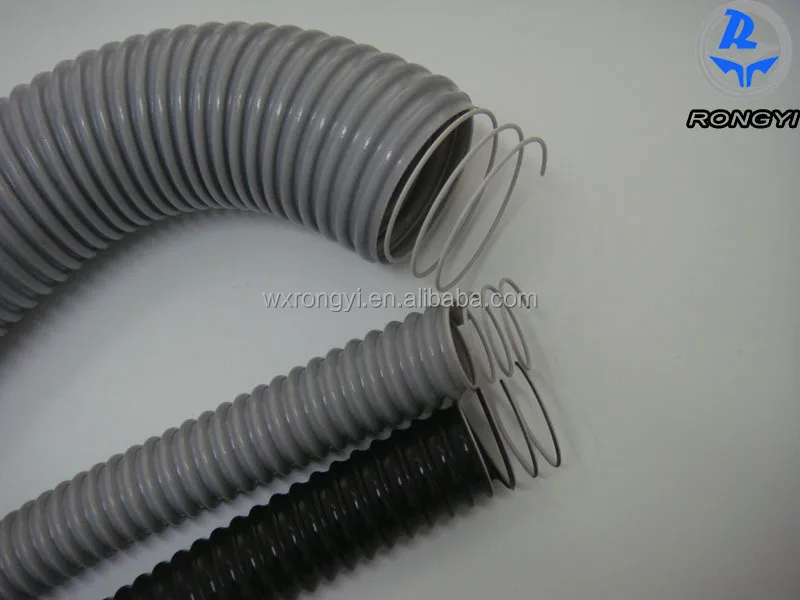

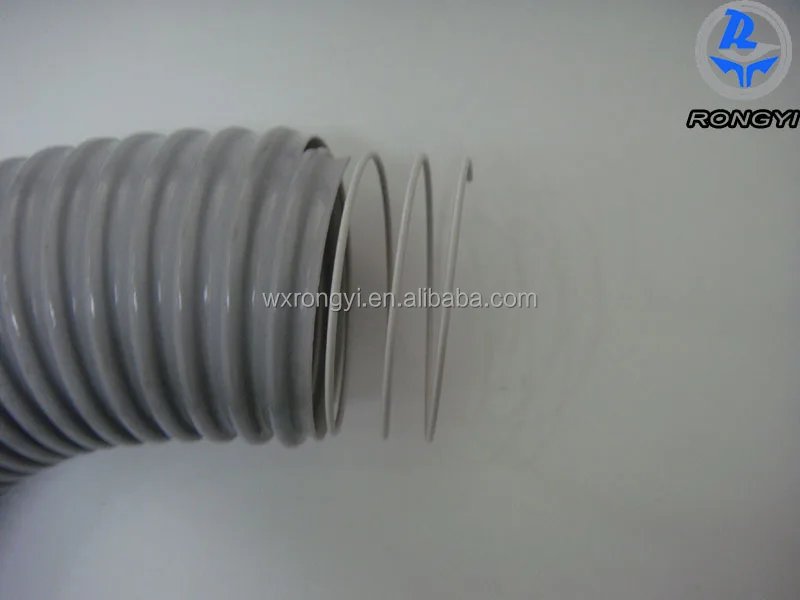

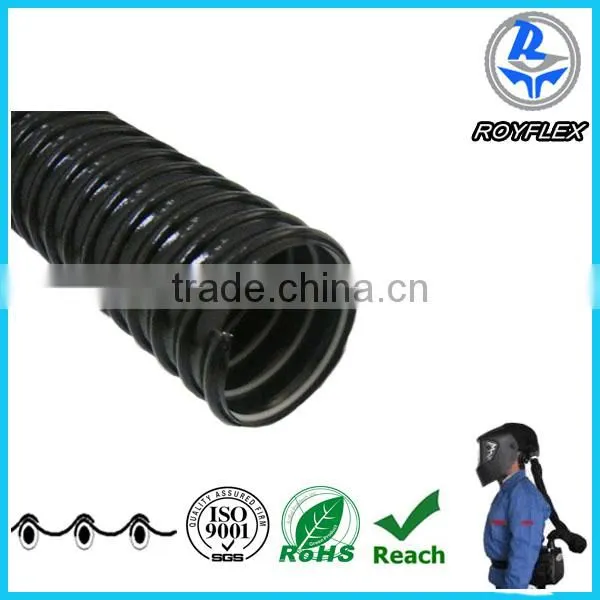

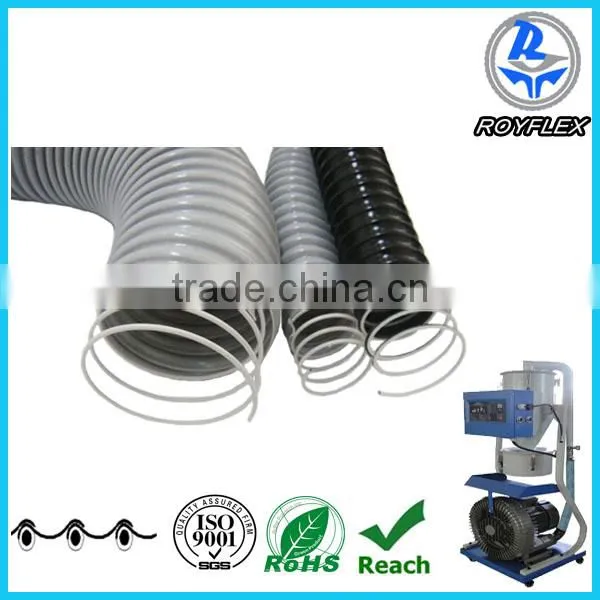

1.Name:Wuxi rongyi PVC Steel Wire Hose with Spiral Spring
2. Material:PVC
3. Inner Diameter: 25mm~200mm
4. Thickness: 2-8mm
5. Length: 1m,1.8m,2m... ≤15m/roll
6. Standard Color:black,sliver grey,other color customed
7. highly flexible PVC hose,outside rib structure,reinforced with PVC coated steel wire

hose size detail
Item
model

ID(mm)
OD(mm)
thread pitch(mm)
hose wall material
hose wall thickness
framework material
gram weight (g/m)
length(m)
1
GSBW025.0180.00
25
30
9.0
PVC Elastic material
0.6±0.1
1.0 mm plastic coated wire
180
2.0-15
2
GSBW030.0200.00
30
39.5
9.0
PVC Elastic material
0.6±0.1
1.0 mm plastic coated wire
200
2.0-15
3
GSBW032.0220.00
32
38
9.0
PVC Elastic material
0.6±0.1
1.0 mm plastic coated wire
220
2.0-15
4
GSBW035.0240.00
35
40.5
9.0
PVC Elastic material
0.6±0.1
1.1mm plastic coated wire
240
2.0-15
5
GSBW038.0275.00
38
43
9.0
PVC Elastic material
0.6±0.1
1.1 mm plastic coated wire
275
2.0-15
6
GSBW040.0300.00
40
45.5
9.0
PVC Elastic material
0.7±0.1
1.1 mm plastic coated wire
300
2.0-15
7
GSBW045.0380.00
45
49.5
9.5
PVC Elastic material
0.7±0.1
1.1 mm plastic coated wire
380
2.0-15
8
GSBW050.0450.00
50
55
9.5
PVC Elastic material
0.7±0.1
1.1 mm plastic coated wire
450
2.0-15
GSBW065.0.01
65
PVC Elastic material
550
9
GSBW075.0600.00
75
81
11.0
PVC Elastic material
0.8±0.1
1.2 mm plastic coated wire
600
2.0-15
10
GSBW100
PVC Elastic material
0.8±0.1
1.2 mm plastic coated wire
2.0-15
11
GSBW125
PVC Elastic material
1.0±0.1
1.5 mm plastic coated wire
2.0-10
12
GSBW150
PVC Elastic material
1.0±0.1
1.5 mm plastic coated wire
2.0-10
13
GSBW200
PVC Elastic material
1.0±0.1
1.5 mm plastic coated wire
2.0-10
products show
about us
Our Service

1. Reply your inquiry within 24 hours

 2. OEM service is provided

3. Sample order is acceptable

4. Shipment booking is provided

FAQ

Q: How long is your delivery time?

A: Generally it is 25 days.

Q: Do you provide samples ? is it free or extra

A: Yes, we could offer the sample for free charge but do not pay the cost of freight

Q: What is your terms of payment ?

A: Payment 50% T/T in advance ,balance before shippment. We accept T/T, Paypal,Western Union and so on

Q: Which port is the nearest from your company ?

 A: Shanghai Port
