Alkali--proof Fiberglass Mesh
- 100000 Square Inch / Square Inches per Month
- XINGANG
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | WEIHAO | Model Number: | wh |
Application: | Wall Materials | Weight: | 60g/m2-300g/m2 | Width: | 1M |
Mesh Size: | 5*5mm, 6*6mm, 10*10mm | Weave Type: | Plain Woven | Yarn Type: | C-Glass |
Alkali Content: | Medium | Standing Temperature: | 500 |
Product Description
1). Mesh size: 5mm*5mm, 4mm*4mm, 4mm*5mm, 10mm*10mm, 12mm*12mm;
2). Weight (g/m2): 45g, 60g, 75g, 90g, 110g, 125g, 145g, 160g, 200g, 250g;
3). Length/roll: 40-200m/roll standard length: 50m/roll
4). Width: 0.05-1m standard width: 1m
5). Color: white (standard), blue, green, or other colors;

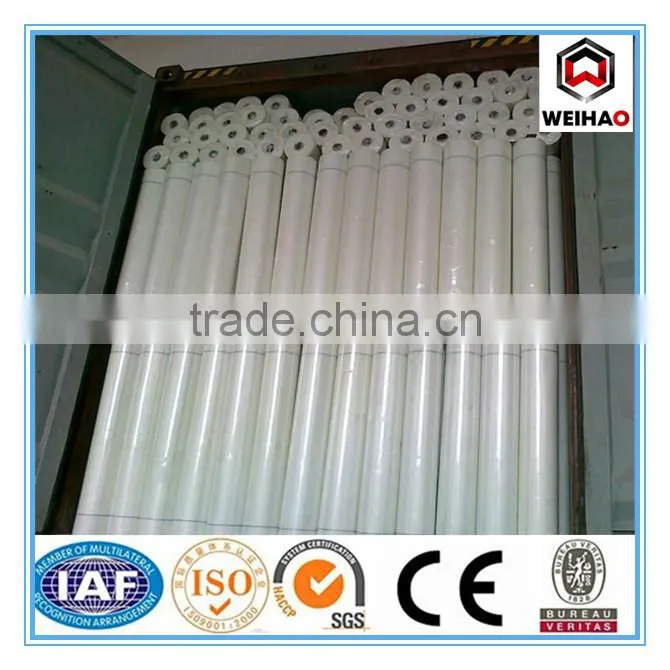

6). Package:standard packing: plastic bag inside; woven bag outside.
Yarn(Tex) | Mesh(mm) | Density Count/25mm | Finish Weight(g/m2) | Tensile Strength × 20cm | Woven Structure | Content of resin%(≥) | |||||
Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | ||||
5x5-70 | 45×2 | 200 | 5 | 5 | 5 | 5 | 70 | 550 | 850 | Leno | 16 |
5x5-80 | 67×2 | 200 | 5 | 5 | 5 | 5 | 80 | 700 | 850 | Leno | 16 |
5x5-90 | 67×2 | 250 | 5 | 5 | 5 | 5 | 90 | 700 | 1050 | Leno | 16 |
5x5-110 | 100×2 | 250 | 5 | 5 | 5 | 5 | 110 | 800 | 1050 | Leno | 16 |
5x5-125 | 134×2 | 250 | 5 | 5 | 5 | 5 | 125 | 1200 | 1300 | Leno | 16 |
5x5-135 | 134×2 | 300 | 5 | 5 | 5 | 5 | 135 | 1300 | 1400 | Leno | 16 |
4x4-135 | 100×2 | 250 | 4 | 4 | 6 | 6 | 135 | 1000 | 1300 | Leno | 16 |
5x5-145 | 134×2 | 360 | 5 | 5 | 5 | 5 | 145 | 1200 | 1300 | Leno | 16 |
4x5-150 | 134×2 | 300 | 4 | 5 | 6 | 5 | 150 | 1300 | 1300 | Leno | 16 |
5x5-160 | 134×2 | 400 | 5 | 5 | 5 | 5 | 160 | 1450 | 1600 | Leno | 16 |
4x4-160 | 134×2 | 300 | 4 | 4 | 6 | 6 | 160 | 1550 | 1650 | Leno | 16 |
4x5-165 | 134×2 | 350 | 4 | 5 | 6 | 5 | 165 | 1300 | 1300 | Leno | 16 |
Fiberglass mesh usage
A.75g / m2 Fiberglass mesh used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.

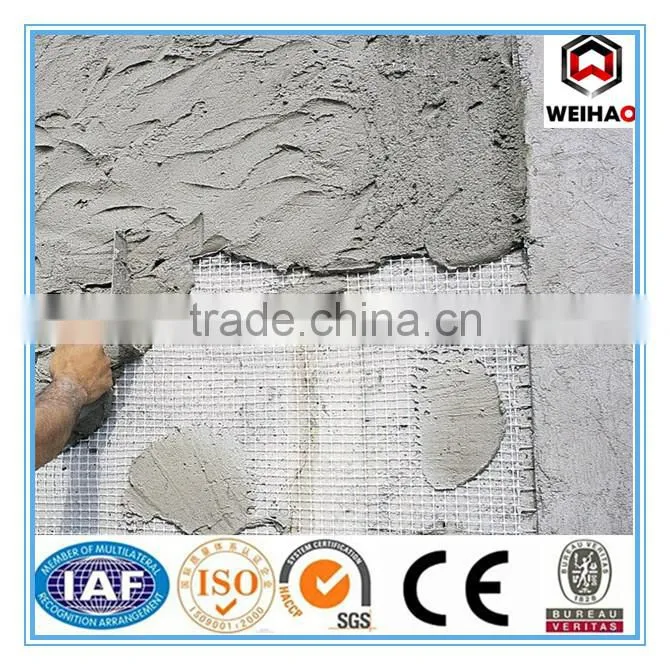

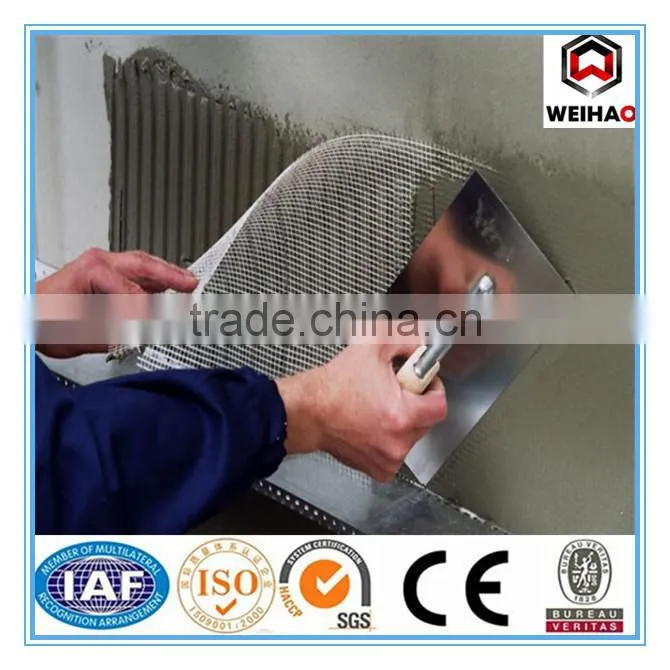

B.110g / m2 Fiberglass mesh is widely used in indoor and outdoor walls, prevent the various materials (such as brick,
light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .

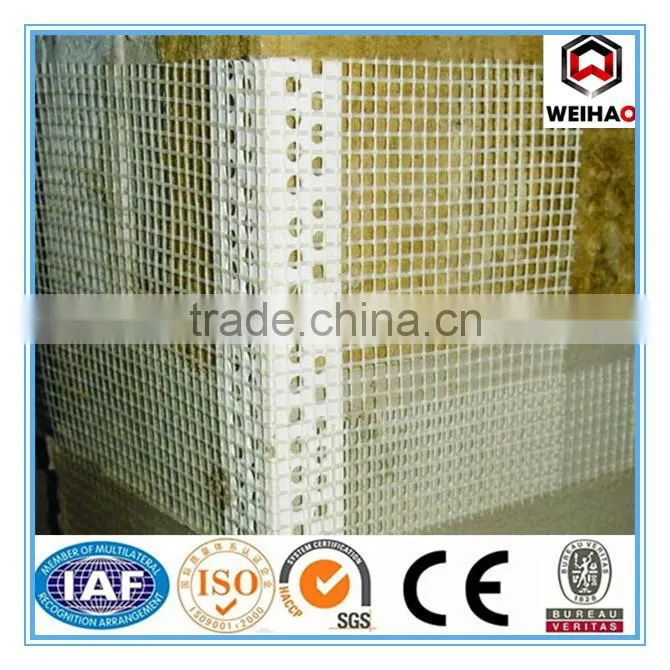

C. 145g/m2 Fiberglass mesh used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures),
to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).
D. 160g / m2 Fiberglass mesh used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by
providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.
The above terms could be made by customers requires.
1. Reasonable price, best quality.
2. 24 hours on-line service, efficient and convenient after-sale service.
3. We have our own factory and can provide the direct price.
