Swimming Pool Sand Filter Swimming Materials and Equipments

FOB Price

US$ 50 - 100 / Set

1 Set(Min. Order)

Port Guangdong Huangpu
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	FINNFORST
Model Number	swimming pool equipment		Type	Filter

Product Description

Swimming pool sand filter swimming materials and equipments

Best price swimming pool sand filter, hayward filter, swimming pool equipment

< 12years manufacturer since 2005, give you more competitive price and professional information;>

< Passed SGS , ISO and CE strict authentication, make sure the quality for you;>

< As a factory, provide you customize design services.>

Product Description

1. Sand filter swimming materials and equipments description:

Swimming Pool Equipment: Fibreglass top mount sand hayward filter are constructed by the latest Engineering Technology. The improvement of flow ability provides an extra pure water filtration. The fiberglass winding design allows the filter to have extra strength and resistance to chemical and corrosives. Fiberglass Sand Hayward Filters are the most recommendable equipment for the applications of swimming pool, agriculture and industrial water treatment.

2. Swimming material Sand Filter Features sand filte

1). Made of fiberglass and polyester;

2). Easy to install and maintain.

3). Top diffuser ensures even distribution of water over the top of the sand bed;

4). Air release valve enables easy release of trapped air during operation of the filter;

5). Materials used are dependable, non corrosive and suitable for all bad weather performance;

6). Large pressure sand/water drain for rapid winterizing or servicing;

7). Easy to use water drain plug and multiport valve lets you select any of the valve/filter operation with a simple lever action;

8). UV resistance surface allows the filter to work under direct sunlight;

3. Sand filte Filter Applications

*In-ground & above-ground swimming pool

*Garden fountain

*Fish ponds

*Industrial water treatment

*Agricultural irrigation filtration

*Water park pavilions, etc.

4.Swimming pool Filter Characteristics

Model	Tank dia (mm)	Valve size (mm)	Height(mm)	Filter area (m²)	Silica sand (kg)	Design flow(m³/h)
Q400	400	40	740	0.13	30	6.3
Q450	450	40	800	0.16	40	8.0
Q500	525	40	840	0.22	85	11.5
Q650	625	40	960	0.33	155	16.5
Q700	710	40	1025	0.38	185	19.2
Q800	800	50	1200	0.50	250	25.2
Q900	900	50	1300	0.64	350	30
Q1000	1000	50	1400	0.79	500	34
Q1100	1100	50	1480	0.95	650	38
Q1200	1200	50	1600	1.13	700	42

Large top mount filter

Model	Tank dia (mm)	Valve size (mm)	Height(mm)	Filter area (m²)	Silica sand (kg)	Design flow(Lpm)
Q1400	1400	100	1580	1.54	1900	1300
Q1600	1600	100	1700	2.00	2600	1700
Q1800	1800	150	1850	2.54	3240	2100
Q2000	2000	150	2000	3.14	4000	2650
Q2350	2350	200	2350	4.35	5000	3350
Q2500	2500	200	2600	4.91	7000	3920

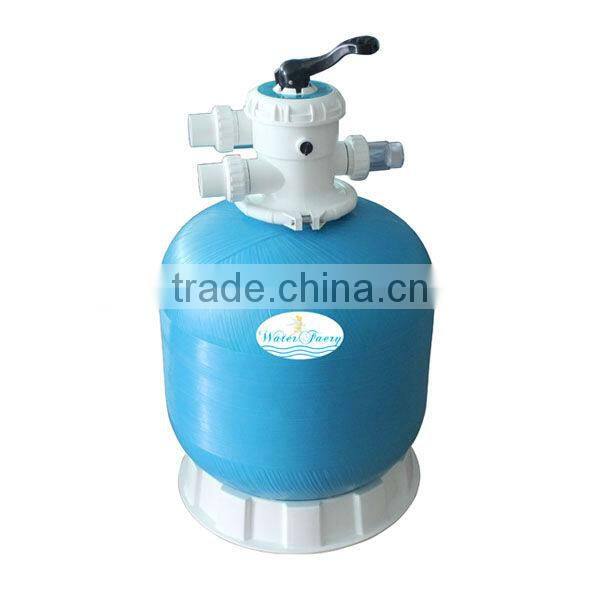

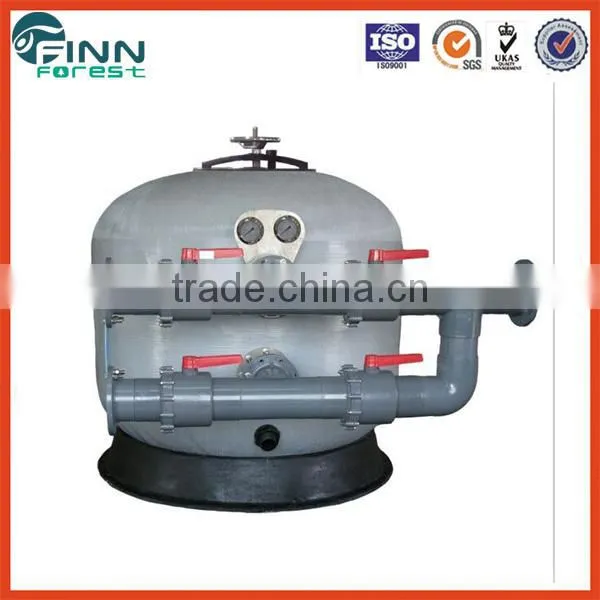

5.Water Filter pictures sand filter

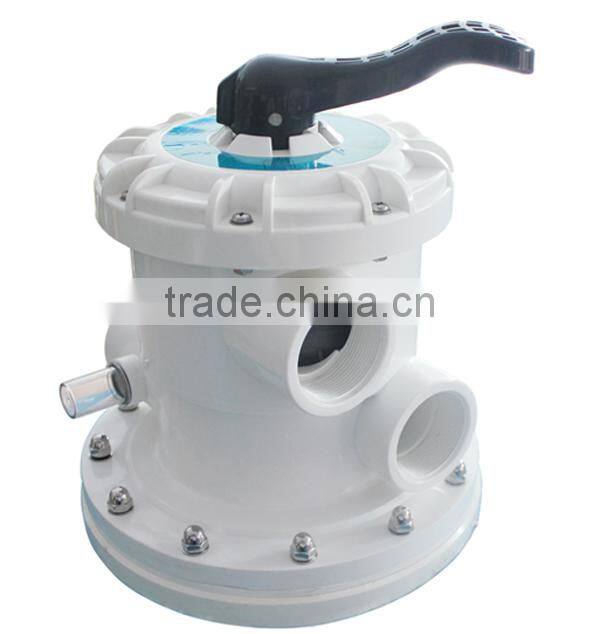

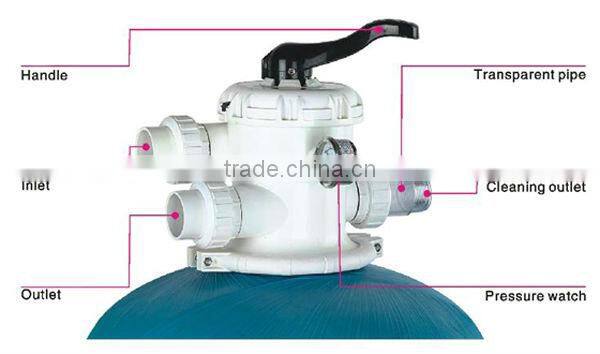

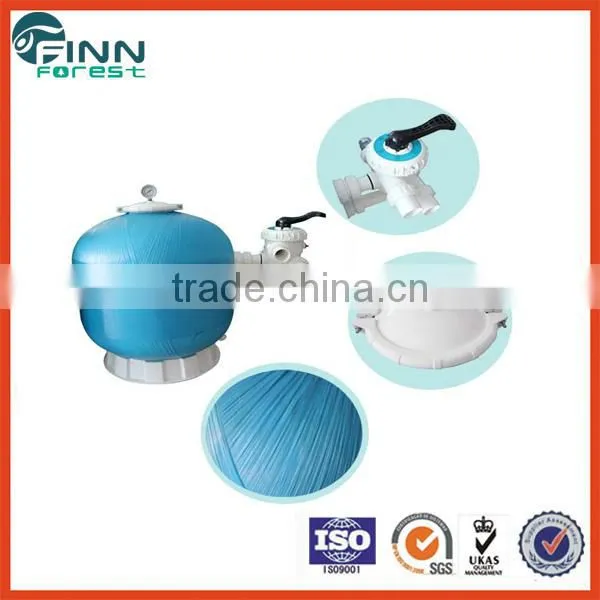

6.Swimming Pool Filter detail picture

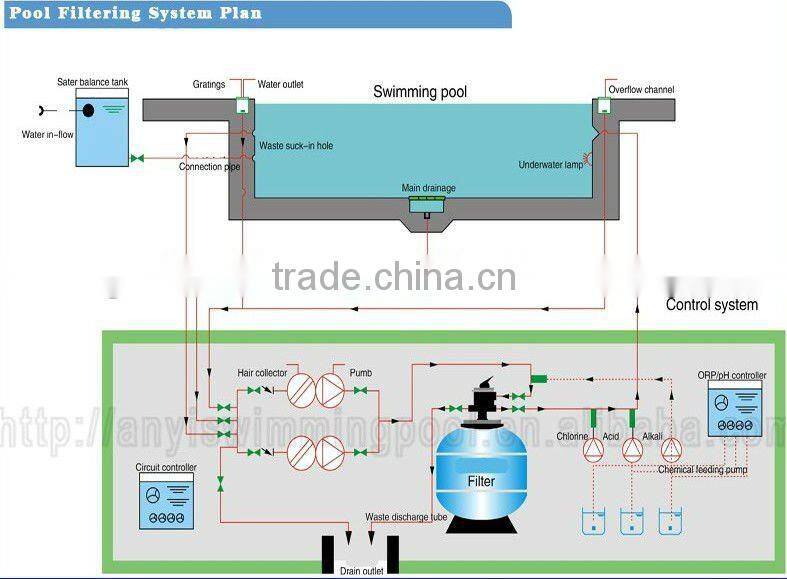

7.Hayward Filter working principle

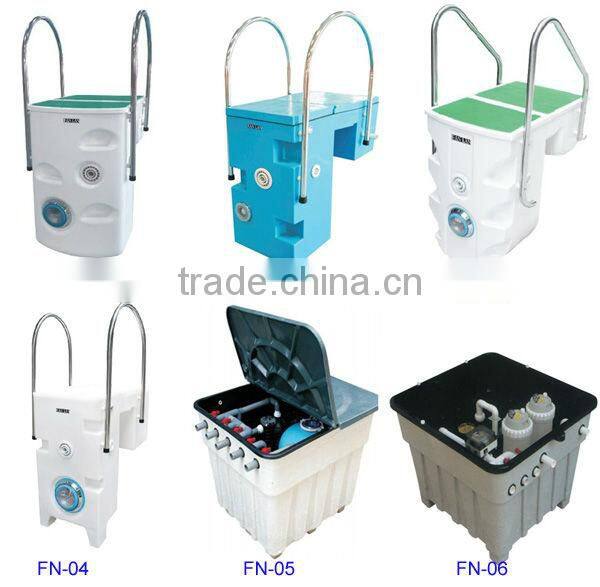

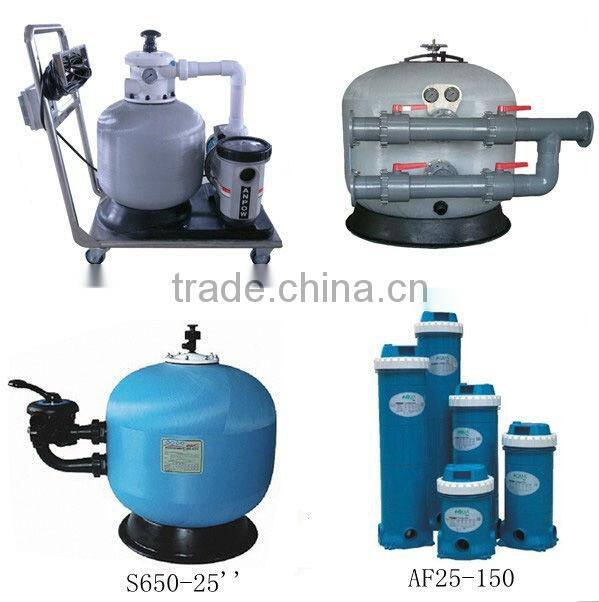

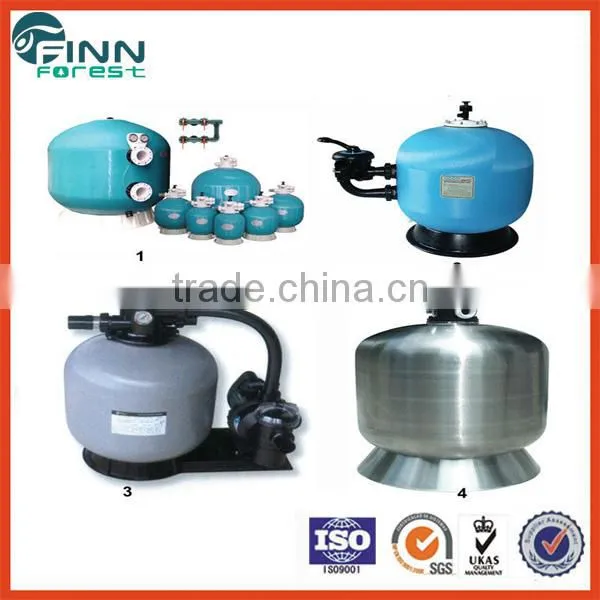

8.Other series Swimming Pool sand Filter

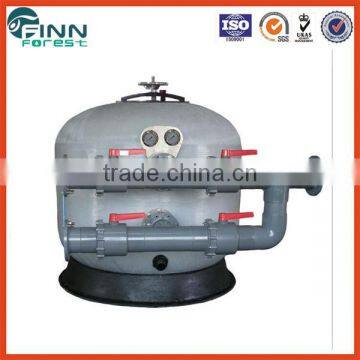

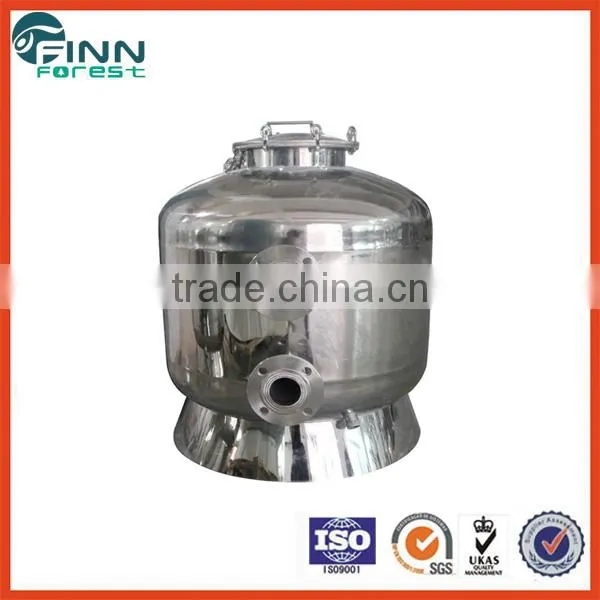

Stainless steel 304 Swimming Pool Sand Filter

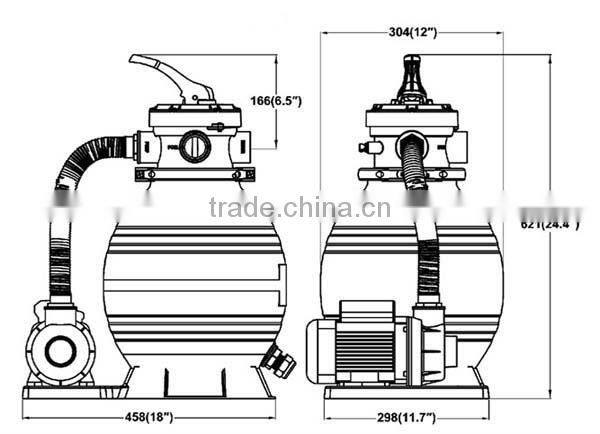

Swimming Pool Sand Filter for home use

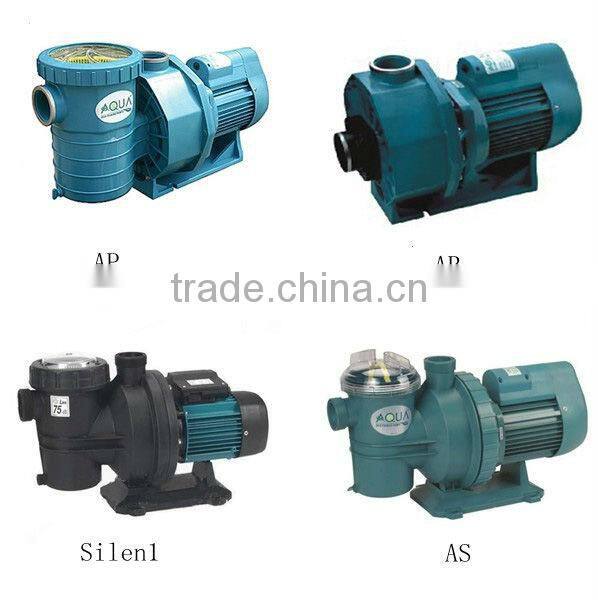

9.Relate Products about Swimming Pool Filter
