Music Fountains Use Stainless Steel Water Fountain Nozzle Design

FOB Price

US$ 2 - 68 / Piece

100 Pieces(Min. Order)

Port huangpu Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Finn Forest
Model Number	ZD		Stone Garden Product Type	Fountains

Product Description

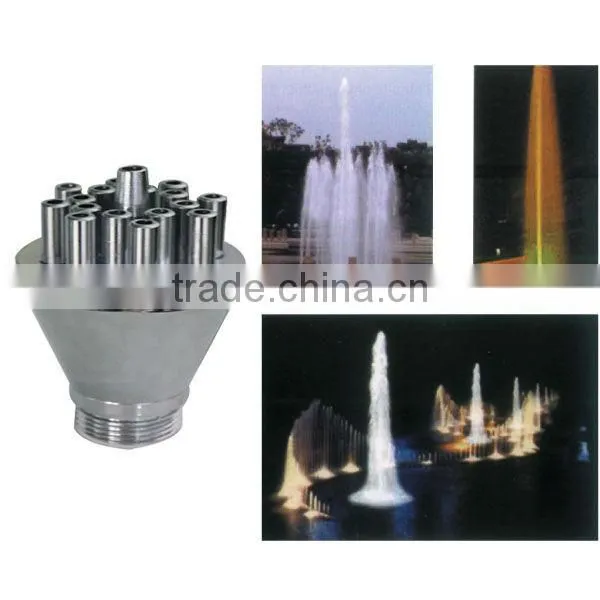

Music fountains use stainless steel water fountain nozzle design

FANLAN High Quality Single Jet Fountain Nozzle may be used in small ponds or basins to obtain a single jet, but more frequently, several are arranged in a group.

Ejective water film like a mushroom
can be single set up, also can Multiple synthesis modelling
multi-stepped water pattern
independent from water level
with flow regulator

1. material: stainless steel/ copper

2. chrome plated is optional

3. different sizes can be made

4. kinds of styles available

5. OEM acceptable

6. products can be made as per clients' requirements

7. welcome to visit our factory

8. The detail information of our fan shape fountain nozzles

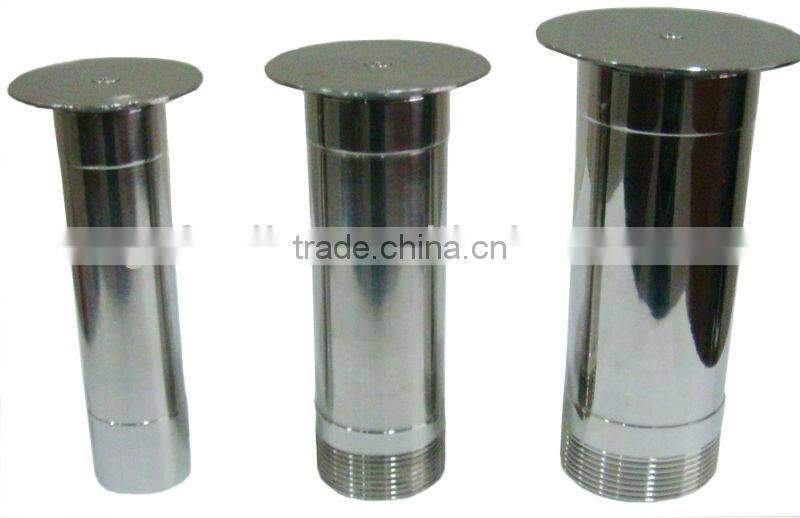

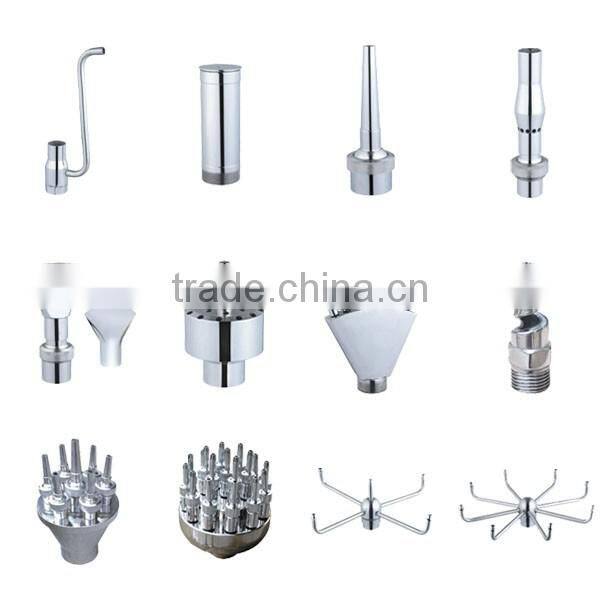

Stainless steel water fountain nozzles

Function of water jet fountain nozzles:

The fountain nozzle is very widly used in fountain design. It can produce jets of different heights and in different directions by changing its angle and water pressure. It is always used in fountains with height

control and program contral.

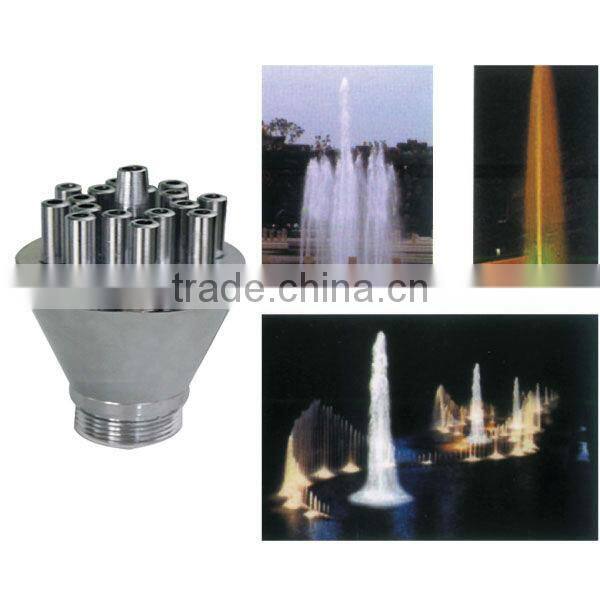

Detail effect of our fountain jet nozzles and actual use

1. Park view spring bubble water jet nozzles

Model	Material	Joint size	Working pressure(Kpa)	Discharge(M3/h)	Height(m)	Diameter(m)	Size(WxH)mm
CH15	Copper planting/SS	1/2"	50-100	1.5-3.0	0.15-0.3	0.1-0.2	17X170
CH20		3/4"	50-100	2.0-5.0	0.2-0.35	0.15-0.3	25X188
CH25		1"	50-100	3.5-8.0	0.3-0.5	0.2-0.4	30X247
CH40		1 1/2"	50-100	10.0-18.,0	0.4-0.8	0.3-0.5	42X28
CH50		2"	60-150	17.0-25.0	0.5-0.8	0.3-0.6	60X330
CH65		2 1/2"	100-200	25.0-40.0	0.5-1.0	0.5-0.7	70X358
CH80		4"	150-300	40.0-55.0	1.0-1.5	0.7-0.9	80X405

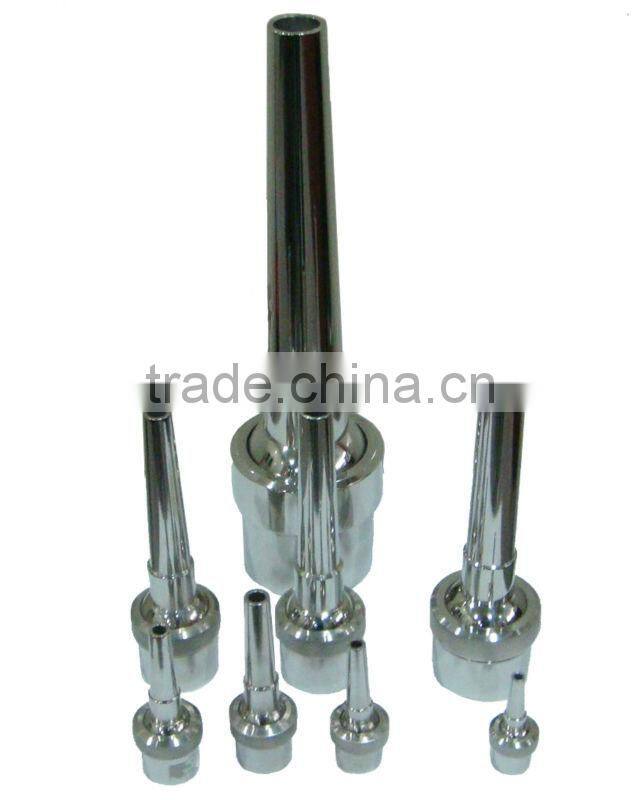

2. Straight spray jet nozzles

Model	Joint size(G)	Pressure(Kpa)	Discharge(M³/h)	Height(m)	Diameter(m)
ZA0	1/4"	15-35	0.2-0.5	0.3-1.0	radial shape
ZA1	3/8"	15-35	0.2-1.0	0.5-1.5	radial shape
ZA2	1/2"	50-150	0.3-1.5	1.0-4.0	radial shape
ZA3	3/4"	50-150	1.0-3.0	1.0-5.0	radial shape
ZA4	1"	50-150	2.0-4.0	3.0-6.0	radial shape
ZA5	1 1/2"	50-150	3.0-6.0	3.0-7.0	radial shape
ZA6	2"	50-150	5.0-8.0	3.0-8.0	radial shape
ZA7	2 1/2"	70-150	10.0-15.0	3.5-10.0	radial shape
ZA8	3"	70-150	10.0-15.0	3.5-10.0	radial shape

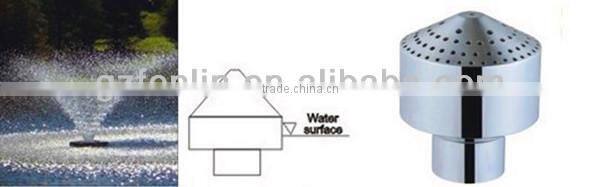

3. Small mushroom water jet nozzles

Model	Joint size(G)	Pressure(kpa)	Discharge(m³/h)	Height(m)	Diameter(m)
MC6	2"	10-15	5.0	0.50	1.2
MC5	1 1/2"	6-10	3.0	0.40	1.0
MC4	1"	6-10	2.0	0.25	0.6
MC3	3/4"	5-8	1.5	0.25	0.5
MC2	1/2"	5-8	1.0	0.20	0.3

4. Fireworks water jet nozzles

Model	Joint size(G)	Pressure(kpa)	Discharge(m³/h)	Height(m)	Diameter(m)
SF6	2"	80	12	2.8	2.9
SF5	1 1/2"	60	10	2.5	2.5
SF4	1"	40	7	2.3	2.3
SF3	3/4"	40	5	2.0	1.9
SF2	1/2"	40	3	1.8	1.8

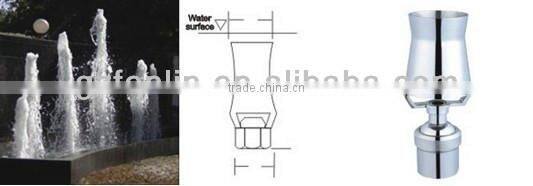

5. Ice tower shape water fountain nozzles

Model	Joint size(G)	Pressure(kpa)	Discharge(m³/h)	Height(m)	Diameter(m)
CF8	3"	50-450	21.0-50.0	1.0-12.0	1.5
CF6	2"	50-450	12.0-25.0	1.0-10.0	1.0
CF5	1 1/2"	20-300	8.0-13.0	1.0-8.0	0.6
CF4	1"	40-200	6.0-10.0	1.0-6.0	0.3
CF3	3/4"	40-200	2.0-4.0	1.0-4.0	0.2
CF2	1/2"	40-200	3.0	1.0-1.8	0.2

6. Jade gas directly spray water jet nozzles

Model	Material	Joint size(G)	Pressure(Kpa)	Dicharge(M3/h)	Height(m)	Diameter(m)	Size WxH(mm)
CB20	Copper Planting, Copper, Stainless steel	3/4"	50-150	3.0-5.0	0.5-4.0	0.3-0.5	25x145
CB25		1"	50-200	6.0-12.0	1.5-5.5	0.5-0.8	30x156
CB40		1 1/2"	50-200	10.0-15.0	2.0-7.0	0.6-1.0	35x180
CB50		2"	50-250	15.0-20.0	2.0-12.0	1.6-2.1	40x202

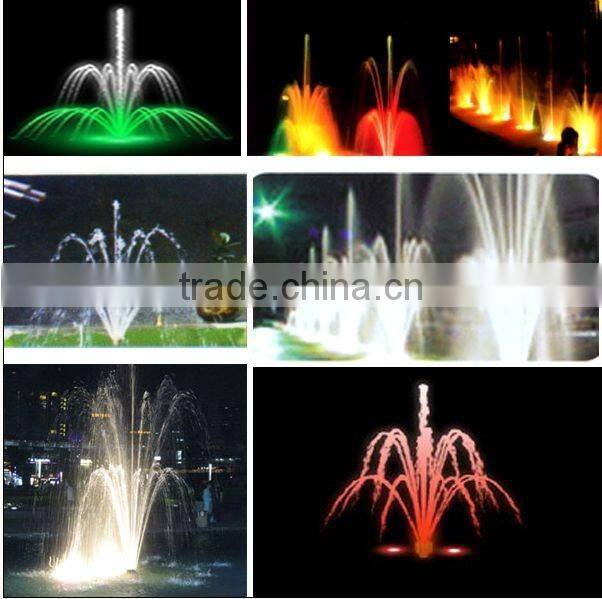

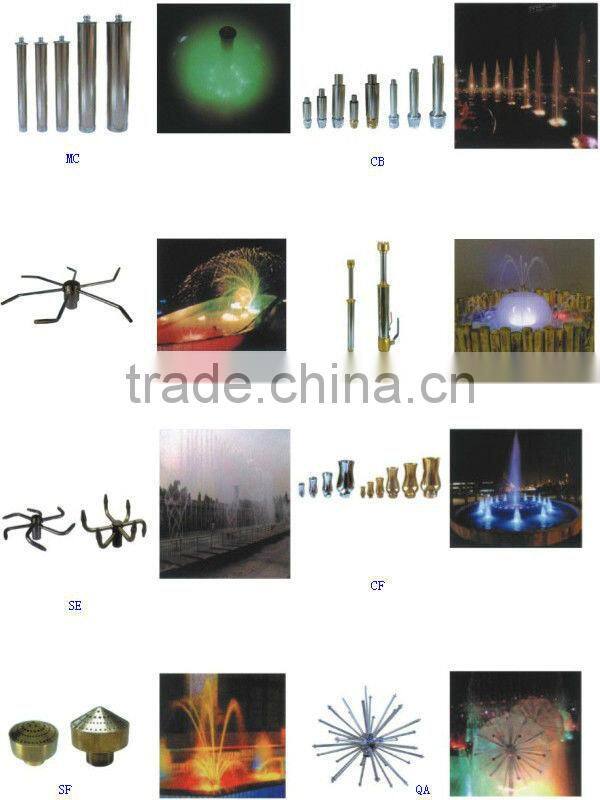

More beautiful effect of our water jet nozzles

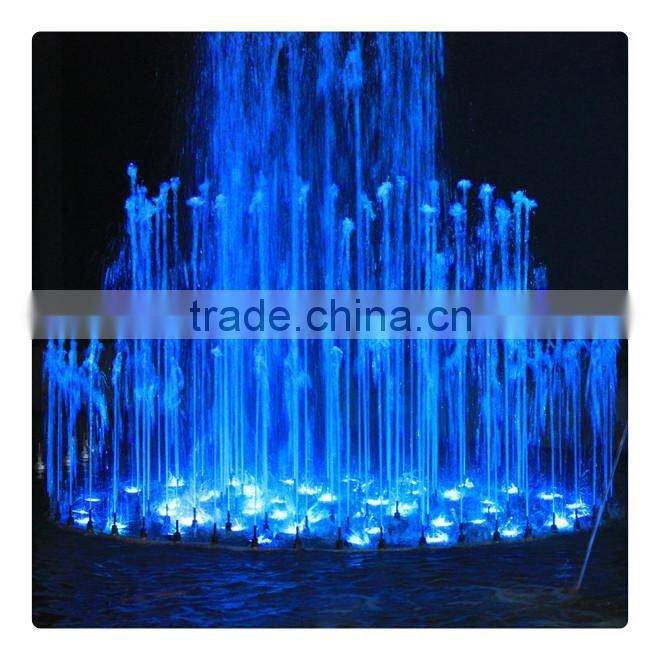

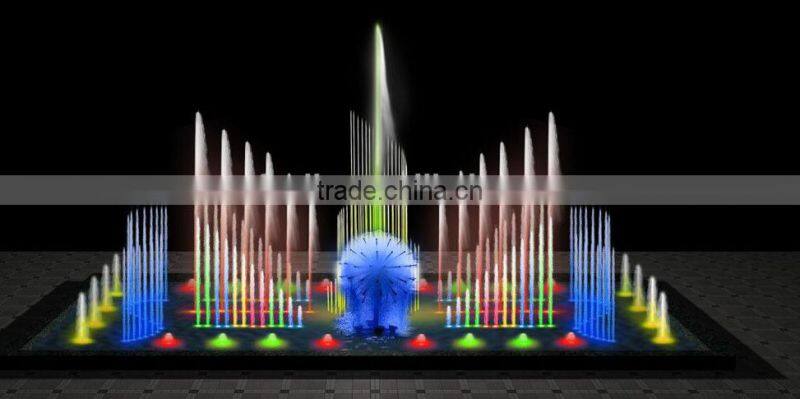

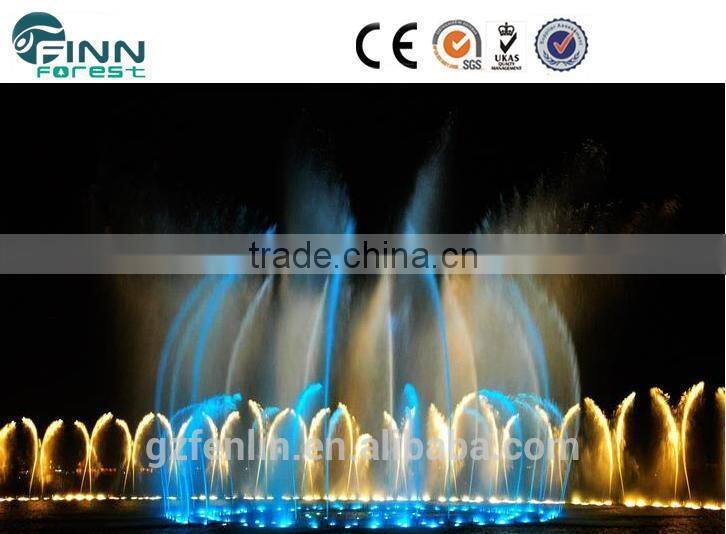

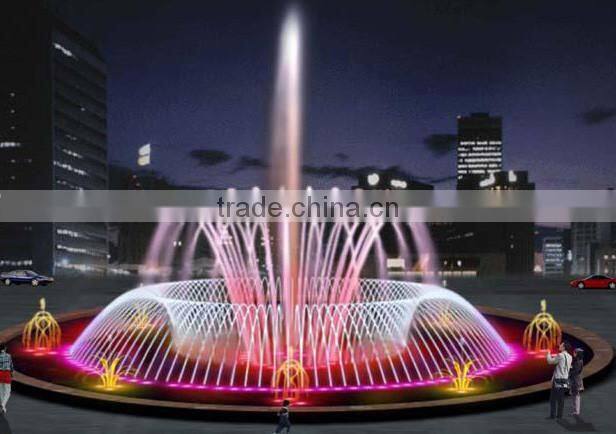

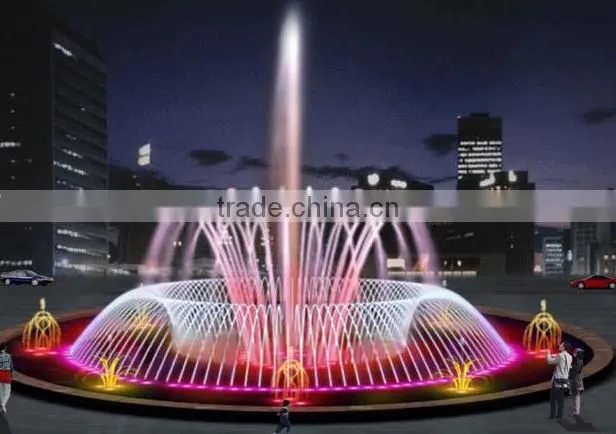

The beautiful effect of our music dancing water fountains

We have our own factory to produce and design fountains, welcome for your inquiry and cooperation!!

If there any products attract you, pls feel free to contact us!!
