Stainless steel Dancing fountain high pressure nozzle
Features of high pressure nozzles:
1. material: stainless steel/ copper
2. chrome plated is optional
3. different sizes can be made
4. kinds of styles available
5. OEM acceptable
6. products can be made as per clients' requirements
7. welcome to visit our factory
Function of fountain nozzles:
The fountain nozzle is very widly used in fountain design. It can produce jets of different heights and in different directions by changing its angle and water pressure. It is always used in fountains with height
control and program contral.
1. Straight spray water jet nozzles
| Model | Joint size(G) |
Pressure(Kpa) |
Discharge(M3/h) |
Height(m) |
Diameter(m) |
| ZA0 | 1/4" | 15-35 | 0.2-0.5 | 0.3-1.0 | radial shape |
| ZA1 | 3/8" |
15-35 | 0.2-1.0 | 0.5-1.5 | radial shape |
| ZA2 | 1/2" |
50-150 | 0.3-1.5 | 1.0-4.0 | radial shape |
| ZA3 | 3/4" |
50-150 | 1.0-3.0 | 1.0-5.0 | radial shape |
| ZA4 | 1" |
50-150 | 2.0-4.0 | 3.0-6.0 | radial shape |
| ZA5 | 1 1/2" |
50-150 | 3.0-6.0 | 3.0-7.0 | radial shape |
| ZA6 | 2" |
50-150 | 5.0-8.0 | 3.0-8.0 | radial shape |
| ZA7 | 2 1/2" |
70-150 | 10.0-15.0 | 3.5-10.0 | radial shape |
| ZA8 | 3" |
70-150 | 10.0-15.0 | 3.5-10.0 | radial shape |
2. Park view spring bubble jet nozzles
| Model | Material | Joint size | Working pressure(Kpa) | Discharge(M3/h) | Height(m) | Diameter(m) | Size(WxH)mm |
| CH15 | Copper planting/SS | 1/2" |
50-100 | 1.5-3.0 | 0.15-0.3 | 0.1-0.2 | 17X170 |
| CH20 | 3/4" | 50-100 | 2.0-5.0 | 0.2-0.35 | 0.15-0.3 | 25X188 | |
| CH25 | 1" | 50-100 | 3.5-8.0 | 0.3-0.5 | 0.2-0.4 | 30X247 | |
| CH40 | 1 1/2" | 50-100 | 10.0-18.,0 | 0.4-0.8 | 0.3-0.5 | 42X28 | |
| CH50 | 2" | 60-150 | 17.0-25.0 | 0.5-0.8 | 0.3-0.6 | 60X330 | |
| CH65 | 2 1/2" | 100-200 | 25.0-40.0 | 0.5-1.0 | 0.5-0.7 | 70X358 | |
| CH80 | 4" | 150-300 | 40.0-55.0 | 1.0-1.5 | 0.7-0.9 | 80X405 |
3. Small mushroom water jet nozzles
| Model | Joint size(G) | Pressure(kpa) | Discharge(m³/h) | Height(m) | Diameter(m) |
| MC6 | 2" | 10-15 | 5.0 | 0.50 | 1.2 |
| MC5 | 1 1/2" | 6-10 | 3.0 | 0.40 | 1.0 |
| MC4 | 1" | 6-10 | 2.0 | 0.25 | 0.6 |
| MC3 | 3/4" | 5-8 | 1.5 | 0.25 | 0.5 |
| MC2 | 1/2" | 5-8 | 1.0 | 0.20 | 0.3 |
4. Fireworks water jet fountain nozzles
| Model | Joint size(G) | Pressure(kpa) | Discharge(m³/h) | Height(m) | Diameter(m) |
| SF6 | 2" | 80 | 12 | 2.8 | 2.9 |
| SF5 | 1 1/2" | 60 | 10 | 2.5 | 2.5 |
| SF4 | 1" | 40 | 7 | 2.3 | 2.3 |
| SF3 | 3/4" | 40 | 5 | 2.0 | 1.9 |
| SF2 | 1/2" | 40 | 3 | 1.8 | 1.8 |
5. Ice tower shape water jet nozzles
| Model | Joint size(G) | Pressure(kpa) | Discharge(m³/h) | Height(m) | Diameter(m) |
| CF8 | 3" | 50-450 | 21.0-50.0 | 1.0-12.0 | 1.5 |
| CF6 | 2" | 50-450 | 12.0-25.0 | 1.0-10.0 | 1.0 |
| CF5 | 1 1/2" | 20-300 | 8.0-13.0 | 1.0-8.0 | 0.6 |
| CF4 | 1" | 40-200 | 6.0-10.0 | 1.0-6.0 | 0.3 |
| CF3 | 3/4" | 40-200 | 2.0-4.0 | 1.0-4.0 | 0.2 |
| CF2 | 1/2" | 40-200 | 3.0 | 1.0-1.8 | 0.2 |

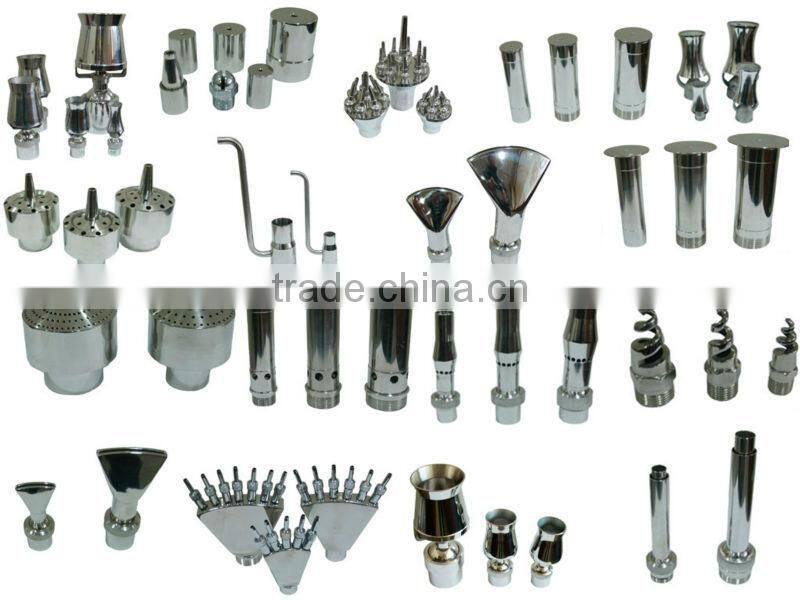

The factory fountain nozzles in our company
About US?
Guangzhou Fenlin Sauna Equipment Co., Ltd, established in 2004, professional in producing
and selling sauna equipments, swimming pool equipments, SPA equipments and fountain
equipments.etc.
Striving in creating, quality and service for these years, we have possessed our own brand, in
the meantime, have developed our foreign market of around one hundred countries as well as
developed a sales network covers most of the eastern big cities at home.
Our working environment
Customers' Visiting
Thank you for your trust and business cooperation with our company, we will do our best to return the best service to you in order to get a win-win cooperation.
Our certificates
