Professional Gardening Pond BIO-filter

Specifications

Professional Gardening Pond BIO-filter
1.Modern,simple,reasonable design
2.Special filtering function
3.SGS certificate

  Professional Gardening Pond BIO-filter





Suitable for gardening ponds and commercial fish farms filtering and purification.



Features



1.Modern,simple but reasonable design.
2.Special filtering function,highly effective UV device to kill various germs.
3.Scientific waterproof design of the ring to ensure its airproofing.
4.Multistage hose connector suitable for different size of tubes.
5.EFU-15000 and EFU-10000 with the functions of backwash and over-voltage indicator.



Instructions



1.Effective pressure filters with integrated UVC clarifier.



2.Special circuitry design.This product can add heater inside



3.Because of the easy clean system wash the filter is very easy.

4.Rinsing with discharge into channel like waterfall or watercourse, can be operated even if the filter is buried in the ground.



5.Polluted water is pumped into a sealed,closed system,during which a working pressure of 3M water head can build up.



Parameters



Model	Volt	Freq	UV Light	Suitable to aquarium	Size
EFU-15000	AC230/115V	50/60Hz	24W	8000-15000L	540*379*576mm
EFU-10000	AC230/115V	50/60Hz	18W	6000-10000L	540*379*468mm
EFU-8000	AC230/115V	50/60Hz	9w	5000-8000L	376*311*393mm
EF-15000	/	/	/	8000-15000L	540*379*552mm
EF-10000	/	/	/	6000-10000L	540*379*468mm
EF-8000	/	/	/	5000-8000L	376*393*311mm

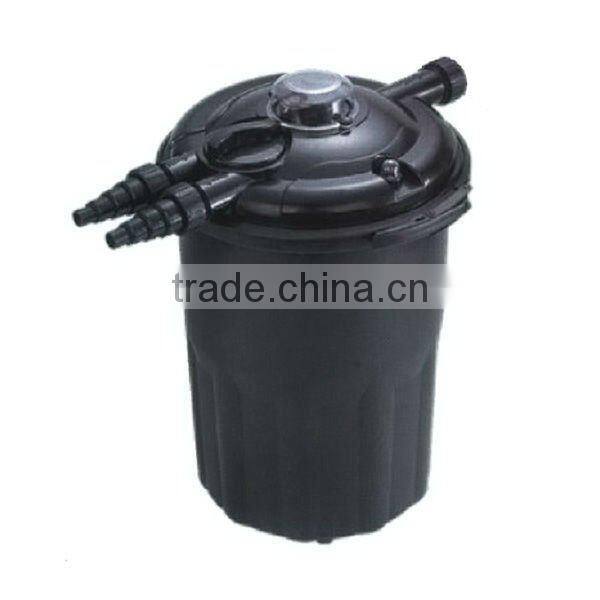

Pictures
