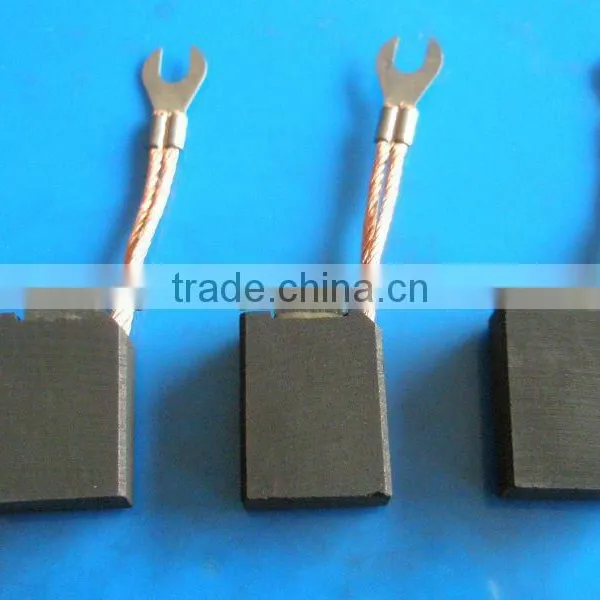

alternator carbon brushes,motor carbon brush
- 10000 Piece / Pieces per Month
- shanghai or any other port in china
- Credit Card
-
Customize Anodizing Aluminium Precision Milling Turning CNC Machining Parts For Motors
-
1Mn18Cr18N non-magnetic stainless steel generator rotor retaining ring
-
electrical bearing housing motor bearing bearing bush
-
Soft Starter
-
Anti-eddy Magnetic Assembly，Halbach Magnetic Assembly
-
motor stator and rotor core stator winding rotor shaft
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | SG-4 | Model Number: | D374,D252,J164,J106,J201 |
| Type: | Motor Magnet |
Product Description
Specifications
1.generator carbon brush, motor carbon brush2.voltage12V-24V
3.used for DC motor,generator
4.different grade as apply
1.generator carbon brush, motor carbon brush
2.voltage12V-24V
3.used for DC motor,auto,generator
4.different grade as apply
Our Generator carbon brushes are made from imported materials with advanced technology in the world. They can be equipped with Automobile Generator, motorcycle generator, Heater, lock and door of auto, reflector motor and windscreen wiper. Generator carbon brushes are widely used in speed reduction motors. The Generator carbon brush from our company has the following advantages: low pressure loss, high tripping force and long life time.
Grade Type | D103 | D173 | D213 | D253 | D353 | D353L |
Resistance | 10 | 13 | 28 | 15 | 42 | 42 |
Basic value | 100 | 103 | 82 | 85 | 70 | 90 |
Load | 196 | 196 | 980 | 588 | 980 | 980 |
Density | 1.64 | 1.60 | 1.64 | 1.63 | 1.58 | 1.69 |
Touch V-drop | 2.0 | 2.1 | 2.4 | 2.3 | 2.6 | 3.0 |
50hous wearness | 0.25 | 0.20 | 0.15 | 0.15 | 0.2 | 0.15 |
C.O.F | 0.20 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Current density | 12 | 12 | 10 | 12 | 12 | 12 |
Allowed peripheral speed | 40 | 70 | 40 | 45 | 50 | 50 |
Size (mm) | 135*120*40 | 135*120*36 | 135*120*36 | 135*120*43 | 135*120*38 | 135*120*38 |
|
| 150*67*43 | 150*67*34 | 150*68*36/43 | 135*120*45 | 135*120*45 |
|
| 150*67*34 | 150*67*43 |
| 150*67*35 |
|
Grade | Type | SG-4 |
SG-4 | Ash (%)≤ | 0.13 |
Resistance (µΩm)≤ | 14 | |
Density (g/cm)≥ | 1.72 | |
Compressive strength (Mpa)≥ | 45 | |
Flexural strength(Mpa)≥ | 25 | |
Size | 200*200*63/90mm |
|
