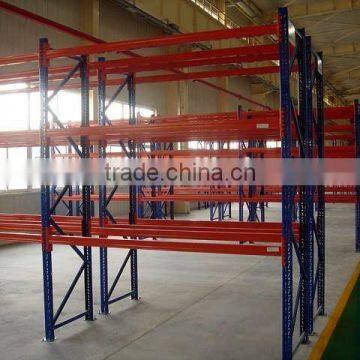

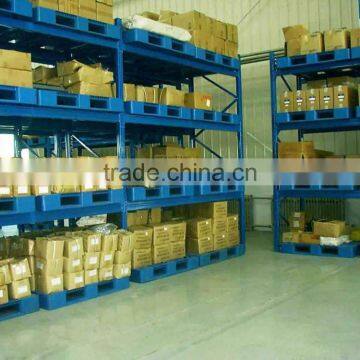

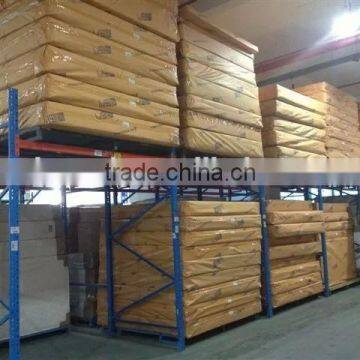

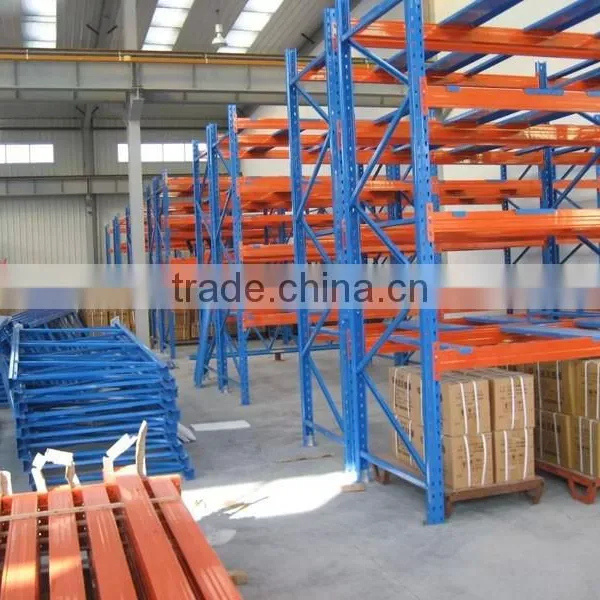

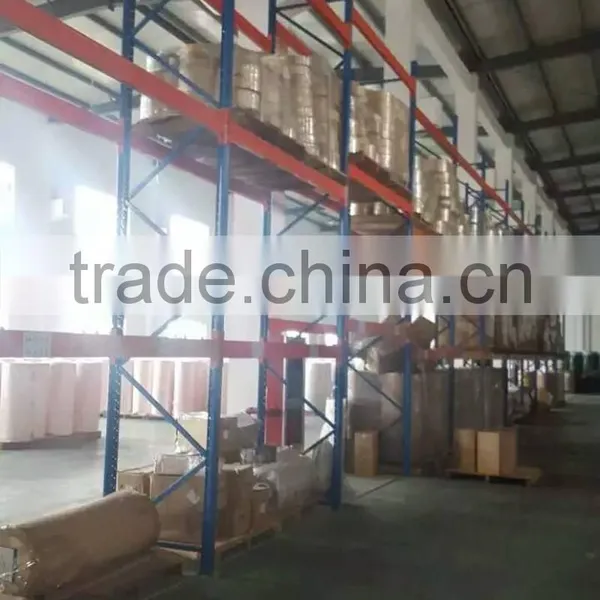

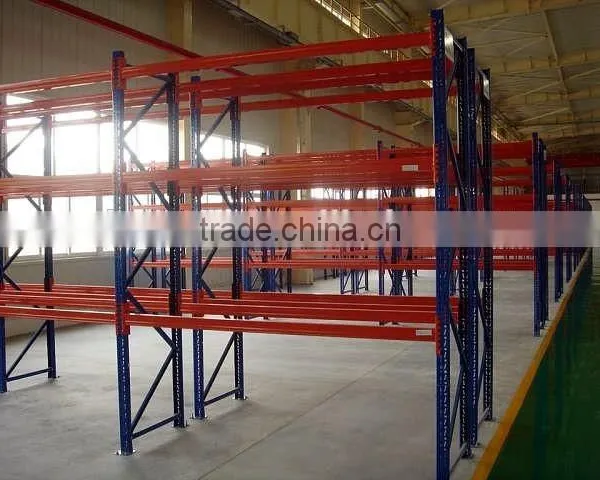

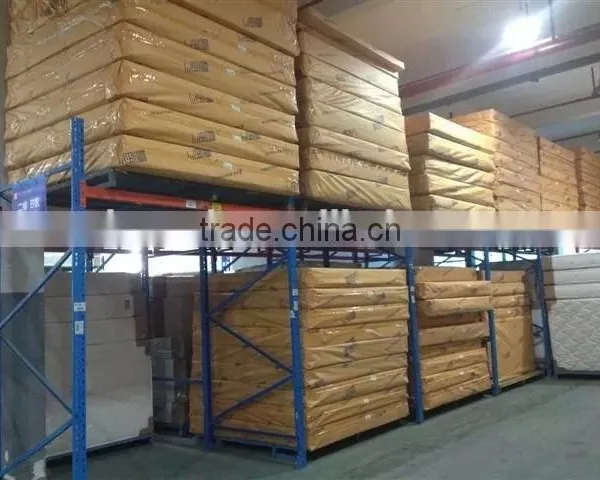

Heavy Duty Adjustable Steel Structure Bigger Demand Warehouse Storage

1. Features of warehouse storage pallet rack system:

1) Beam levers are adjustable in 75mm pitch interval.

2) Different sizes, various specifications and colors

   are available according to your needs.

3) Maximizes space utility ratio while retaining optimum          product accessibility.
4) Strength and rigidity prevents compression damage to goods.
5) Bottom level of pallets can be stored on the floor, lowering structure costs.

2. Material:

 High grade Q235B Cold Rolled Steel

3. Surface treatment:

 High-quality Powder Coating Finishing.

4. Load Capacity & Dimension:

 Loading capacity: 200-5000 kg/beam level.
 Height: 1500-10000mm
 Depth: single row 800-1200mm ( decided by pallet size), back-to-back 1900-2700mm
 Length: 2300/2400/2500/2700/3300/3900  (2 or 3 pallets per level, according to  pallet size)

 Special sizes also available to specific storage needs.

5. Main Parts Specs:

1) Uprights

2) beams

3) Horizontal & diagonal bracings, upright  footplates,

 safety locking pins, bolts & nuts, anchors and  all  necessary components.
