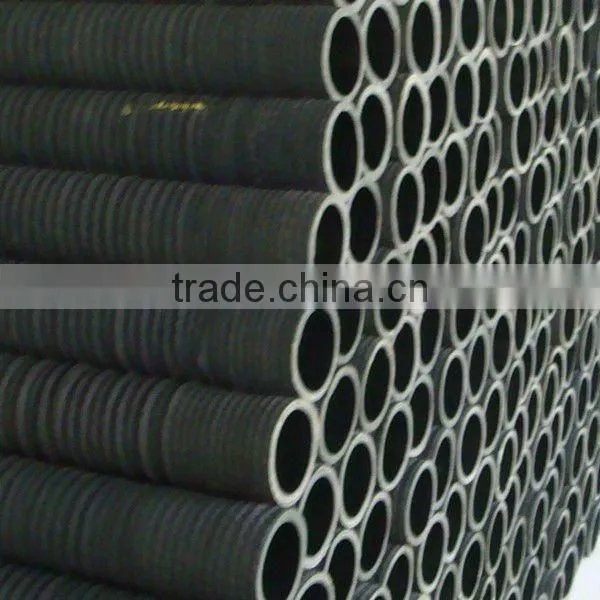

Suction Water Hose
Rubber Suction water Hose
Construction
1. Material: EPDM/SBR synthetic rubber
2. Inner Size: 32mm~356mm Suction Water Hose
3. Length: 10m~12m Suction Water Hose
4. Work Pressure: 3Bar Suction Water Hose
5. Certification: ISO 9001-2000
6. Reinforcement: With steel wire, and fabric inserted
7. Temperature: -30~+80'C Suction Water Hose
8. Packing: P. V. C. Film Suction Water Hose
Application:
The hose is suitable for conveying water for industrial use. (Mining, construction, factory drainage system. )
Features:
Solid structure, good bending performance. The hose has the double properties of bearing both the positive and negative pressure, can be used normally under the pressure 60-80Kpa, no deformation, no delamination, has good adaptability to different environment.
Spec:
| Inside Diameter (mm) | Outside Diameter (mm) | Working Pressure (bar) | Layer | Length | ||
| Size | Tolerance | Size | Tolerance | |||
| 32 | ±1.2 | 40 | ±1.2 | 3 | 3 | 10m |
| 38 | ±1.2 | 46 | ±1.2 | 3 | 3 | 10m |
| 51 | ±1.2 | 59 | ±1.2 | 3 | 3 | 10m |
| 64 | ±1.5 | 72 | ±1.5 | 3 | 3 | 10m |
| 76 | ±1.5 | 84 | ±1.5 | 3 | 3 | 10m |
| 89 | ±1.5 | 97 | ±1.5 | 3 | 4 | 10m |
| 102 | ±1.5 | 110 | ±1.5 | 3 | 4 | 10m |
| 127 | ±2.0 | 137 | ±2.0 | 3 | 4 | 10m |
| 152 | ±2.0 | 162 | ±2.0 | 3 | 4 | 10m |
| 203 | ±2.5 | 213 | ±2.5 | 3 | 4 | 10m |
| 254 | ±2.5 | 265 | ±2.5 | 3 | 5 | 10m |
| 305 | ±2.5 | 320 | ±2.5 | 3 | 8 | 10m |
| 356 | ±2.5 | 372 | ±2.5 | 3 | 10 | 10m |
