Specifications
1.Top quality,2.Competitive price ,
3.Best service;
4.High pressure rubber hose;
5.ISO9001,ISO/TS16949.

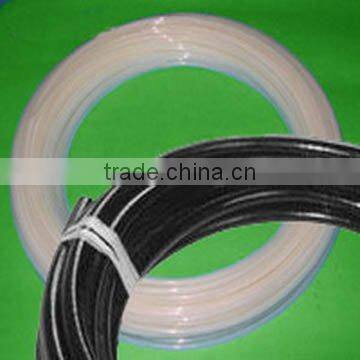

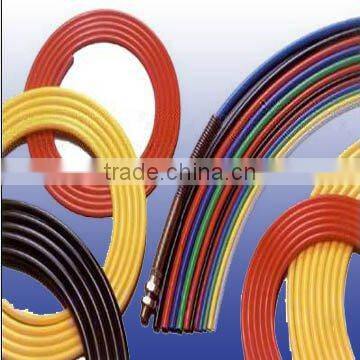

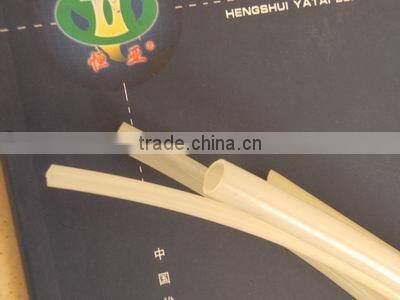

Nylon pressure pipe
PA-6,PA-11,PA-12 Nylon pipes are flexible and can withstand wearing and many corrosive materials that affect other pipes.
The inner wall of nylon pipe is slippery so that the water can flow fluently without any rusty and fouling.
PA-6,PA-11,PA-12 Nylon pipe is flexible that it’s easy to be fixed for its capability of stretching and flexure is greatly steady. And it also can withstand many chemical corrosive substances that it has a long life-span when it was used in a right way.
PA-6,PA-11,PA-12 Nylon pipe is of a great electric resistance that PA, PA-11, PA-12 can be used as insulators.
PA-6,PA-11,PA-12 Nylon pipe is with characteristics of steady size and lowest permeability.
Applied scope: areas of air, water, chemical substance lubrication, measuring appliance line, irrigation control system, textile mill, food products factory, vehicles and fuel delivery system in steamboats, vacuum system, air-conditioning system, vibrate insulator, static electricity insulator and so on. It can work regularly and still be the same flexible in -40 to +120°C.
| mark of pipe (mm) | O.D(mm) | Thickness (mm) | Working Pressure(MPa) | Burst Pressure (MPa) | Tolerance | |
| O.D(mm) | I.D(mm) | |||||
| Φ4×0.75 | 4 | 0.75 | 2.4 | 9.5 | ±0.1 | ±0.1 |
| Φ4×1 | 4 | 1 | 2.75 | 11.0 | ±0.1 | ±0.1 |
| Φ4.7×0.61 | 4.7 | 0.61 | 2.5 | 10.0 | ±0.1 | ±0.1 |
| Φ5×1 | 5 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ6×1 | 6 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ6×1.5 | 6 | 1.5 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ7×1 | 7 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ8×1 | 8 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| Φ8×1.5 | 8 | 1.5 | 2.1 | 8.5 | ±0.15 | ±0.1 |
| Φ9×1.5 | 9 | 1.5 | 2.0 | 8.0 | ±0.15 | ±0.1 |
| Φ10×1 | 10 | 1 | 1.9 | 7.5 | ±0.15 | ±0.1 |
| Φ10×1.25 | 10 | 1.25 | 2.1 | 8.3 | ±0.15 | ±0.1 |
| Φ10×1.5 | 10 | 1.5 | 2.1 | 8.5 | ±0.15 | ±0.1 |
| Φ12×1.25 | 12 | 1.25 | 2.1 | 8.2 | ±0.15 | ±0.1 |
| Φ12×1.5 | 12 | 1.5 | 2.1 | 8.4 | ±0.15 | ±0.1 |
| Φ14×1 | 14 | 1 | 1.9 | 7.7 | ±0.15 | ±0.15 |
| Φ14×1.5 | 14 | 1.5 | 2.0 | 8.0 | ±0.15 | ±0.15 |
| Φ15×1 | 15 | 1 | 1.8 | 7.5 | ±0.15 | ±0.15 |
| Φ15×1.5 | 15 | 1.5 | 1.9 | 7.8 | ±0.15 | ±0.15 |
| Φ16×1.5 | 16 | 1.5 | 2.0 | 8.2 | ±0.15 | ±0.15 |
| Φ18×1 | 18 | 1 | 1.0 | 4.25 | ±0.15 | ±0.15 |
| Φ18×1.25 | 18 | 1.25 | 1.4 | 5.5 | ±0.15 | ±0.15 |
| Φ18×1.5 | 18 | 1.5 | 1.7 | 6.8 | ±0.15 | ±0.15 |
| Φ19×1.5 | 19 | 1.5 | 1.5 | 6.3 | ±0.15 | ±0.15 |
| Φ20×2 | 20 | 2 | 1.6 | 6.5 | ±0.15 | ±0.15 |
| Φ22×1.5 | 22 | 1.5 | 1.3 | 5.3 | ±0.15 | ±0.15 |
| Φ25×1.5 | 25 | 1.5 | 1.0 | 4.2 | ±0.15 | ±0.15 |
| Φ28×1.5 | 28 | 1.5 | 0.8 | 3.2 | ±0.15 | ±0.15 |
| Φ35×1.5 | 35 | 1.5 | 0.4 | 1.8 | ±0.15 | ±0.15 |
| Φ40×2 | 40 | 2 | 0.4 | 1.6 | ±0.15 | ±0.15 |
| Φ45×2.5 | 45 | 2.5 | 0.45 | 1.8 | ±0.18 | ±0.15 |
| Φ51×2.5 | 51 | 2.5 | 0.4 | 1.6 | ±0.18 | ±0.15 |
| Φ64×3 | 64 | 3 | 0.4 | 1.6 | ±0.2 | ±0.2 |
| Φ76×3 | 76 | 3 | 0.35 | 1.4 | ±0.2 | ±0.2 |
| Φ80×3 | 80 | 3 | 0.3 | 1.2 | ±0.25 | ±0.2 |
