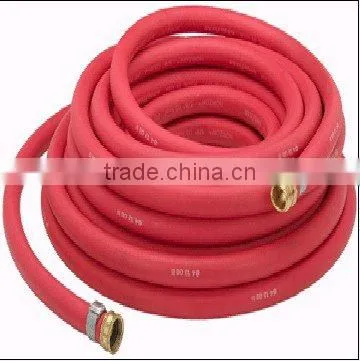

water rubber hose
Negotiable
/ Meter
50 Meters(Min.Order)
- 400000 Meter / Meters per Month
- xingang tianjin
- T/T
You May Like
Product Details
Place of Origin: | Hebei, China | Brand Name: | zhongbo | Model Number: | SAE R1 AT/DIN EN853 1SN |
Product Description
Specifications
Construction:Made of excellent heat-resistant rubber, The reinforcement is braided with Copper facing wire.Steam hose:Q/HYT03
Construction:Made of excellent heat-resistant rubber, The reinforcement is braided
with Copper facing wire.
Applications:For conveying saturated steam and superheated water at a temperature
below 150 °C continually or at a temperature below 160 °C intermittently
ModelSAE 100 R1 AT/DIN EN 853 1SN | |||||||||||
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Lengh | |||
inch | mm | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | metres | |
6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90 | 12840 | 102 | 0.21 | 50/100 |
8 | 5/16 | 7.9 | 12.7 | 15 | 21.5 | 3120 | 85 | 12280 | 114 | 0.24 | 50/100 |
10 | 3/8 | 9.5 | 15.1 | 17.4 | 18 | 2615 | 72 | 10280 | 127 | 0.33 | 50/100 |
13 | 1/2 | 15.9 | 21.4 | 23.7 | 13 | 1890 | 52 | 7420 | 203 | 0.45 | 50 |
16 | 5/8 | 19 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 241 | 0.58 | 50 |
19 | 3/4 | 19 | 25.4 | 27.7 | 10.5 | 1530 | 42 | 6000 | 241 | 0.58 | 50 |
25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35 | 5020 | 305 | 0.88 | 50 |
32 | 1'1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25 | 3600 | 419 | 1.23 | 20-40 |
38 | 1'1/2 | 38.1 | 46.8 | 50.6 | 5 | 730 | 20 | 2860 | 508 | 1.51 | 20-40 |
51 | 2 | 50.8 | 60.2 | 64 | 4 | 580 | 16 | 2280 | 635 | 1.97 | 20-40 |
