Specifications
Cylinder Head1 CUMMINS ISF2.8 B3.3 4B3.9 6B5.9 6C8.3 6L8.9 ISBe ISCe ISLe L10
2.original quality for aftermarket
CUMMINS 6L (L375-20)cylinder head assay
Info of the head
Product |
Cummins 6LT (ISLE)Cylinder Head |
Part No. |
C3945022 |
Application |
Cummins L375-20 |
material |
cast iron |
Description |
cylinder head gasket for Cummins 6LT |
N.W |
80KG |
Dimension |
900*340*210mm |
info of the CUMMIN L375 engine
| Engine Model: | L375-20 |
| Engine Type: | 6 Cylinders in Line |
| Displacement: | 8.9 L |
| Rated Speed: | 2200 rpm |
| Rated Power: | 276 kW(375 HP) |
| Max. Torque/Speed: | 1480 N.m @1400rpm |
| Aspiration Method: | T-charged & Intercooled |
| Emission Standard: | Euro II |
| Fuel Consumption: | 228 g/kw.h |
| Packing Size(L*W*H): | 1300*850*1100 |
| Gross Weight: | 700 Kg |
our cummins cylinder head catalog
our cylinder head features:
1,for almost all cummins CUMMINS engines
2,cylinder heads are chemically vatted, magnafluxed and checked for adherence to super specifications prior to being surfaced
3, re-assembled with new valves, springs and seals as well as new seats and guides
when required. The assembly is then completed with rocker arms prior to being
chemically protected, wrapped and put into inventory.
4,All Hebei Jayuan products are guaranteed to meet factory specifications, come with a one year warranty against defects in the quality of materials and workmanship and are also backed by our industry leading 100% Satisfaction Guarantee.

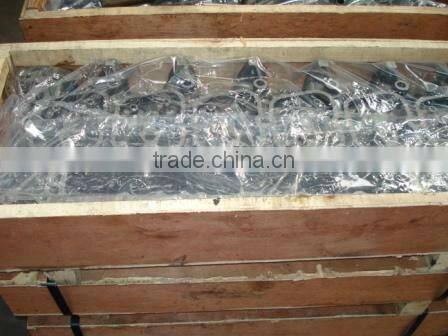

our product packing:
our workshop
our production features:
v 15years dedicated to making cylinder block and heads ,transferred our years of
experience into our manufacturing.
v thorough engineering And combination of our latest machinery experience,
complimented by accurate jigs and fixtures give our products the desired quality
and optimum performance.
v Our Cylinder Head manufacturing process quality controls each production
stage with several parameters.
v the mandatory stages of production are side milling, drilling, sheet cutting, tapping,
pressure testing, water jacket cleaning, crack test, de-burning & oiling, fitment of child parts, final inspection and packaging.
Through all the stages, an end-to-end process and quality parameters are adhered, to ensure hard-line quality and sturdy end product.
v Our range of products is for diesel engines used in following applications for
several of brands i. e. Earthmovers, tractors, combine, trailers, trucks, commercial
vehicles, and generators

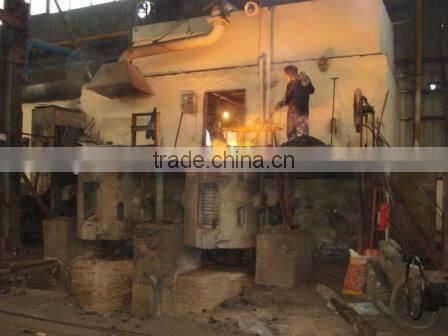

our casting procedure
