Home > Products > cylinder head and block > Cylinder Head for Chrysler Magnum 318/360(5.2/5.9L) BARE

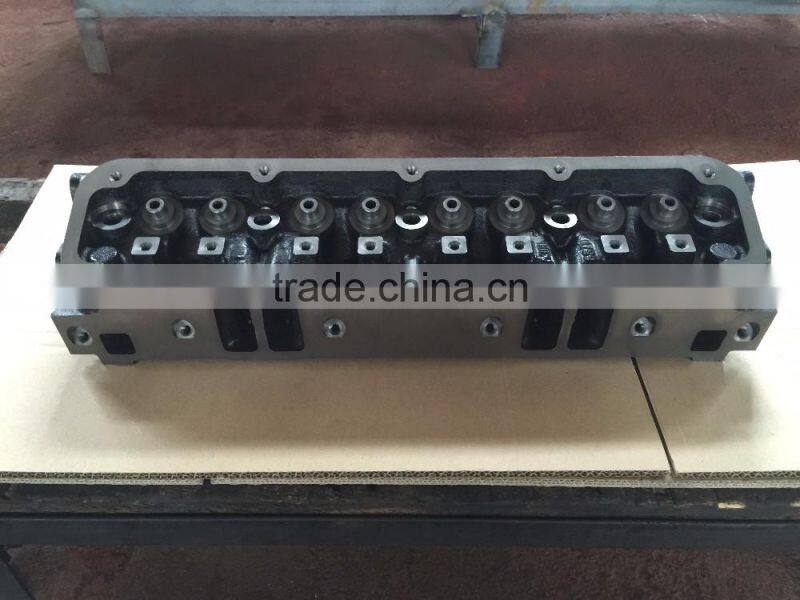

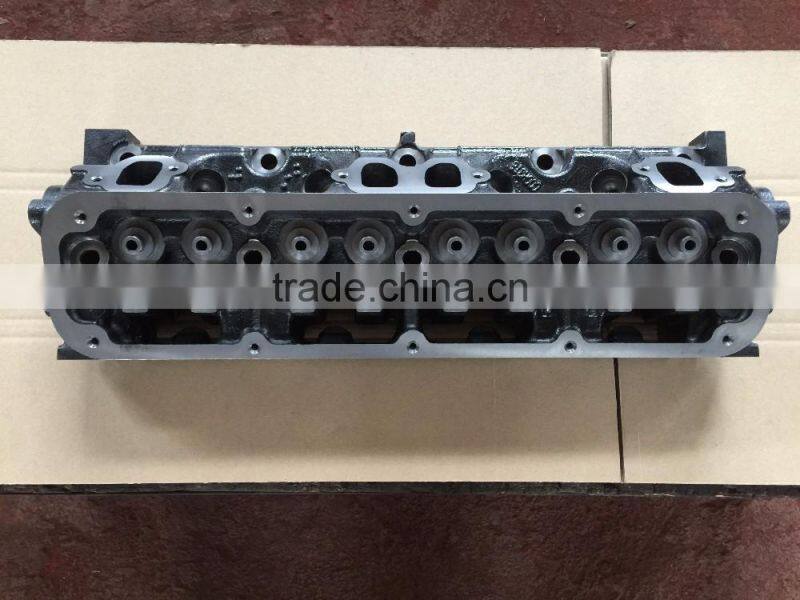

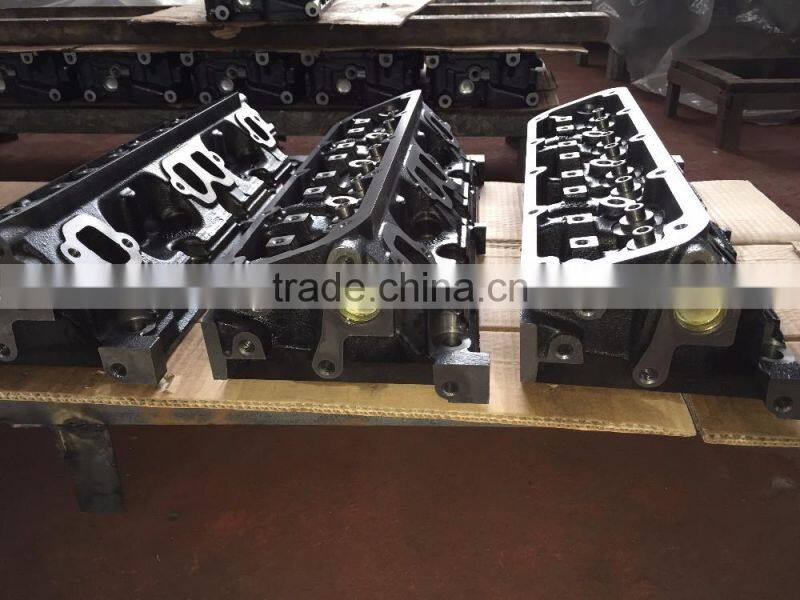

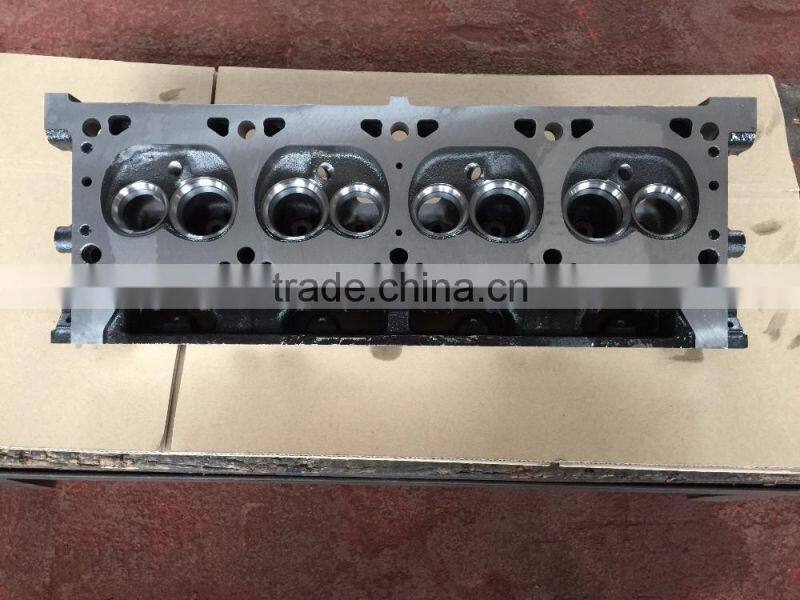

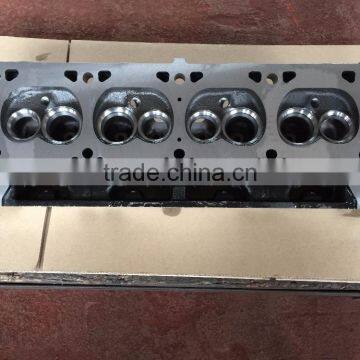

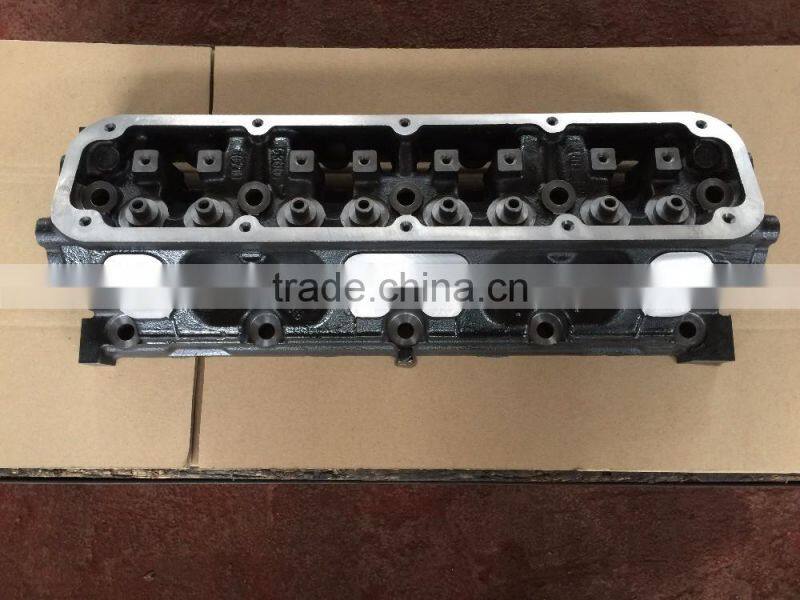

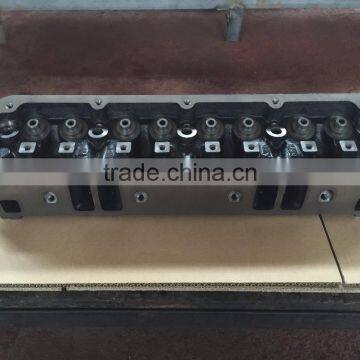

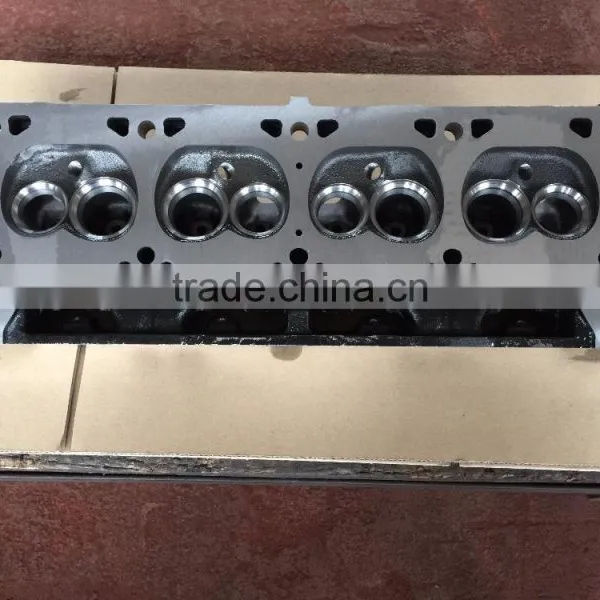

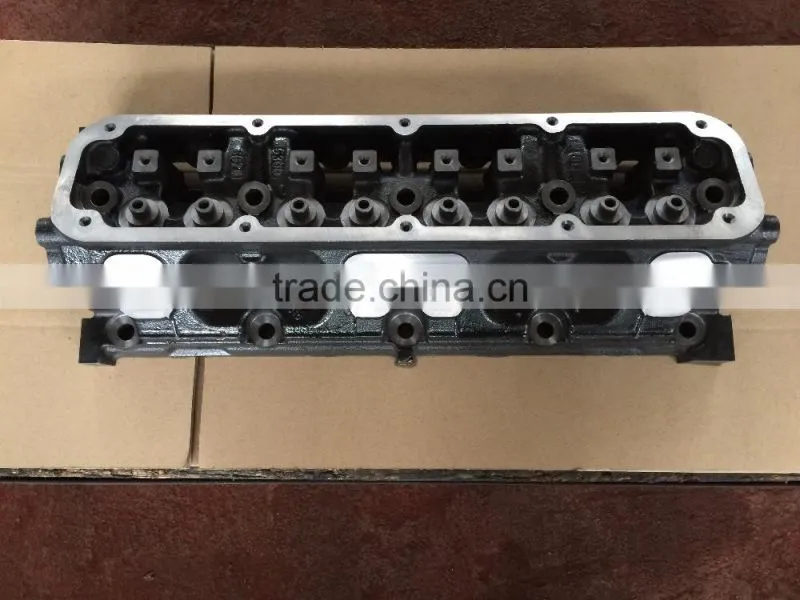

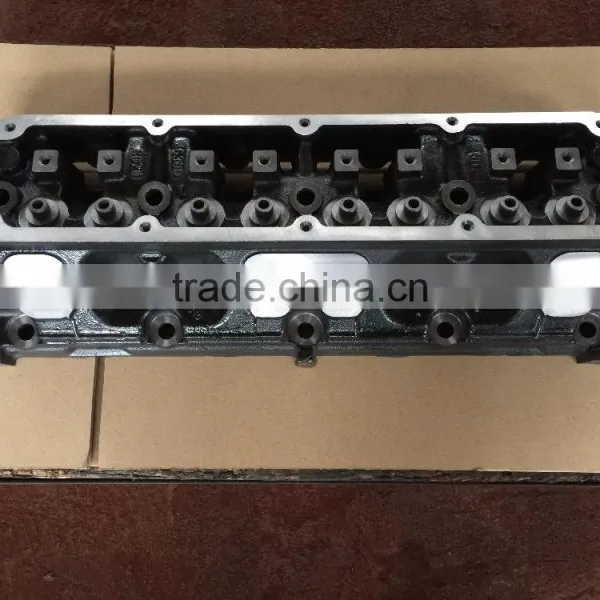

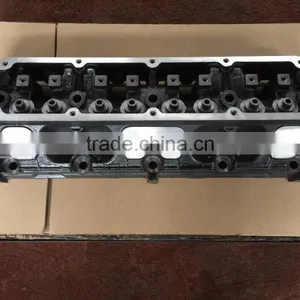

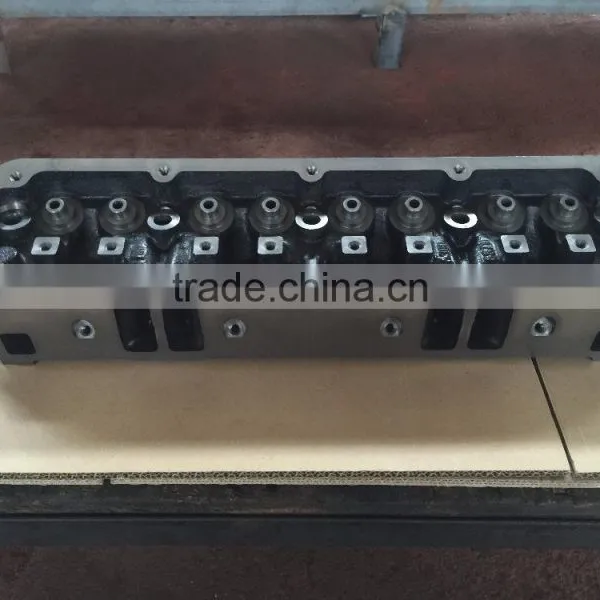

Cylinder Head for Chrysler Magnum 318/360(5.2/5.9L) BARE
- 1000 Piece / Pieces per Month
- Tianjin Shanghai Guangzhou
- Credit Card
Product Details
Type: | Other, Cylinder Head, Brand New | Car Make: | 1993 W Series Trucks 1998-2003 Durango 1999-2003 Ram Series Vans | OE NO.: | 53005714 53006671 53020466 53020468 |
Place of Origin: | Hebei, China | Brand Name: | Jiayuan | Model Number: | Cylinder Head for Chrysler Magnum 318/360(5.2/5.9L) BARE |
Warranty: | 1 Years |
Product Description
1. Cylinder Head for Chrysler Magnum 318/360(5.2/5.9L)
2. For aftermarket
3. same quality as genuine
1. Engine Model: Cylinder Head for Chrysler Magnum 318/360(5.2/5.9L)
2. Application:
318 FITS:
Dodge dakota pickup trucks 2003
dodge Durango SUV 2002
360 FITS:
1993-2003 B Series Vans
1993 D Series Trucks
1998-2003 Dakota
1994-2003 Ram Series Trucks
1993 Ramcharger
1993 W Series Trucks
1998-2003 Durango
1999-2003 Ram Series Vans
The LA 318 was a 318 cu in (5.2 L) relative of the A 318. Like the A 318, it has a larger cylinder bore at 3.91 in (99.31 mm) as well as a stroke of 3.31 in (84 mm). It appeared shortly after the 273, in 1967, and proved tremendously successful. A crop duster version of this engine was available until 1991 when it was superseded by the Magnum version (See below). It used hydraulic lifters and a two barrel carburetor for most of its production, though four-barrel Carter Thermo-Quad and Rochester Quadrajet carburetors were used in police applications starting in 1978. The 318 received roller lifters and a fast-burn cylinder head in 1985. Throttle-body electronic fuel injection was factory equipment on the 1981-1983 Imperial. From 1988 to 1991, another throttle-body fuel injection system was used for truck and van applications.
The LA 360 (5.9 L) has a 4.00 in bore and a 3.58 in stroke. It was released in 1971 with a two barrel carburetor. The 360 used the large intake port 340 heads with a smaller intake valve (1.88 inch). In 1974, with the introduction of the code E58 4-BBl dual exhaust version (at 245 SAE net horsepower) became the most powerful LA engine with the end of 340 production. Power started dropping from 1975 on as more emission controls were added resulting with the 1980 E58 engine only producing 185 SAE net HP. Starting with 1981, the 360 was exclusively used in Dodge trucks and vans.
The 1978-1979 Li'l Red Express truck used a special high-performance 360 4-barrel engine with factory production code EH1, and was the fastest American made vehicle from 0-100MPH for those years.[3] The EH1 was a modified version of the E58 360 police engine (E58) producing 255 hp (190 kW) net @ 3800 rpm[citation needed] due in part, that as it was installed in a "truck", and not a car, it did not have to utilize catalytic converters which allowed for a free-flowing exhaust system. Some prototypes for the EH1 featured Mopar Performance W2 heads, although the production units had the standard 360 heads. Some police package cars came from the factory with a steel crank and h-beam rods.[4] There was also a "lean burn" version of the 360. The LA360 was replaced in 1993 by the 5.9 Magnum, which shared some design parameters with the LA360, however the majority of its components were different. The 5.9 Magnum was then replaced by the 5.7 Hemi.
