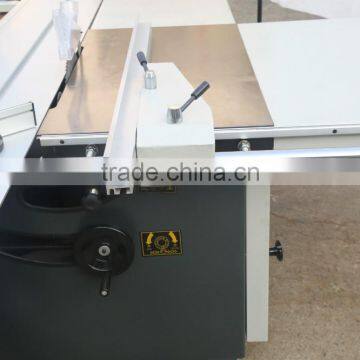

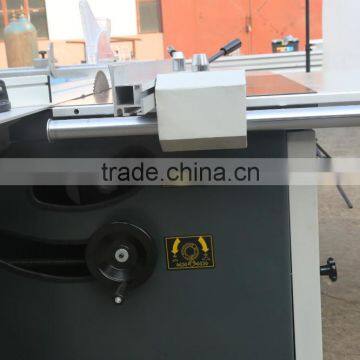

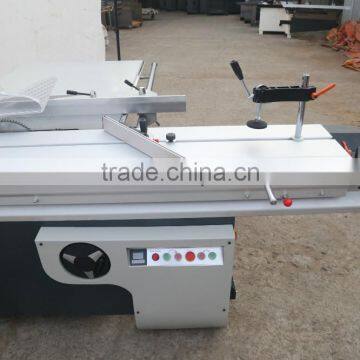

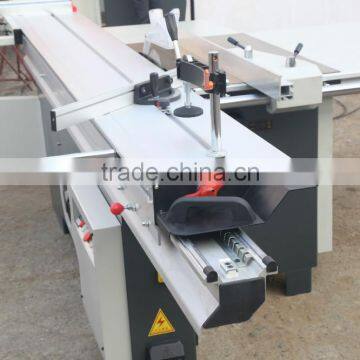

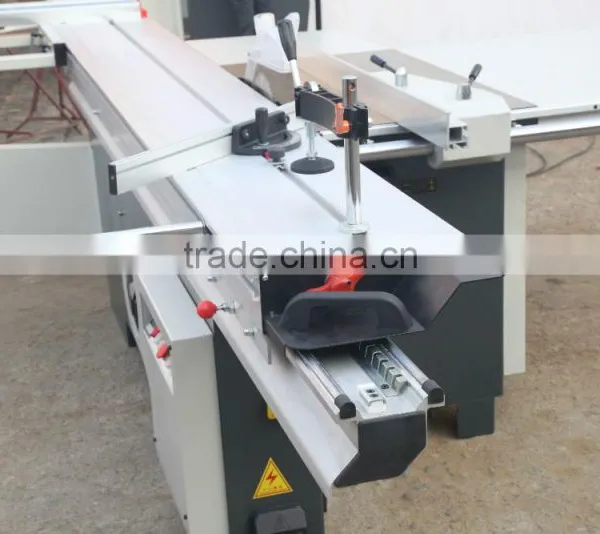

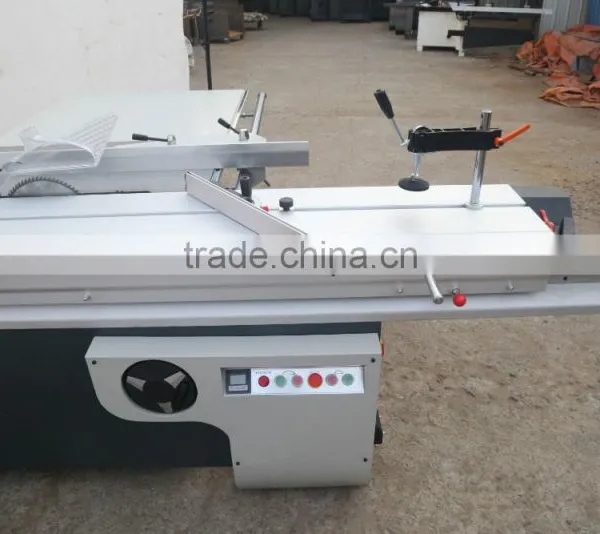

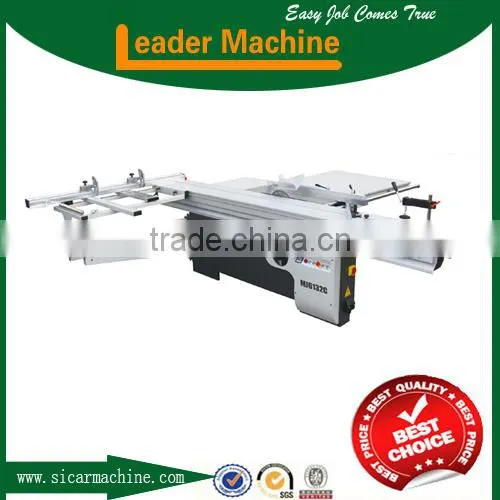

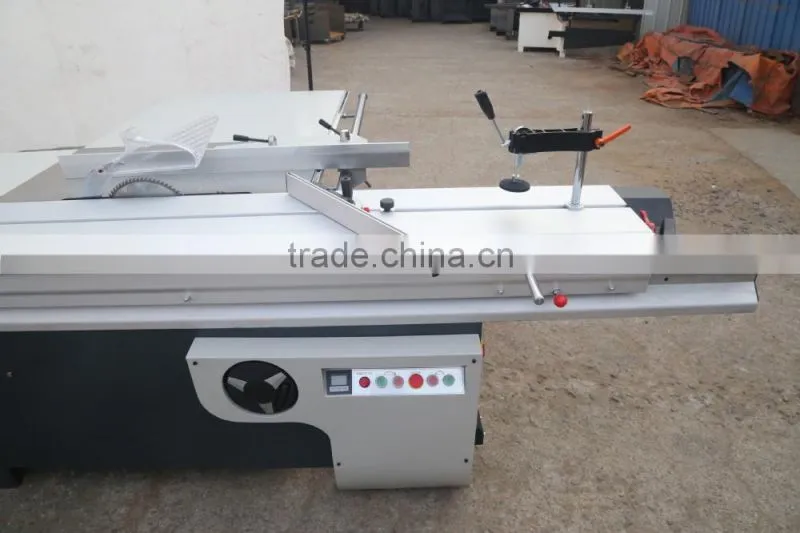

45 Degree Precision Sliding Table Panle Saw

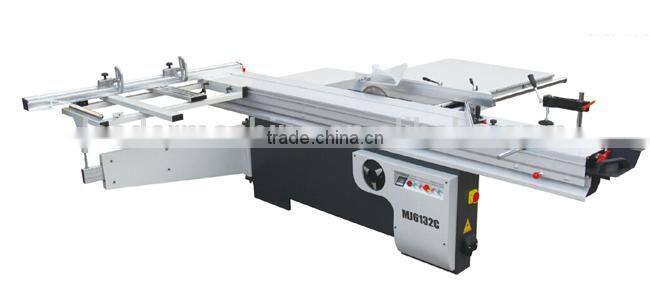

Model:MJ6132C.
Dimensions sliding table | 3200X375mm |
Max.length panel cut | 3200mm |
Max.height panel cut | 75mm |
Max height panel cut with saw blade at 45° | 50mm |
Tilting angle saw blade | 0-45° |
Diameter of saw blade | 300mm |
Diameter scoring saw blade | 120mm |
Speed of main saw blade | 6000rpm |
speed of scoring saw blade | 8000rpm |
Spindle diameter | 30mm |
Spindle diameter of Scoring saw | 20mm |
Main motor | 5.5kw |
Scoring motor | 0.75kw |
Voltage | 380V/50HZ 3Phase |
Body packing size | 2150x1100x1100mm |
Table packing size | 3250 x420x280mm |
Apply to processing all kinds of density boards,shaving boards,wood-based panels,PVC boards,organic glass,plates,solid wood and other with wood structure similar hardness.

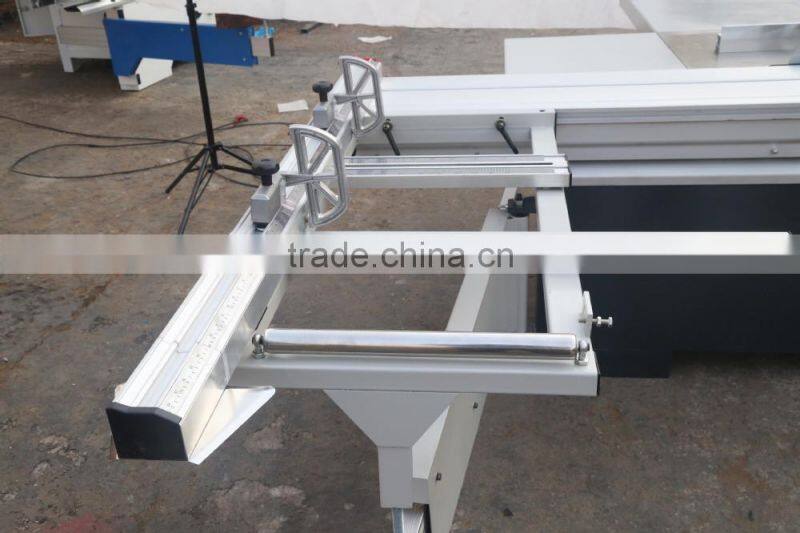

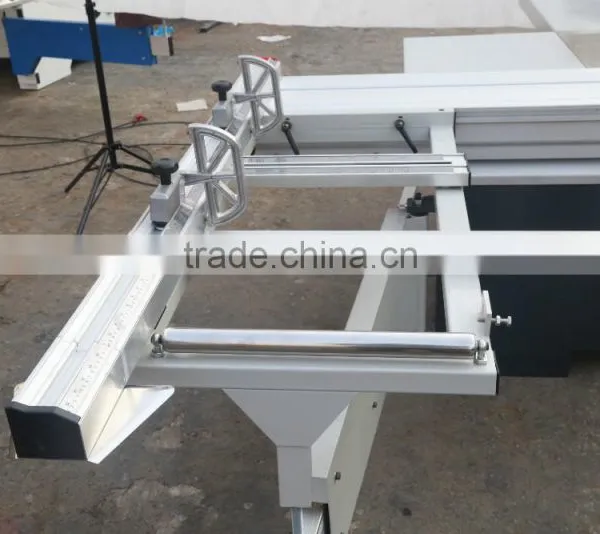

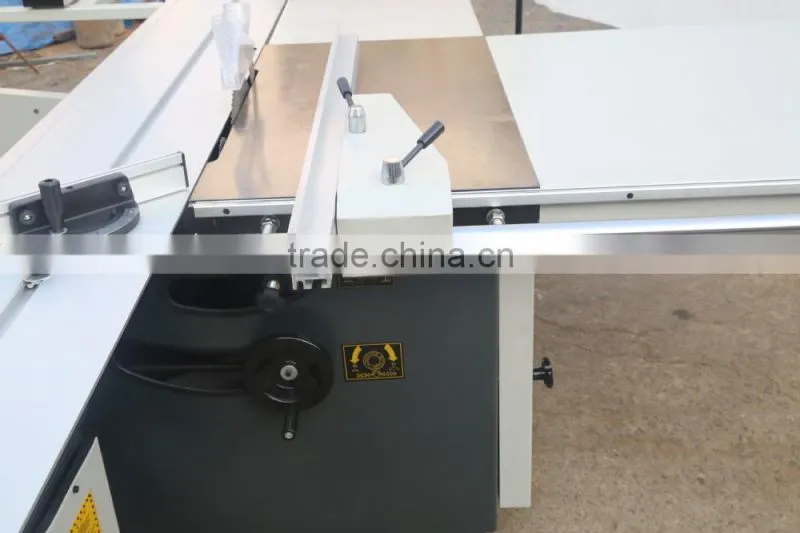

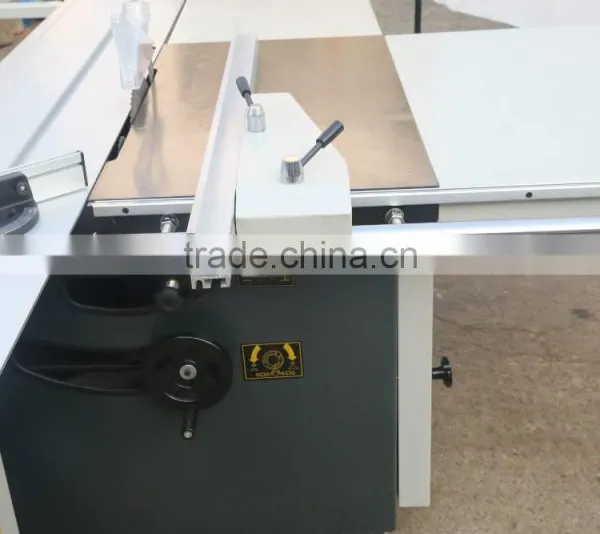

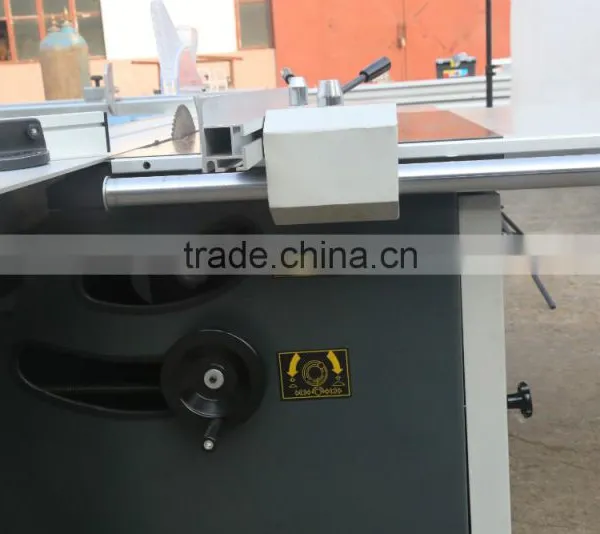

Movable table guide track is plating chromium steel bars structure,exact and durable.
Made of high-strength extruded aluminum alloy,movable table is high in strength and won’t bend.
With oxidation treatment ,movable table surface is beautiful and hardwearing
1.Precise panel saw produced according to international advanced technique.High-quality parts guarantee the machine's precision and long life.
2.Wider duralumin sliding table is firm and durable.
3.High Precision steel guide has been processed ultrahard,which guarantees guide precision and enduring
4.Electric lifting saw blade is easy for operating.
5.It is the necessary working tool for furniture production and decoration industry.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
