Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Saw Machine > MJS12257 CE Cnc Curve Saw

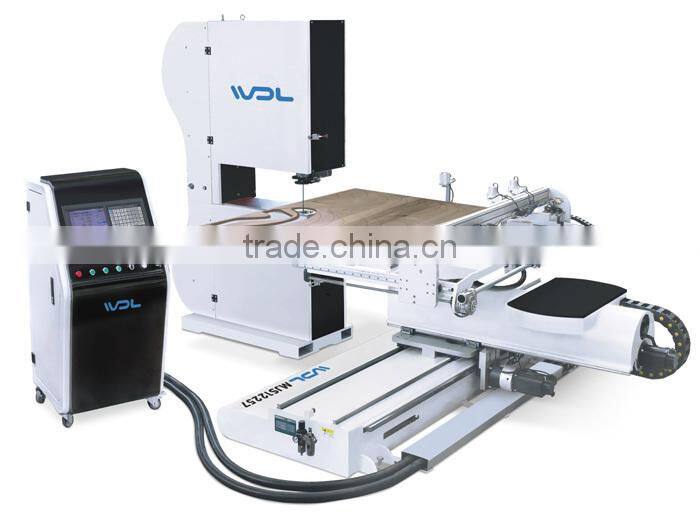

MJS12257 CE Cnc Curve Saw
US$ 1 - 1
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Band Saw
Use:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Band Saw
Use
Woodworking
Style
Vertical
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
MJS12257
Voltage
380v
Power(W)
5500w
Weight
4500kg
Certification
CE
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
cnc curve saw
Model: MJS12257
Product Description
| model | MJS12257 | MJS1325 |
| Max working dimensions | 2500*1200mm | 2500*1300mm |
| Max working thickness | 250mm | 250mm |
| Max circle diameter | 700mm | ---- |
| band saw blade size | 5741*12.7mm | 5334*12.7mm |
| Min radius of turn | R30mm | R80mm |
| Max cutting depth of straight line | 750mm | 750mm |
| Max cutting depth of Arc | 300mm | ---- |
| saw blade rotation angle | ±90° | ---- |
| saw table rotation angle | ±90° | ±90° |
| X-axis motor | 15Nm | 15Nm |
| Y-axis motor | 10Nm | 10Nm |
| W-axis motor | ---- | 6Nm |
| Z-axis motor | 10Nm | ---- |
| mainshaft motor power | 5.5kw | 5.5kw |
| X-axis Max speed | 40m/min | 40m/min |
| Y-axis Max speed | 40m/min | 40m/min |
| B-axis Max speed | 180°/sec.3 | ---- |
| C-axis Max speed | 180°/sec.3 | 180°/sec.3 |
| return speed | 6~40m/min | 6~40m/min |
| working pressure | 0.6~0.8Mpa | 0.6~0.8Mpa |
| suction inlet diameter | 100mm*2 | 150mm*2 |
| net weight | 4500kg | 3400kg |
| overall dimensions(L*W*H) | 430*410*255mm | 430*410*255mm |
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
