Home > Products > Woodworking Saw Machine > MJ1300-X3 CE multi blade rip saw

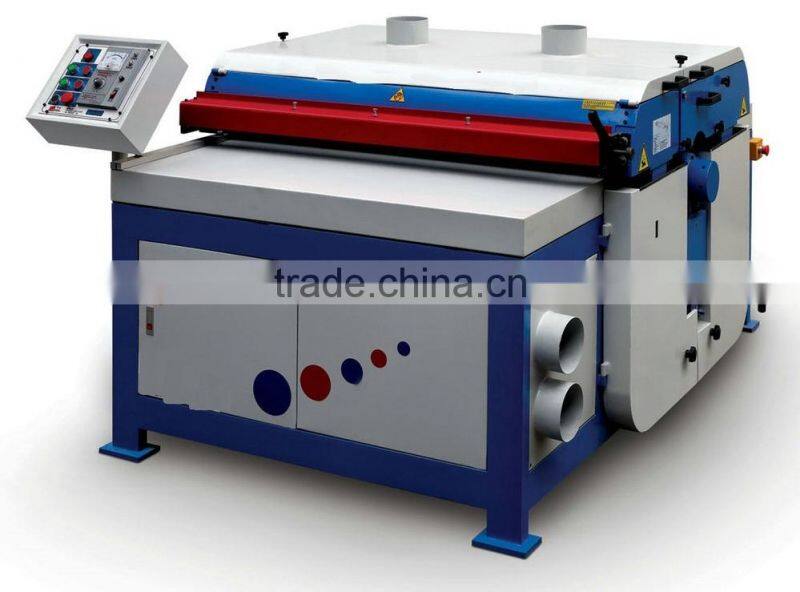

MJ1300-X3 CE multi blade rip saw
- 100 Unit / Units per Month
- QINGDAO
- T/T
- Guangzhou Industrial-Grade High Quality Circular Chain Saws, Electric Lithium Cutting Machine, Welding Machines
- Log square saw log push table saw machine band saw infrared edge saw double end head saw
- Sawdust Dryer Machine
- PCD Saw Blades for Woodworking
- wood log cutting machine industrial table saw
- Woodworking wood cutting machine sliding table panel saw wood saw machines
Product Details
Condition: | New | Type: | Other | Use: | Woodworking |
Style: | Horizontal | Place of Origin: | Shandong, China | Brand Name: | LEADER |
Model Number: | MJ1300-X3 | Voltage: | 380v | Power(W): | 1250w |
Dimension(L*W*H): | 2200 x 1800 x 1250mm | Weight: | 2200kg | Certification: | CE |
Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
multi blade rip saw
Model: MJ1300-X3
Max Width of Processed Material | 1220mm |
Min Width of Processed Material | 200mm |
Max Thickness of Processed Roughcast | 35mm |
Min Thickness of Processed Roughcast | 5mm |
Min. Processing Length | 550mm |
Spindle Diameter | 74mm |
Spindle Speed | 2600r/min |
Saw Blade Diameter | 205mm |
Max. Number of Saw Blades | 60pcs |
Power of Spindle Motor | 11kw(able extend to 22kw) |
Power of Feeding Motor | 1.5kw(able extend to 3kw) |
Total Power of Installed Motor | 12.5kw(able extend to 25kw) |
Feeding Speed | 0-12m/min |
Pair Number / Number of Feeding Roller | 6/12 |
Outer Diameter of Scrap Pipe | 150mm |
Overall Dimensions | 2200 x 1800 x 1250 mm |
Weight | 2200kg |

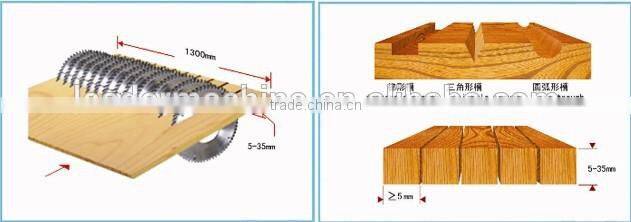

Application: Solid wood composite floor, reinforced composite floor, panel furniture, environmental protection sound-absorbing panel, wood container, glue-laminated board, photo frames, and bed bases. It can saw one plate into several parts in same or different specifications, or is used for grooving on surfaces of boards. Precision saw spindle can make sure the sawed plates are more accurate in finish and straightness.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
