Panel Saw
Model:PUNTO400
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
if you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas

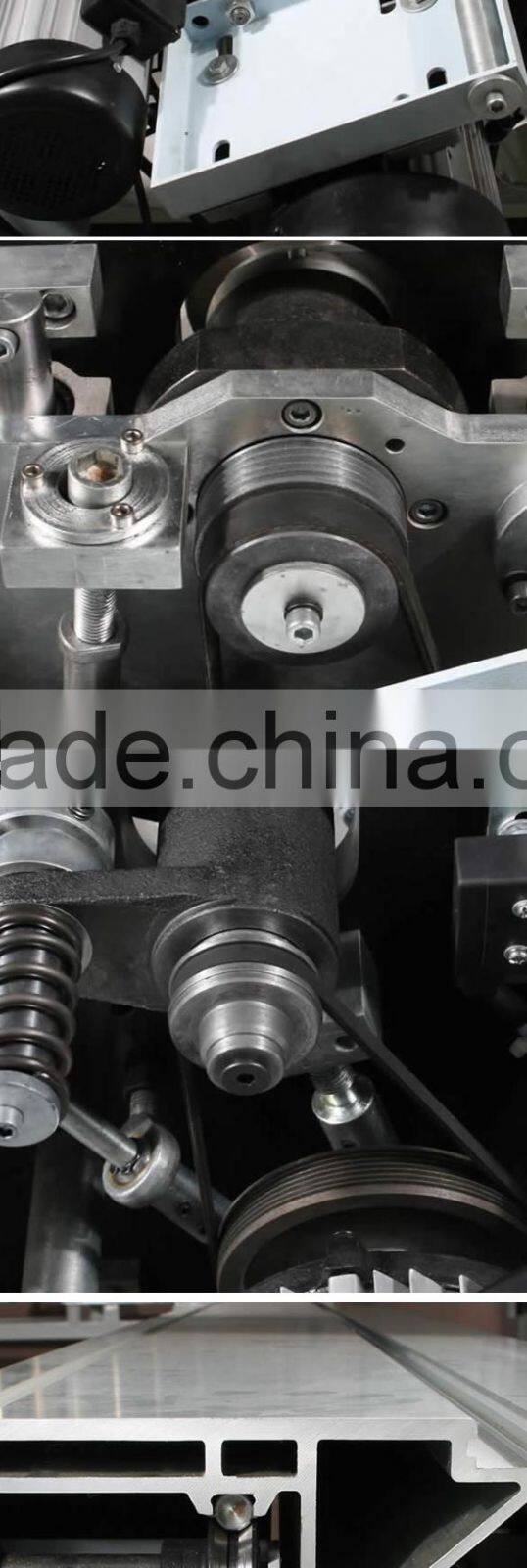

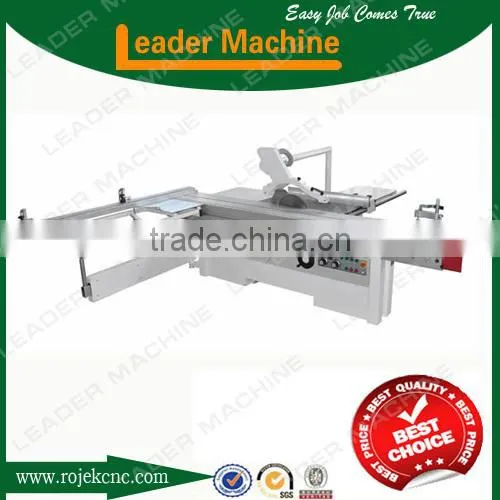

Panel Saw PUNTO400
Squaring circular saw with tilting blade and scoring unit | PUNTO 400 | |
Blade diameter | mm | 400 |
lade shaft diameter | mm | 30 |
Max cutting height at 90° | mm | 130 |
Max. blade tilting | 45° | |
Max cutting height at 45° | mm | 90 |
Blade shaft speeds | r.p.m | 4000/5000/6000 |
Diameter of scaring saw | mm | 120 |
Diameter of scoring saw | mm | 25 |
Max cutting height of scoring blade at 90° | mm | 4 |
Max. tilting of scoring table | 45° | |
Max. cutting height of scoring blade at 45° | mm | 3,0 |
Scoring shaft speeds | g/min | 8000 |
Scoring motor power | Hp | 0,75 |
Size of fixed table | mm | 690x1020 |
Table height | mm | 900 |
Size of sliding table | mm | 423x3200 |
Max. squaring-off length to the blade | 3200 | |
Max. cutting width between blade and fence | mm | 1300 |
Max. squaring-off length from scorring blade | mm | 3200 |
Diameter of suction outlet | mm | 120 |
Net weight | Kg | 810 |
Motor power | Hp | 5,5 |
Service wrenches | ||
|
|
|
Accessories en option | PUNTO 400 | |
Motor | Hp | 10 |

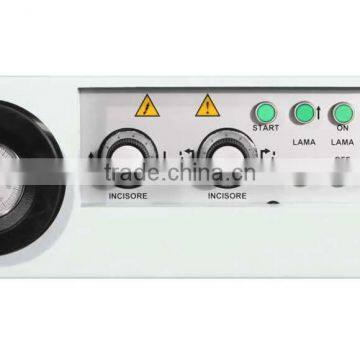

LED speed display | * | |
|
|
|
Standard accessories | PUNTO 400 | |

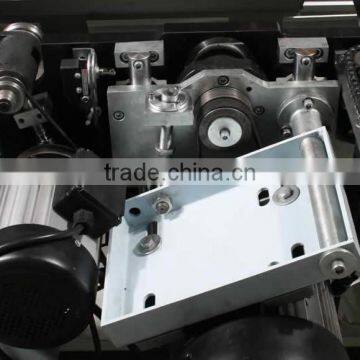

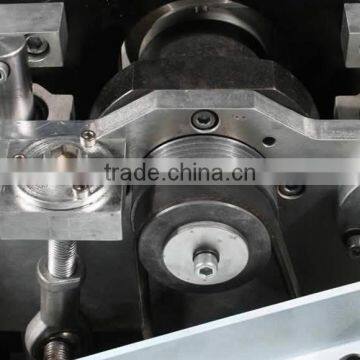

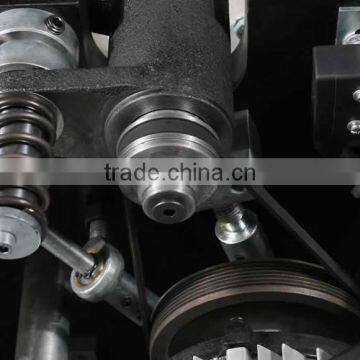

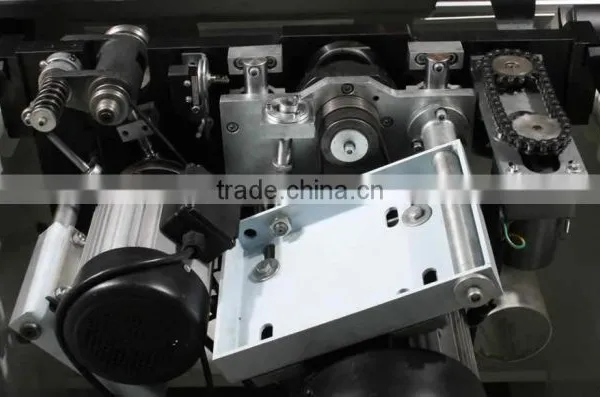

Tilting main saw and scoring saw | * | |

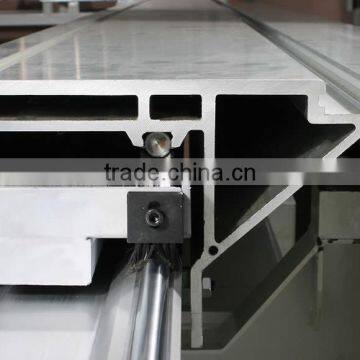

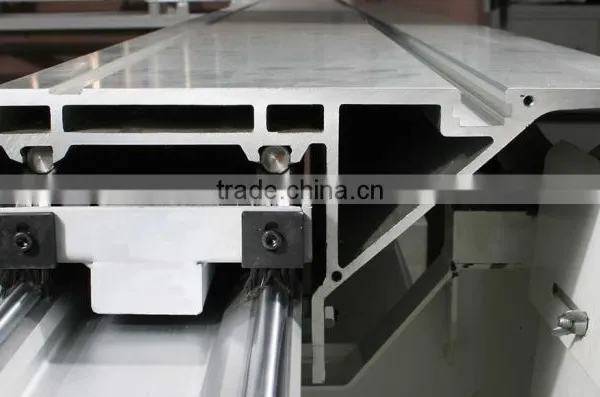

Aluminium sliding table | * | |
Eccentric clamp | * | |
Safetey guard for accident preventions | * | |
Parallelogram-type guard | * | |
Carriage can be locked in any position | * | |
Rear support surface | mm | 660x1130 |
Side support surface | mm | 400x690 |
Side link | mm | 870x700 |
