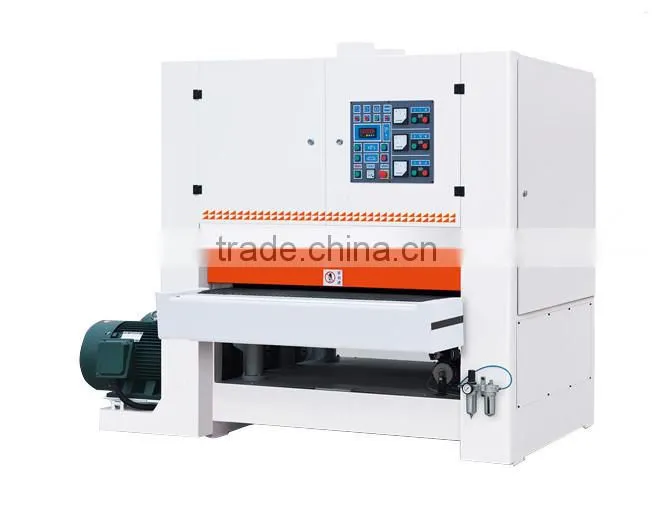

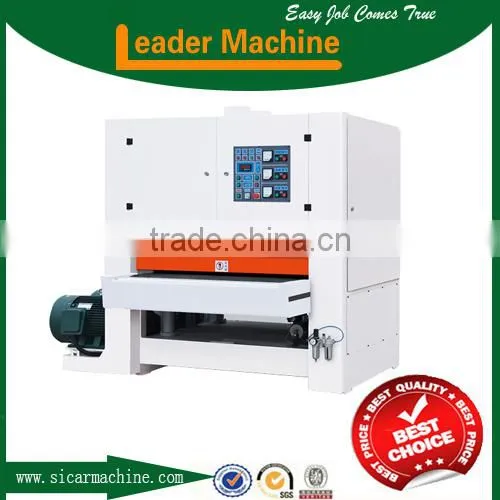

Hot sell good quality sanding machine/wood planing machine
Model:R-R-P1300
Specification:
1.Taiwan imported spiral planing roller,high precision,high stability,large amount of planing.
2.Double belt type combination,ensure the sanding precision and surface roughness of workpiece.
3.According to the customer request refit conveyor belt for frequency conversion control,improve the efficiency of conveying belt.
Model | BSG630 | BSG1000 | BSG1300 |
Working width | 30-630mm | 30-1000mm | 30-1300mm |
Working thickness | 2.5-80mm | 2.5-80mm | 2.5-80mm |
Feed speed | 6-30m/min | 6-30m/min | 6-30m/min |
Size of abrasive belt | 650*1780mm | 1030*2200mm | 1330*2200mm |
Total power | 31.37kw | 54.57(43.57)kw | 85.37(78.37)kw |
Plane roller motor | 11kw | 15kw | 22kw |
NO.1 abrasive belt motor | 11kw | 22(15)kw | 37(30)kw |
NO.2 abrasive belt motor | 7.5kw | 15(11)kw | 22kw |
Conveyor belt motor | 1.5kw | 2.2kw | 4kw |
Lifting motor | 0.37kw | 0.37kw | 0.37kw |
Working air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
Consumption of compressed air | 0.5m³/min | 0.5m³/min | 0.5m³/min |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
