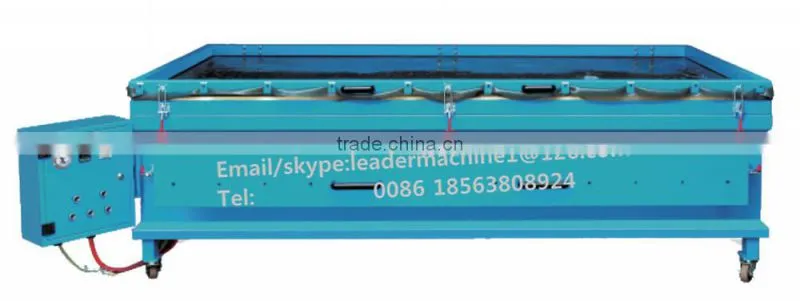

plywood bending press For woodworking machinery
Model: LD9055
Vacuum Press For woodworking machinery
Specifications
vacuum forming press mahcine
1.easy to operate
2.High efficiency
3.Steel body
ITEM | LD9055 |
Heating oven usable area | 2550 *1150 mm |
Heating oven material thickness | 0 - 70 mm |
Heating power | 9 KW |
Pull-out operation of the working surface(pattern) | 30 *30 mm |
Variable temperature setting | +200 °C |
Circulating hot air fans power | 70W *2 |
Forming station usable area | 2500 * 1280 mm |
Vacuum pressure | 9 t/m² |
Vacuum pump power | 750W |
Total power | 10KW |
Overall dimension | 3400 * 1560 *1030 mm |
weight | 1200kg |
Equipment characteristics
1.the machine is saving two fauction in one machine for heating and forming of material
2.used to forming small workpiece to more shape
3.used to veneer pressing, flat pressing, curved pressing, HPL pressing
4.used forming MDF, Acryl, ABS and PVCsed foming MDF, Acryl, ABS and PVC
5.easy operation and maintaince.
This vacuum membrane press machine specialize in wooden material and plastic material forming, bottom drawer heating distribution everly on the whole heating surface by fans.
PS:We can produce this type machines according to any of customer's requirements.
This vacuum press machine specialize in usd PVC covered curved panel, such as the MDF board, plyboard, wooden sheet, wood plastic sheet etc.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
