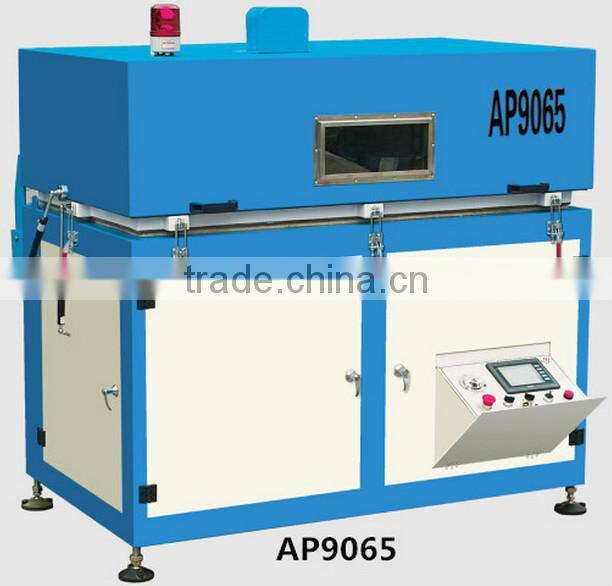

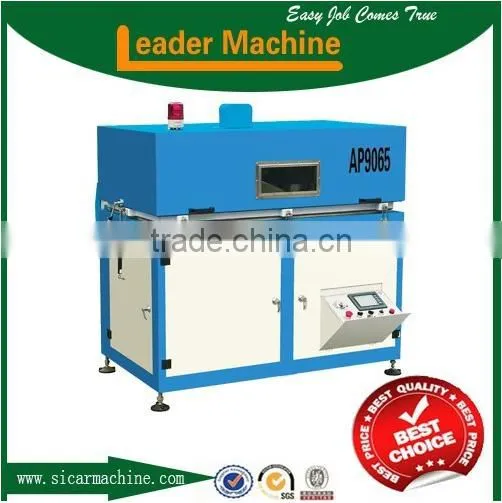

PVC vacuum press machine
Model:AP9065
Vacuum press machine
puter touch screen
2.high efficiency, ecnomize material
3.stainless steel work table
Model | AP9065 |
Overall dimensions | 1500*1030*1300mm |
Workpiece dimensions | 970*640*18mm |
Workpiece inner radius | 400mm |
Cycle time | APX25mins |
Heating temperature | 120℃ |
Max. vacuum pressure | -0.92Kpa |
Vacuum pump capacity | 40m³/h |
Noise level | 60dB |
Heating elements power | 7.2Kw |
Vacuum system power consumption | 1.5Kw |
Total power | 8.7Kw |
Weight | 390kg |
Equipment characteristics
1.PLC control, computer touch screen control system, easy operate and maintain.
2.low temperature and high pressure to portect the PVC color.
3.high efficiecy, economize material, saving time, high quality guarantee no blister after press.
This machine has the same function with our two worktable vacuum membrane press machine .Its with the new technology, Touch screen operation, degital tempreture control system, high automatic machine. It can press PVC FILM, WOOD VENEER, AND DECOTATIVE PAPER on the surface of all kinds of door, cupboard, furniture.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
