Home > Products > Woodworking Press Machine > MH38410A*100 CE Certification Woodworking Hot Press Machine

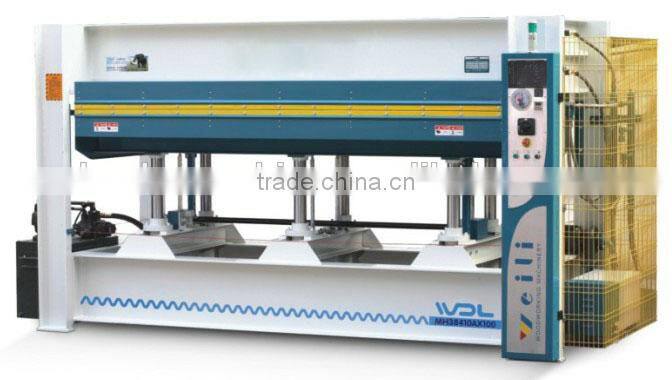

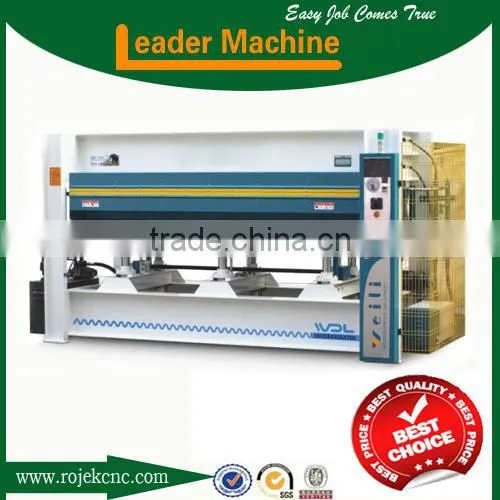

MH38410A*100 CE Certification Woodworking Hot Press Machine
- 200 Unit / Units per Month
- QINGDAO
- T/T
- Automatic powder coating machine-ZHT-Made in China-Shenyang Liaoning
- LIVTER Fully Automatic Hydraulic Chilling Press Hydraulic Wooden Wood Door Press Machine
- 60T Hydraulic Multi-Layer Wooden Door Cold Pressing Machine For Multilayer Plywood Honeycomb Panel
- PL8-D High Quality Hydraulic Hot Press Plywood machine
- Pvc film vacuum membrane press machine for wood cabinet door PVC laminating machine for interior door making
- one table PVC foil vacuum press machine Pvc film vacuum membrane press for wood cabinet door
Product Details
Condition: | New | Type: | Hot Press | Place of Origin: | Shandong, China |
Brand Name: | LEADER | Model Number: | MH38410A | Voltage: | 220v |
Dimension(L*W*H): | 420*166*206cm | Certification: | CE | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Woodworking Hot Press Machine
Model:MH38410A*100
model | MH38410A*100(1Layer) | MH38410A*100(2Layer) | MH38410A*100(3Layer) |
MH38410A*100(1Layer) | MH38410A*100(2Layer) | MH38410A*100(3Layer) | |
press platen dimensions | 1300*3000*42mm | 1300*3000*42mm | 1300*3000*42mm |
Max. total thrust | 100t(2.5kg/cm²) | 100t(2.5kg/cm²) | 100t(2.5kg/cm²) |
pressure of hydraulic system | 295kg/cm² | 295kg/cm² | 295kg/cm² |
Max. platen opening | 380mm | 170mm | 100mm |
oil cylinder | 85mm*6pcs | 85mm*6pcs | 85mm*6pcs |
hydraulic motor power | 4kw | 4kw | 4kw |
hot oil pump power | 1.5kw | 1.5kw | 1.5kw |
heating pipe power | 27kw | 36kw | 45kw |
overall dimensions(L*M*H) | 420*166*206cm | 420*166*206cm | 420*166*206cm |
net weight | 5760kg | 7045kg | 8330kg |
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
