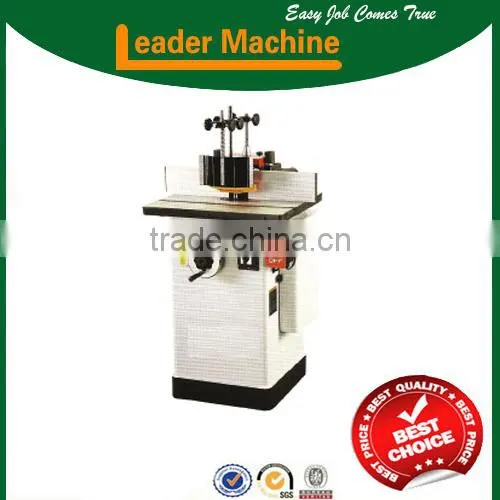

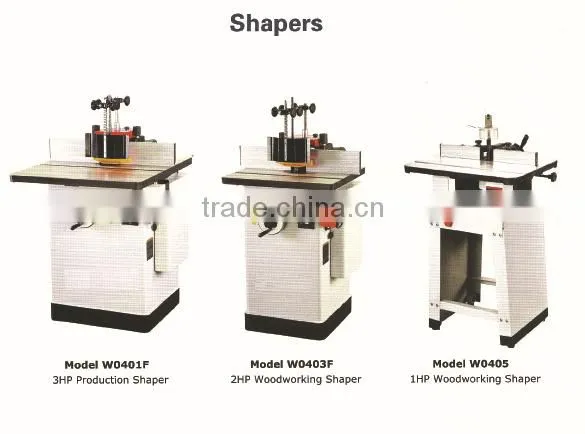

Spindle Moulder
Model:W0403F
| motor | 2HP(1.5KW) | |
| spindle | capacity | 3/4"&1/2" |
| speed | 3500RPM/7000RPM | |
| spindle travel | 75mm | |
| table(main) | length | 610mm |
| width | 534mm | |
| fence size(each side) | 300*120*20mm | |
| packing information | packing dimensions(L*M*H) | 670*575*1100mm |
| gross weight | 150kg | |
| QT/20 feet container | 64pcs | |
Features
1.Powerful 2HP motors delivers smooth, consistent power on even heavy duty jobs.
2.Staring pin for irregular shaping.
3.two-speed step pulley drive lets you select the best speed and torque for different cutter diameters.
4.Independent left and right fence for easy and accurate fence adjustment.
5.Spindle lock allows quick, easy cutter set-up and removal.
6.1/2"and 3/4" interchangeable spindle, 1/2" and 1/4" router bit collets for use with shaper cutterhead and router bits.
fence assembly interchangeable spindles3/4"&1/2" router bit collects1/2"&1/4" miter gauge
spindle molder knives set(SMKS) trolley kit
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
