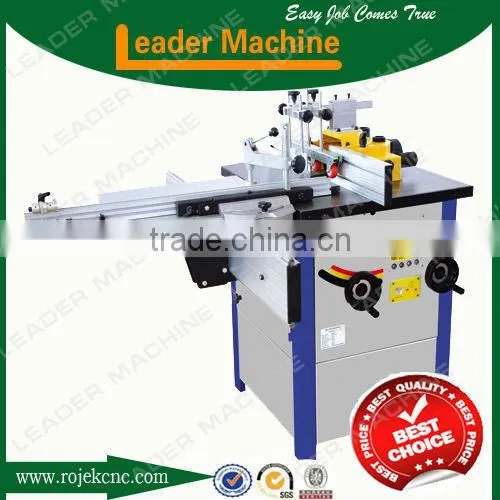

Wood Shaper Spindle Moulder
Model:MX5110T
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
Wood shaper spindle moulder
Model:MX5110T
Features:
- Tilting arbor to 30º for various profiles
- Cast iron cutter guard with 4" dust port
- 30mm spindle
- 90mm spindle travel
- 200mm spindle length
- Rise and fall adjustment and spindle lock for easy cutter change
- 4 spindle speeds with FWD/REV 1800, 3000, 6000, 9000rpm
- Large ground, cast iron work table (710 x 640mm)
- 100mm dust collector port
- 900mm table height
- Includes sliding table with mitre, micro adjustment aluminium fence and top clamp
SPINDLE DIAMETER | 30MM |
SPINDLE TRAVEL | 100MM |
SPINDLE TILT | -10°+30° |
SPINDLE RPM(FOUR SPEED) | 9000 6000 3000 1800RPM |
MAIN TABLE SIZE | 710 X 640MM |
TABLE HEIGHT | 900MM |
MOTOR POWER | 2800W |
SLIDING TABLE SIZE | 500 X 480MM |
SLIDING TABLE TRAVEL | 850MM |
