Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > LEADER4212YP Mobile Gantry CNC Machining Center Table

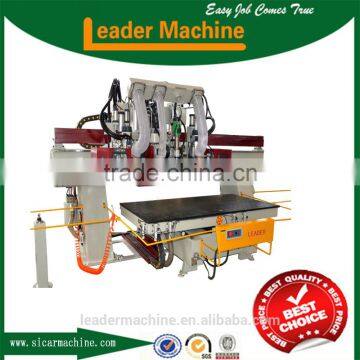

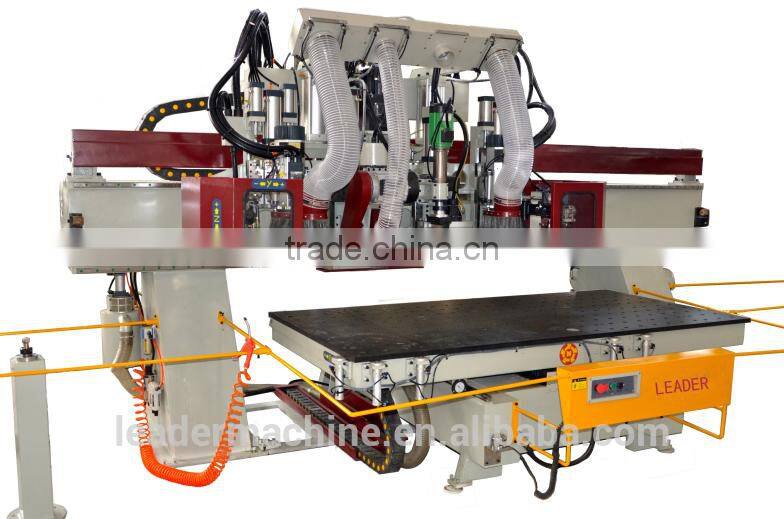

LEADER4212YP Mobile Gantry CNC Machining Center Table

Name: LEADER4212YP Mobile Gantry CNC Machining Center Table
Brand: LEADER
SKU: 143427954
Availability: InStock

LEADER4212YP Mobile Gantry CNC Machining Center Table thumbnail-1

LEADER4212YP Mobile Gantry CNC Machining Center Table photo-1

US$ 1 - 1 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Longkou Leader Imp& Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name LEADER

Model Number LEADER4212YP

Certification Ce

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Name: Mobile gantry CNC machining center table

Model: LEADER4212YP

Model		CNC2412C multispindle	CNC2412CH Magazine
Size mm		2440X1220	2440X1220
stroke	X	2500	2500
	Y	1300	1300
	Z	250	250
Main shaft	1#	6KWAir Cooled18000rpm-Manual tool change spindle 13.5KWAir Cooled18000rpm-Manual tool change spindle
	2#	9KWAir Cooled0-24000rpm ER32 The chuck can be replaced ten tool magazine 12KWAir Cooled0-24000rpm ER32
	3#	Saw milling and drilling spindle multifunction
	4#	Gas row combination drilling spindle (X to the 11-hole-drilling;Y Optional hole to 1-5)
	5#	Square hole drill spindle
The length of the spindle carrier		1600MM;2000MM;2500MM
Axis spacing MM		Smallest 250MM
Z axis guide way		Light: two rail four sliders;Heavy: Four rail eight sliders
Vacuum pump		4KW 160m³/h; 6KW 250m³/h
The fastest cutting speed		X Y:40m/min; Z:15 m/min
Installed powerkw		33-55	26
Machine weight kg		5500-6500	6000

Table portable, integrated design beams, the whole cast Z-axis part
Servo, all screw guide transmission
WINCE secondary development system that supports keyboard and mouse; the system bus and memory control using the absolute encoder technology mechanical origin, the boot does not require homing.
Modular spindle assembly: HSD9kw cooled 1000-24000rpm ER32 ATC;
               HSD14kw cooled 1000-24000rpm ER32 ATC;
               Drilling Group 7 + 2; 11; 10 + 2 + 1
               Hong Jin saw milling and drilling spindle multifunction
               5 double swing spindle axis 5 linkage;
X Y fastest moving speed 40M / MIN
