Help Center2016 New Designed Fully Automatic Energy-saving ps Foam Food Container Forming Machine
Related Products
-
2017 High Quality Fully Automatic ps Foam Food Container Making MachineUS$ 20,000 - 220,000MOQ: 1 Set -
2016 High Quality Low Cost Disposable ps Foam Food Container MachineUS$ 20,000 - 220,000MOQ: 1 Set
-
2017 Newly Disposable Food Box Production LineUS$ 20,000 - 220,000MOQ: 1 Set
-
2016 Popular Advanced ps Foam Food Box Making Production LineUS$ 20,000 - 220,000MOQ: 1 Set
-
2016 Hot Selling Lunch Box Production Line/disposable Food ContainerUS$ 20,000 - 220,000MOQ: 1 Set
Fully Automatic Mechanical Hand PS Foam Food Container Forming Machine
The machine is all-powerful thermoforming machine with integrating vacuum forming, cutting off, stacking parts and counting of products, composited with those parts as below:
Loading parts-heating parts(three heating zone)-forming parts-cutting off parts-double workstation mechanical hand-winding parts for scraps(or crusher in line)-products conveyor double station.
The machine, with great dependable stability, integrates the forming, cutting off, and stacking as well conveyor at the same time.
The machine is much convenient for operator as the humanly design. In addition, it has the feature of the bigger forming area, faster speed of forming and highly automation.
The products will be collected with stacking parts and conveyed automatically via conveyor. The scraps will be winded or crushed in line also.
The more energy will be saved, the safety of operator will be enhanced, but the cost of running machine will be economized.
The heating parts of machine is designed to be three heating control, the temperature of which is from low to high, in order to make the products perfect.
As the performance of PS foam sheet, such as strength, stretch and heating-resist, will be favorable for the forming in the low temperature setting.
There is hydraulic station used for the forming and cutting off parts as the driving, with the feature of big molds punch power and higher speed.
And the cutting off board could be moved forwarder and back to meet the actual needs of different molds.
The knife molds could be micro-adjusted to get the accurate cutting.
The mechanical hand of machine could be adjusted to move up and down, front and back, using the electronic adjustment control, to meet the different needs of molds with various sizes. And the suction cup of mechanical hand could be added or reduced as the real operations to meet the needs of final products.
Technic flow as below:
Loading ps foam sheet roll--Ps foam sheet enter forming machine--Preheating--Heating--Forming--Cutting off--Mechnical hand pickup the containers( Double Worktable)--Packing--Scrap winding or crushing

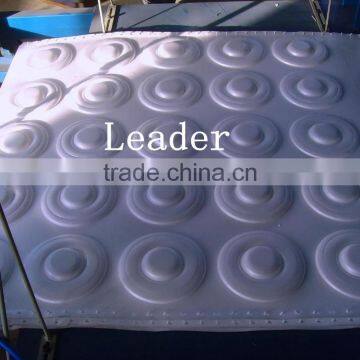

Finished Products:
Technical Parameters:
Parameters | Unit | YTTH-640/850 | YTTH-1040/1250 |
Forming area | mm | 640x850 | 1040x1250 |
Cutting height | mm | 160 | 160 |
Production efficiency | S/Die | 3-8 | 3-8 |
Installed dimension | m | 11x3.5x2.5 | 15x5x2.5 |
Installation power | Kw | 100 | 180 |
Power supply | 380V 50HZ 220V 60HZ 3 phase 380V 50HZ 3 phase 220V 60HZ | ||
Q:Why I choose your company?
A: a. We are China Leading foam machine Manufacturer.
b. our company have made foam machine for many years with strong experience.
c. Best Quality & Best Service with Competitive price.
d.100% inspection Before Shipment.
e.we have Professional technical team, will supply 24 hours service
Q:What is the material of PE foam sheet production line?
A:Polyethylene, Talcum powder, Butane and so on.
Q:Can you make machine upon our requirement?
A: It is no problem, we can make machine according to your requirement, such as part brand, machine color, labels, moulds, etc.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Engineers available to service machiner overseas.
