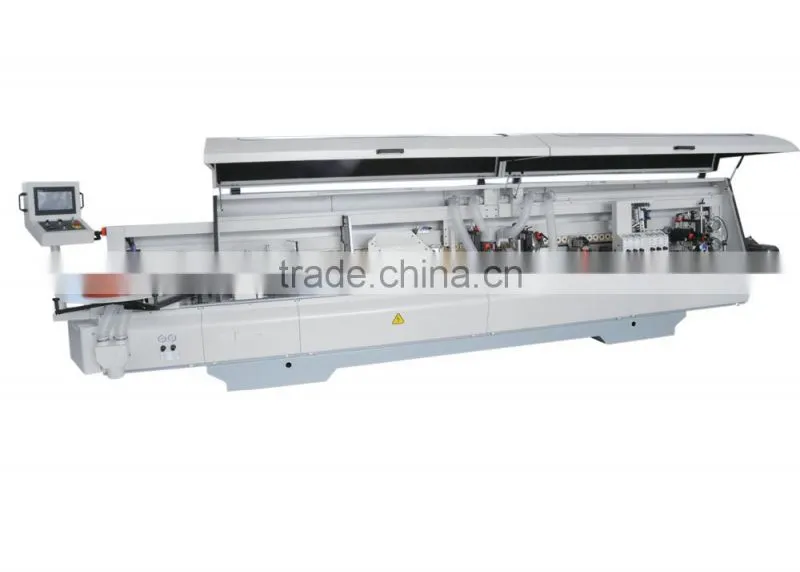

Wood Edge Banding Machine
Model:MFB60CYF
| panel length(round-trimming/PRE-milling) | Min.120(140/320)mm(PVC) |
| panel width(round-trimming/PRE-milling) | Min.60(120/)mm |
| panel thickness(round-trimming/PRE-milling) | 10-60(10-45)mm |
| edge width( round-trimming/PRE-milling) | 15-65(15-50)mm |
| edge thickness (round-trimming/PRE-milling) | 0.4-15(0.8-3)mm |
| feeding speed (round-trimming/PRE-milling) | 15,19(12/)m/min |
| in-put voltage | 380v |
| in-put frequency | 50Hz |
| out-put frequency | 200Hz |
| total power consumption | 13.22kw |
| required air pressure | 0.7Mpa |
| net weight | 3100kg |
| overall dimensions(L*M*H) | 6800*860*1650mm |
1.The body and binder beam with heavy-duty steel and with special heat treatment process, better stability.
2.100%TAIWAN AIRTAC air-operated to ensure the accuracy.
3.100% electrical components are supplied by SIEMENS, SCHNEIDER, OMRON, DELTA and LG brand.
4.Large and small knife eliminate the limitations of material choice.
5.Five edging and rolling system makes the fit closer and smooth.
6.Stable high speed edge feeding system, 19m/min. Speed adjustment 9-19m.(economy E is two-speed)
7.Panel width Min.60mm
8.Wood edge thickness Max,15mm and Min.0.4mm.
9.Humane clamping bar. Easier operation when the edge thickness change.
10.All the parts are made with fine processing of high-precision CNC Center, and this ensures the stable and high effciency operation.
11.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
