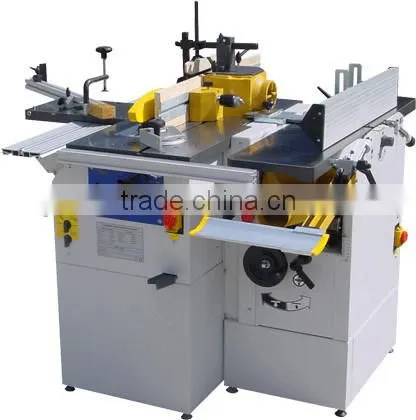

C250 Carpentry universal combined woodworking machine

C250 Carpentry universal combined woodworking machine

   C250 Carpentry universal combined woodworking machine

The C250 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory,small professional workshop or home user. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

Being a professional standard machine, the C250 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.

The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.

The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.

Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.

Model NO.:C250
Motors: 2 x 1,500W + 1 x 1,100W
Bench saw:
Table size: 940 x 410mm
Sliding table size: 400 x 250mm
Blade size: Φ200 x Φ30 x 2.2mm
Blade speed: 4,750rpm
Cutting capacity: 60mm/90°, 38mm/45°
Spindle shaper:
Table size: 940 x 410mm
Spindle size: Φ30mm
Spindle travel: 80mm
Maximum tooling diameter: 140mm
Package:
Packing size: 113 x 50 x 74cm
Net weight/gross weight: 169/200kg
Quantity/20ft carton: 36pcs
Planer & Thicknesser:
Table Size:1085x253mm
Planer Width: 248x600mm
Blade Speed:4000rpm
Blade Size:250x30x3mm
Max.Cut depth of planer:5mm
Max.Cut depth of thicnesser:2.5mm
Thicknesser Capacity:195mm
Thicknesser Feed Speed:8m/min
Sliding carriage:
Sliding Table Size:400x250mm
Traveling Distance:750mm

Packing Size:113x69x57cm
NW/GW:112/148kgs

Features:

Panel saw sliding beam

Scoring for veneered boards

Accurate cross cut fence with flipstops

Cast iron construction

Sturdy swinging arm squaring frame

Inward parallel swing planer table

Micro adjust spindle moulder fence

3 class 1 motors

Fully adjustable settings
