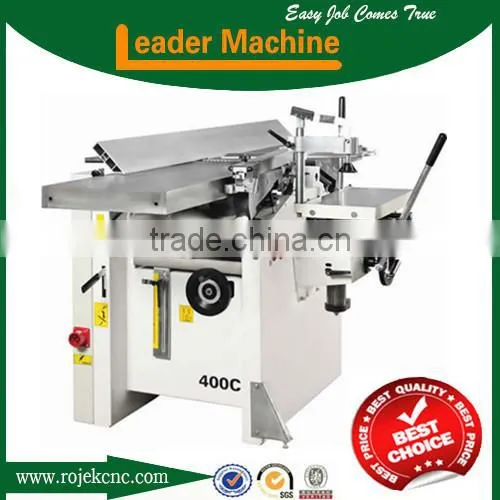

400C - 3 Works Woodworking Combines Machine

400C - 3 Works Woodworking Combines Machine photo-1
Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name LEADER
Model Number 400C
After-sales Service Provided Engineers available to service machinery overseas

3 works woodworking combines machine

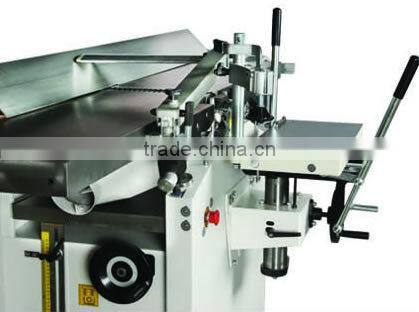

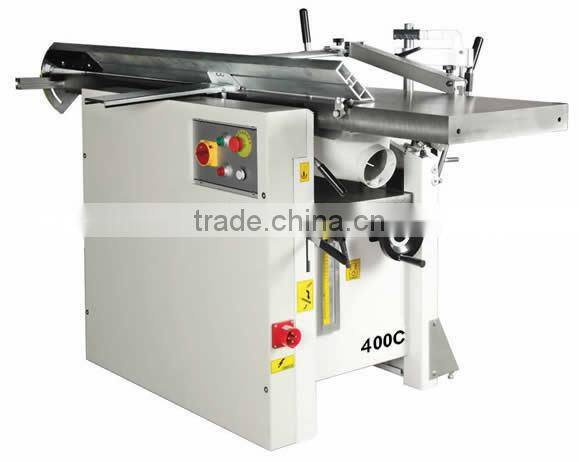

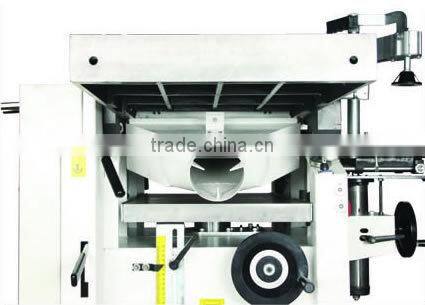

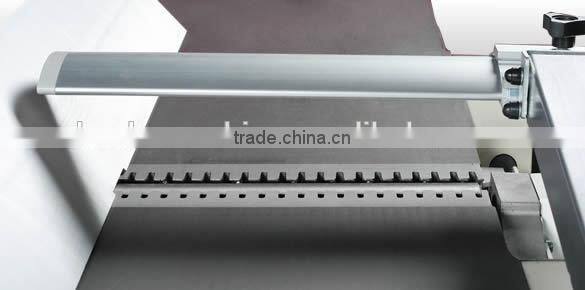

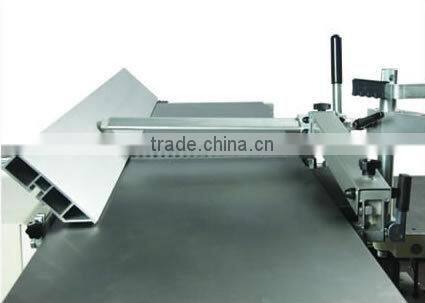

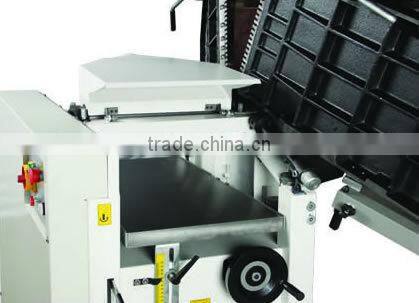

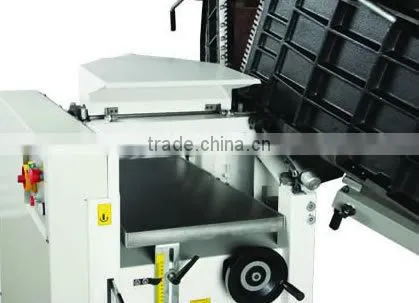

400C - 3 works woodworking combines machine

 400C - 3 works woodworking combines machine







Product Description

400C-3 Works Woodworking Combines Machine.

Surface planer, thicknesser machine, mortiser



Planer    400C
Working tables mm 400x1800
Cutterblock diameter mm 70
Cutterblock rotation speed r.p.m  5700
N. of knifes 3
Knifes dimensions mm  400x20x3
Max table adjustement mm 4

Thicknesser    400C
Working table mm 400x760
Feed speed m/1'  7
Max. working height mm 220
Min. working height mm 4
Cutterblock rotation speed r.p.m. 5700
Max. cutting depth mm 4,0

Standard accessories   400C
Service wrenches
Guards on mortiseur chuck   *
Planer guide
3-phase motor power HP - KW 4,0 - 3,0
Weight  kg 390

Optiona accessories   400C
Single-phase motor HP - KW 3,0 - 2,2
Increasing 3-phase motor HP - KW 3,0 - 2,2
Increasing 3-phase motor HP - KW 5,5 - 4,0
Extraction  HP - KW 0,5 - 0,36
Mortiser
  Working table mm 250x500
  Longitudinal stroke mm 205
  Trasversal stroke mm 95
  Vertical stroke mm 90
  Churck (SX) mm 16
  Churck rotation speed r.p.m.  5700
Weight kg 35
westcott (diameter) mm 16









Product Details







400C - 3 works woodworking combines machine



400C - 3 works woodworking combines machine





400C - 3 works woodworking combines machine







400C - 3 works woodworking combines machine





400C - 3 works woodworking combines machine





400C - 3 works woodworking combines machine



Our Services



If you want to test the performance of machine ,we can sent sample to you with cost offer .



Customized Service :



Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.



After-sale Service:



1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4)Engineers available to service machiner overseas.
