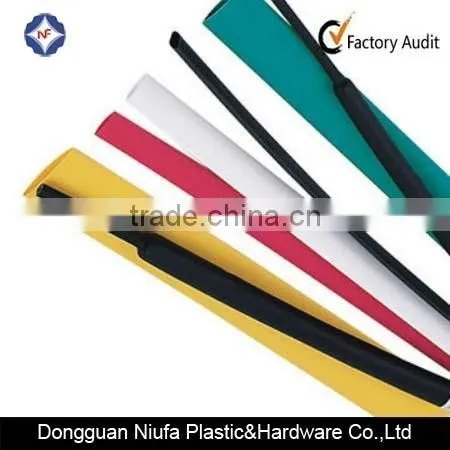

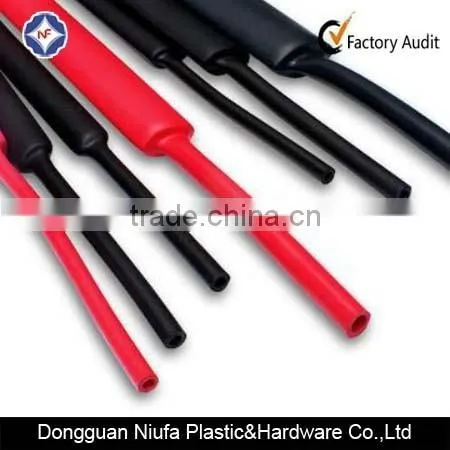

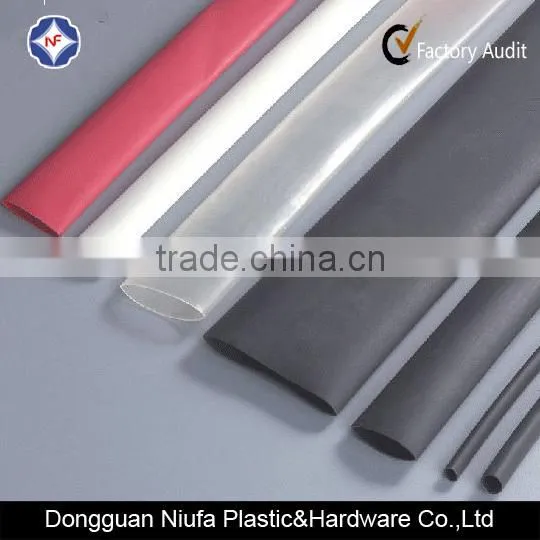

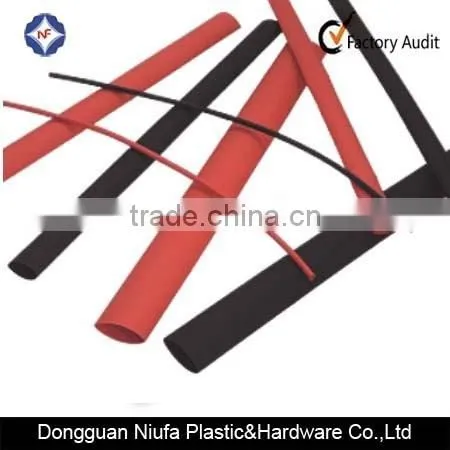

Help CenterFlame Retardant Heat Shrink Tubing RSFR-HT(2X)
Related Products
-
Colorful Heat Shrink Tube for Fishing RobUS$ 0.5 - 4MOQ: 100 Rolls -
Non-slip Beautiful and Easy to Use Heat Shrink TubeUS$ 0.5 - 4MOQ: 100 Meters
-
Colored Durable Protective Tube Heat Shrink Plastic TubesUS$ 0.05 - 2MOQ: 500 Meters
-
PE Cable Accessories Black Heat Shrink Tubes Made in ChinaUS$ 0.04 - 2.8MOQ: 100 Meters
-
High Quality Heat Insulation Heat Shrink Tubes for ElectronicUS$ 0.04 - 2.8MOQ: 100 Meters
Dimension
Size | As supplied | After Recovery(mm) | Standard Package | ||
Inch | mm | Internal diameter(mm) | Internal diameter(mm) | Wall thickness(mm) | Spool Length m/spool |
3/64 | 1.2 | 1.2 | 0.6 | 0.33 | 200 |
1/16 | 1.6 | 1.6 | 0.8 | 0.33 | 200 |
3/32 | 2.4 | 2.4 | 1.2 | 0.44 | 200 |
1/8 | 3.2 | 3.2 | 1.6 | 0.44 | 200 |
3/16 | 4.8 | 4.8 | 2.4 | 0.44 | 100 |
1/4 | 6.4 | 6.4 | 3.2 | 0.56 | 100 |
5/16 | 7.9 | 7.9 | 4.0 | 0.56 | 100 |
3/8 | 9.5 | 9.5 | 4.8 | 0.56 | 100 |
1/2 | 12.7 | 12.7 | 6.4 | 0.56 | 100 |
5/8 | 15.9 | 15.9 | 8.0 | 0.69 | 100 |
3/4 | 19.1 | 19.1 | 9.5 | 0.69 | 100 |
1 | 25.4 | 25.4 | 12.7 | 0.77 | 50 |
1-1/4 | 31.8 | 31.8 | 15.9 | 0.87 | 50 |
1-1/2 | 38.1 | 38.1 | 19.1 | 0.87 | 50 |
2 | 50.8 | 50.8 | 25.4 | 0.97 | 25 |
3 | 76.2 | 76.2 | 38.1 | 1.17 | 25 |
4 | 101.6 | 101.6 | 50.8 | 1.17 | 25 |
5 | 127.0 | 127.0 | 63.5 | 1.17 | 25 |
6 | 152.4 | 152.4 | 76.2 | 1.17 | 25 |
Technical Data Physical
Items | Test method | Typical data |
Tensile strength(MPa) | ASTM D2671 | ≥10.4 |
Elongation(%) | ASTM D2671 | ≥200 |
Longitudinal change(%) | UL224 | ≤±5 |
Tensile strength after aging(MPa) | UL224 180℃×168hrs | ≥7.3 |
Elongation after aging(%) | UL224 180℃×168hrs | ≥100 |
Heat shock | UL224 250℃×4hrs | No dripping,Nocracking |
Cold blend | UL224 -30℃×1hrs | No cracking |
Dielectric strength(kv/mm) | IEC243 | ≥15 |
Volume resistivity(Ω cm) | IEC93 | 1×1014 |
Copper stability | UL224 | PASS |
Flammability | UL224 | VW-1 |
Water absorption(%) | UL224 | ≤0.5 |
Corrosion | UL224 | PASS |
1. Free sample offered.
You can choose any models at our website and write to us ,we will send samples by express courier like DHL,FedEx or others.
2. Any color is available.
3. OEM accepted.
4. Your visit to company welcomed.
1 :Are you manufacturer ?
A Yes,We are professional manufacturer of twist tie and nose wire since 2002.
2 :do you offer sample product for free ?
A.Sample is free,but the transport cost is usually born by customer
A.Normally 2-3 weeks but during busy season ,it is 3-4 weeks.
4.How to pay for the order ?
A.30% deposit before production and full balance before delivery .
5. Do you provide other kinds of twist ties?
A yes, we provide many kinds of plastic twist ties.
Dongguan niufa plastic & hardware Co., Ltd was named Dongguan youfa plastic factory established in 2002, in the 14 years' experience, we have established good fame at home and abroad. Our main product are plastic nose wire, plastic twist tie ,paper,garden wire ,paper twist tie and ear loops.
