Home > Industrial Equipment & Components > Engine & Part > Engine > 195FA Single Air-cooled Diesel Engine

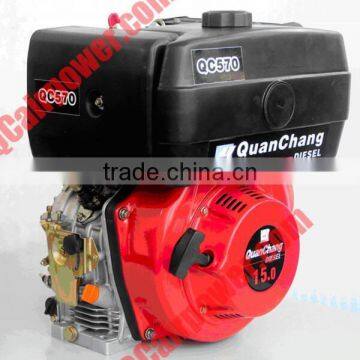

195FA Single Air-cooled Diesel Engine

195FA Single Air-cooled Diesel Engine photo-1
US$ 300 - 600 MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, generator set
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Other, generator set
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Jiangsu, China
Brand Name QUANCHANG
Model Number QC530
Dimension(L*W*H) 420 x 440 x 505 mm
Weight 48kg
Certification ISO9001, CE
Warranty 1 Year
After-sales Service Provided Overseas service center available
Product Description

195FA single air-cooled diesel engine





1.    independent research & development with the core patented technology,mature & reliable products

2.    strong power,low lube oil temperature

3.    low lube oil consumption,low emission

4.    easy start,application widel



Model

QC530

QC570

Type

single,4-stroke,air-cooled,direct injection

Displacement

(L)

0.531

0.567

Output power

(KW)

8.5

9

10

11

Rated speed

(r/min)

3000

3600

3000

3600

Fuel consumption

(g/kw.h)

≤280

310

≤255

≤270

Fuel tank capacity

(L)

6.5

Lubricating way

forced & splashing

Lube oil capacity

(L)

1.65

Starting way

spring / electric

Rotation direction at output end

counter-clockwise

Dimension

(mm)

420×440×505

Net weight

(kg)

                                48

Packaging & Shipping

Package of QC530 single air-cooled diesel engine

Plywood case.



Shipping of QC530single air-cooled diesel engine

By sea

195FA single air-cooled diesel engine

Company Information









QC6D-1 diesel outboard

195FA single air-cooled diesel engine





Vertical air-cooled diesel engine QC460V/QC570V



195FA single air-cooled diesel engine



V-twin air-cooled diesel engine QC840XQC870XQC900X

195FA single air-cooled diesel engine195FA single air-cooled diesel engine



6-10KVA silent diesel generator set



195FA single air-cooled diesel engine195FA single air-cooled diesel engine



11-16KVA open frame diesel generator set

195FA single air-cooled diesel engine

The company is located in Nantong Economic & Technological .Development Zone in Jiangsu province.IT is only one hour to Shanghai Hongqiao airport. The company regards independent innovation as the core with many patents, covered airpower and general power. In civil general power, the products developed by the company are of advanced international level and domestic leading level.Single air-cooled Diesel Engine(QC570) is the smallest volume and the lightest weight, but its power is the strongest over the world at present. The Pioneering Silent Generator with Movable Outer Case is the newest designing which is convenient to service. Among the products of 8-12KW generator sets, the products made by the company are more lighter weight and smaller volume than others, and are of  advanced international level. After many years' developing, my department has successfully taken the lead in the global in developing the highly energy-efficient and advanced the energy-prepared changing set of new energy generating system. The perfect combination with solar power generating system  has made solar power  generation become the real independent power generation  without power grid and enter  thousands of households more conveniently and economically. The company has excellent R&D personnel and production management team,mainly engaged in this industry for many years. The enterprise management and quality control are of standard. We will provide the best quality products to all customers from first to last



195FA single air-cooled diesel engine



195FA single air-cooled diesel engine195FA single air-cooled diesel engine

195FA single air-cooled diesel engine





195FA single air-cooled diesel engine195FA single air-cooled diesel engine

Our Services

Service of QC530 single air-cooled diesel engine

  • Free loading capacity analysis
  • Free technology consulations
  • Free testing and debuging
  • 12 months or 1000 hours warranty service
  • Spare parts offered
  • 24/7 on-line technical serivce
FAQ



1Q:Can I only buy parts not whole system?

A: Yes, for example you can manufacture tower in local, we can supply you tower drawing.

2Q:Is it all right to make customer's own brand name

A: Sure,with your authorization of brand

3Q: What are your payment terms?

A: T/T 30% deposit,70% balance before delivery

100% T/T Advanced payment for sample orders L/C at sight

4.Q:How about quality control in your factory?

A:"Quality is first, Customers are friends".

Every piece of goods is tested strictly one by one before packinand shipping.
