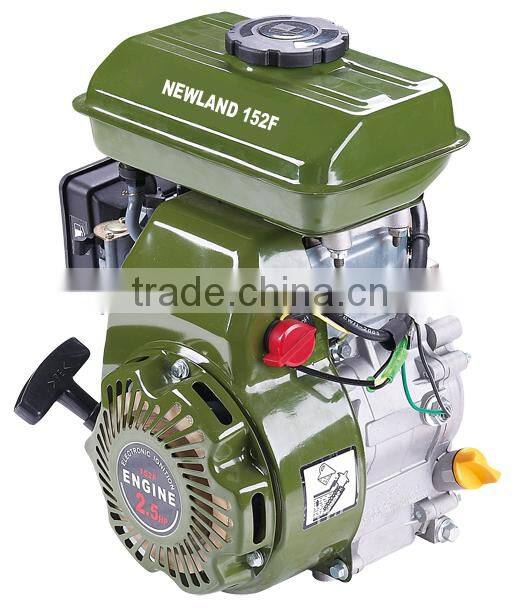

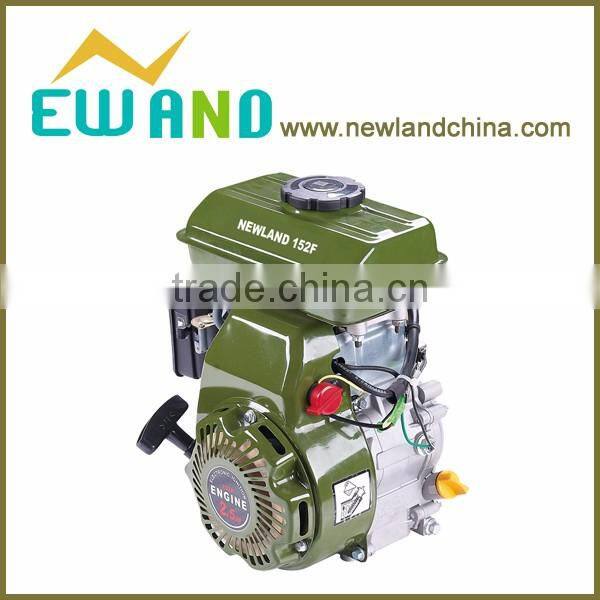

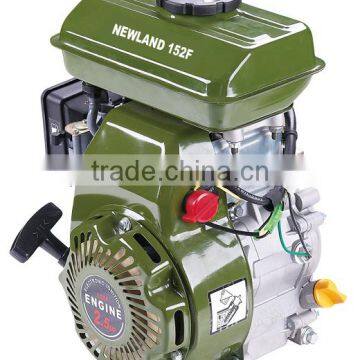

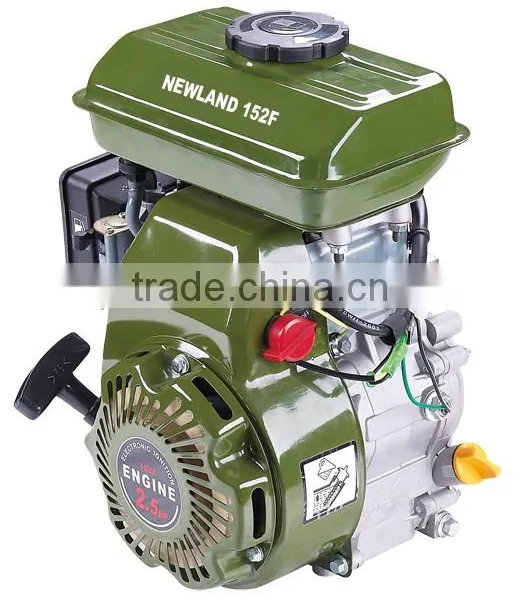

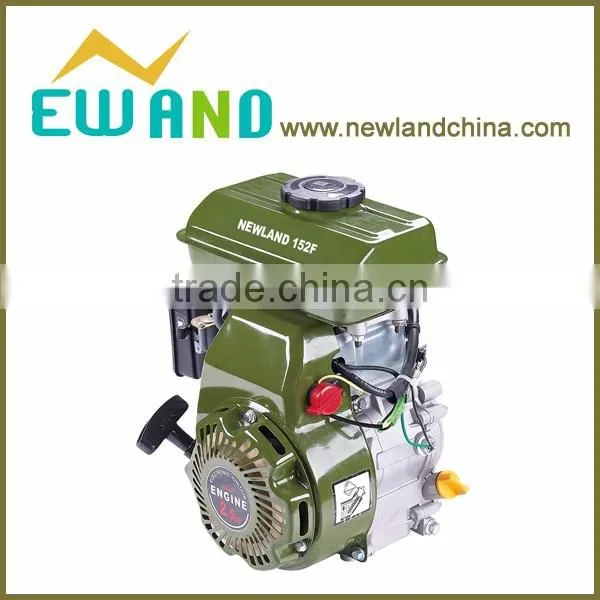

Recoil start/generator engine/ Air-cooled 4 stroke OHV single cylinder/152F 98cc 2.5HP small 4-stroke engine
Feature
1. Portable gasoline generator
2. Economic, low fuel consumption.
3. Compact in structure, low in noise & pollution and high in efficiency.
4. Stable voltage and frequency.
5. Overload protection for safety operation.
6. Exceptional performance at reasonable price.
Suitable for the usage in office, shop, house, travelling, fan place
Item No.: NEWLAND LB154F
Specification
Recoil start/generator engine/ Air-cooled 4 stroke OHV single cylinder/152F 98cc 2.5HP small 4-stroke engine | ||||||
| Model | 168F | 168F-1 | 170F | 177F | 188F | 190F |
| Engine Type | Air-cooled 4 stroke OHV single cylinder | |||||
| Bore X Stroke(mm) | 68 x 45 | 68 x 54 | 70 x 54 | 77 x 58 | 88 x 64 | 90 x 66 |
| Displacement(cc) | 163 | 196 | 210 | 270 | 389 | 407 |
| Compression Ratio | 8.5 : 1 | 8.5 : 1 | 8.5 : 1 | 8.2 : 1 | 8:1 | 8:1 |
| Max. Power Output(HP/rpm) | 5.5 / 3600 | 6.5 / 3600 | 7.0 / 3600 | 9 / 3600 | 13 / 3600 | 13 / 3600 |
| Max. Torque(N.m/) | 10.8 | 13.2 | 14 | 19.1 | 26.5 | 28 |
| Ignition System | Non-contact transistorized ignition (T.C.I) | |||||
| Starting System | Recoil/Electric | |||||
| Air Cleaner | Semi-dry, oil bath, dual, double silent and cyclone type | |||||
| Fuel Tank(L) | 3.6 | 3.6 | 3.6 | 6 | 6.5 | 6.5 |
| Oil Capacity(L) | 0.6 | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 |
| Fuel Consumption(g/kw-hour) | ≤395 | ≤374 | ||||
| Dimension(L x W x H)mm | 400 x 330 x 340 | 495x 420 x 505 | ||||
| G.W/NW(Kg) | 16/15 | 28/26 | 35/33 | 36/34 | ||
| Container quantity 20GP | 630sets | 275sets | ||||
| Container quantity 40HQ | 1050sets | 690sets | ||||
About US
TAIZHOU NEWLAND MACHINERY CO.,LTD here, exports gasoline generator, diesel generator, pumps, engines, gasoline high pressure washer,air compressor, etc, based on over ten years’s export experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure Newland to become best choice for all customers.
Company Show
Workshop
Spare parts Testing
Production
Product Testing
Warehouse
Loading
1.Q:How about guarantee?
A: within 1year after goods is discharged in the destination.
We will suply the consumables if it broken under normal using.
For example, fuel cock,spark plug,recoil starter,etc.
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q:Is it all right to make customer brand name?
A:If your brand already registed in China and it belong to your company.It is ok we can accept it and do it.
More than 500sets can make color carton.
