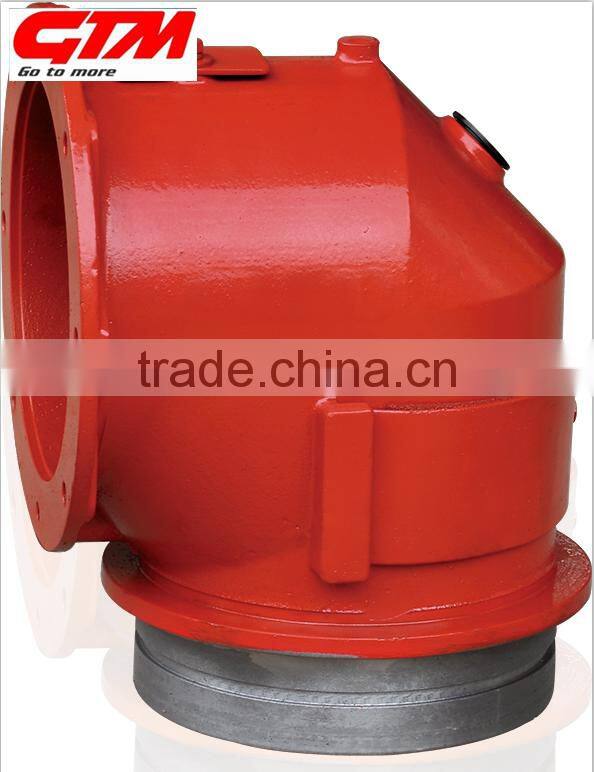

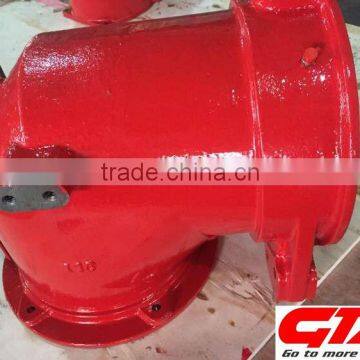

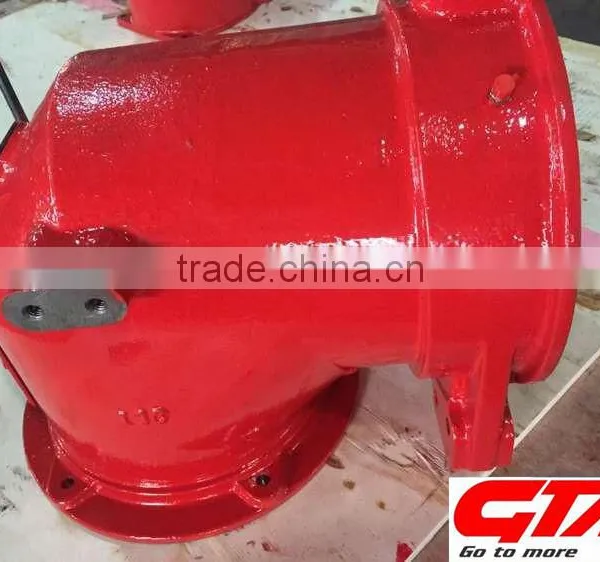

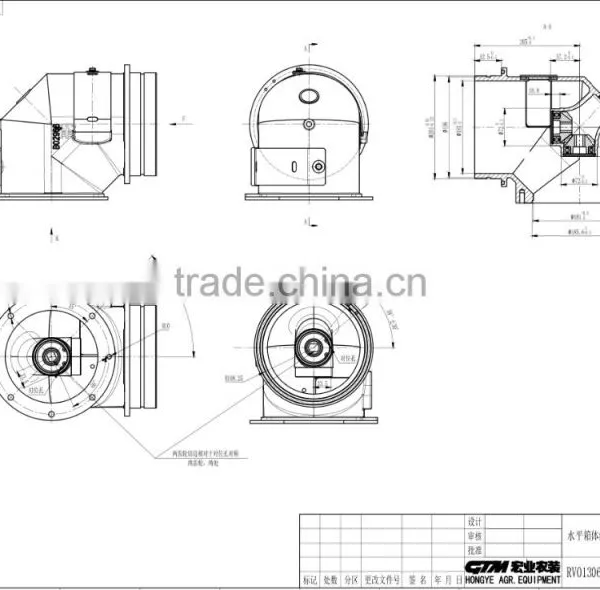

Help CenterCustom Made Vertical to Horizontal Gearbox
Related Products
-
1 to 1 Ratio Combine Harvester GearboxUS$ 50 - 150MOQ: 50 Sets -
ISO9001 Certified Bevel GearboxUS$ 76 - 96MOQ: 50 Sets
-
Customized Harvester Gearbox for Agricultural MachineUS$ 76 - 96MOQ: 50 Sets
-
China Manufacturer Speed Reducer GearboxUS$ 76 - 96MOQ: 50 Sets
-
Low MOQ Agricultural GearboxUS$ 76 - 96MOQ: 50 Sets
Product details

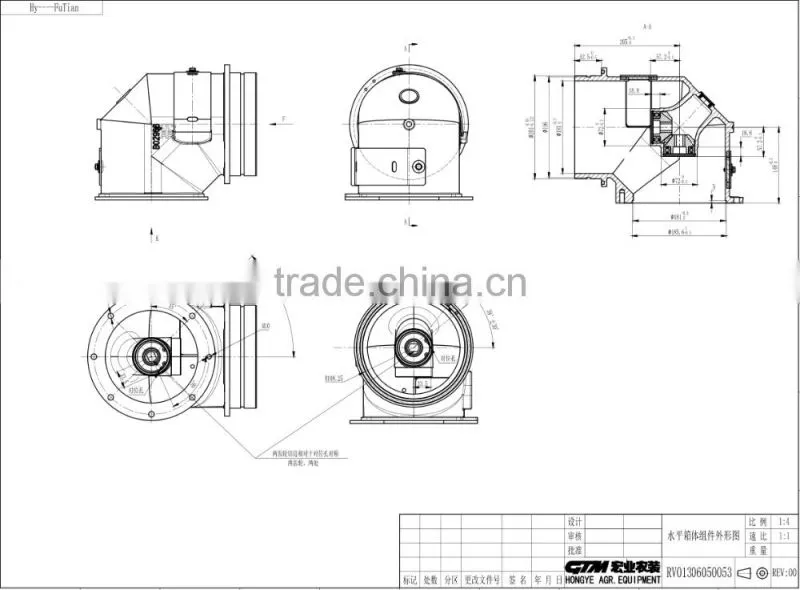

| Model | RV01306050053 |
| Weight | 16.5kg |
| Ratio | 1:1 |
| Housing material | QT450-10 |
| Gear material | 20CrMnTi |
| Input Speed | 850rpm |
| Noise | 80db at 1meter |
| Bolt torque | 16-26NM |
| Color | customized |
| Backlash | 0.15-0.25 |
| Product Keywords | vertical to horizontal gearbox |
| Type | Ratio | Input rpm | Output rpm | Output Torque | Power |
| RV01306050053 | 1:1 | 850rpm | 850rpm | 160NM | 20HP |
Product feature:
1) Transmission ratio: Different ratio as customized.
2) Professional: Professional QC department and inspection equipment to control dimension and backlash and noise well.
3) ODM & OEM: The technology Dpt. can make design the gearbox and develop new craft according to customer's requirement.
4) Warranty period: One and half years to two years.
5) Experience: 20 years experience, safe, reliable, economical and durable.
6) Packing and Delivery control: All of our workers are well trained to guarantee high quality of our gearboxes and 100% products are inspected before delivery.
We promise to supply you perfect design, professional quality control, competitive prices and excellent after-services.
Company feature:
GTM has passed the ISO9001:2008 international quality system certification, ISO14001:2004 environmental management system certification and Quality Austria ISO/TS 16949:2009 quality management system certification, has won numerous customers' trust and support.

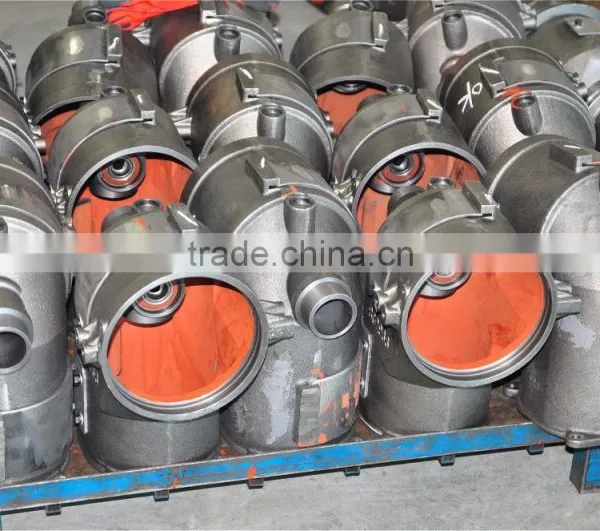

Factory manufacturing grain transporation gearbox
RG series agricultural rotary lawn mower gearbox
Long life-span agricultural short harvester reversing gearbox
agricultural grain auger gearbox with shafting fork
